Parle N 100 Gigabit Ethernet Port Expander for ABC 2500/ VBC 2500

« return to previous page

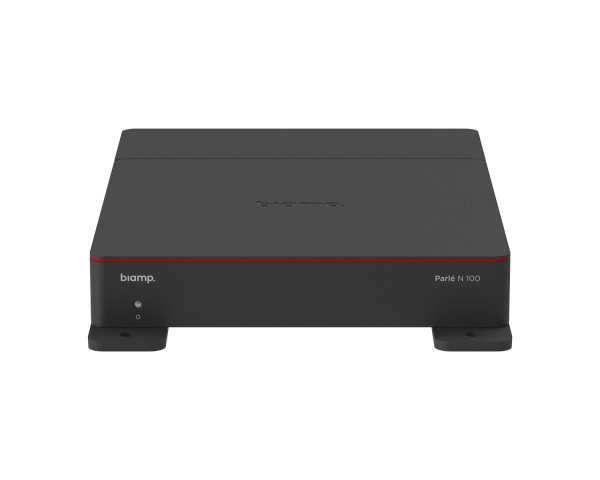

Biamp Parle N 100 Gigabit Ethernet Port Expander for ABC 2500/ VBC 2500 - Main Image
Price:
RRP: £501.60 inc VAT
Code:
BIAPARLEN100
Manufacturer Code:
913.1978.900
Brand:
Biamp

Quantity required:

Main Features

  • Gigabit Ethernet port for network connectivity
  • SageVue or web based monitoring/administration of Parlé N 100 and connected room peripherals
  • Allows firmware updates on connected Biamp devices
  • USB 3.0 Type-C port provides power and updates for the Parlé bar(USB-C port)
  • USB Ports allow connection of UC compute or BYOM laptops, with passthrough to other peripherals
  • For use with the Parlé ABC 2500/2500a, VBC 2500/2500a audio and video conferencing bars, as well as the Vidi 250 camera
Share:

Parle N 100 Gigabit Ethernet Port Expander for ABC 2500 / VBC 2500

The Parlé N 100 is an easy-to-use network adapter and port expander designed for use with the Parlé ABC 2500/2500a, VBC 2500/2500a audio and video conferencing bars, as well as the Vidi 250 camera.  The N 100 adds network connectivity and multiple USB ports.  Using an ethernet port and SageVue software, the Parlé N 100 port expander enables device monitoring, firmware updates, and administration of the Parlé conferencing bars and Vidi 250 camera.  The USB 3.0 connection to the conferencing bars provides sufficient PD power for the bars to operate, eliminating the need for an additional power adapter.  Multiple USB ports enable connectivity with a UC Compute or BYOM laptop, as well as room peripherals.  The design makes it easy to mount behind the display using a mounting plate that has cable management features and a protective cover.

The N 100 provides simple connectivity with no drivers required. It is SageVue compatible, offers passthrough to other Biamp AV solutions, and enables firmware updates on connected devices. The Parlé N 100 also includes extra USB ports to allow passthrough between UC compute or BYOM laptops, and microphones, touchscreens, and cameras with up to 4K camera support.

Product Features

  • Gigabit Ethernet port for network connectivity
  • SageVue or web based monitoring/administration of Parlé N 100 and connected room peripherals
  • Allows firmware updates on connected Biamp devices
  • USB 3.0 Type-C port provides power and updates for the Parlé bar(USB-C port)
  • USB Ports allow connection of UC compute or BYOM laptops, with passthrough to other peripherals
  • For use with the Parlé ABC 2500/2500a, VBC 2500/2500a audio and video conferencing bars, as well as the Vidi 250 camera

Product Specifications

  • UC/Laptop port: 1 x USB 3.0 Type-B
  • Room A/V ports:
    • 2 x USB 3.0 Type-A
    • 1 x USB 3.0 Type-C
  • Network port:  RJ 45 Network Gigabit Ethernet (LAN)
  • Power:  1 x 24V/3.75A with lock connector
  • Overall Dimensions
    • Height:  1.47 inches (37.3 mm)
    • Width:  8.11 inches (206 mm)
    • Depth:  8.11 inches (206 mm)
    • Weight:  1.9 lbs (0.86kg)
  • Power Consumption:  100-240VAC 50/60Hz: < 150W
  • Environmental
    • Ambient Operating
    • Temperature Range:  32-104° F (0–40° C)
    • Relative Humidity:  0–98%, non-condensing
    • Altitude:  0-6,600 ft (0-2000m) MSL

What's in the Box?

  • 1 x USB 3.0 3’ (1m) Type A to B
  • 1 x External 24V/90W Power adapter and line cord
  • 1 x Mounting plate with cable retention and cover
  • Instruction sheet
