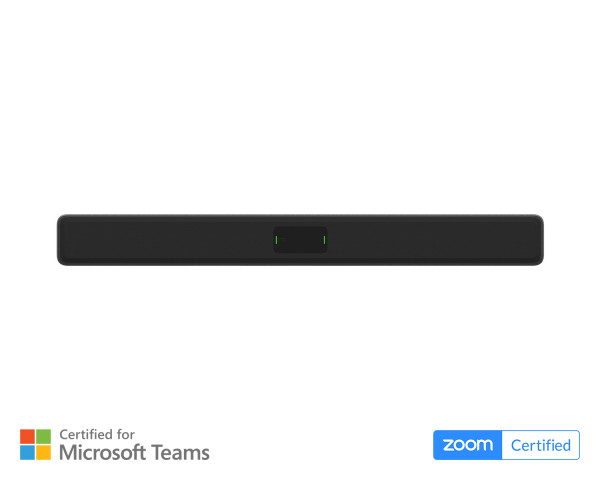

Parle ABC 2500 Conferencing Audio Bar 2x Speakers / 27-Mic Array

Clearance

Biamp Parle ABC 2500 Conferencing Audio Bar 2x Speakers / 27-Mic Array - Main Image

Price:: RRP: £2,200.80 inc VAT
Code:: BIAABC2500
Manufacturer Code:: 913.0131.900
Brand:: Biamp

Main Features

Beamtracking technology actively tracks and intelligently mixes conversations
Deep learning noise reduction algorithm for clear voice reproduction
Low distortion smart speakers
Biamp Launch for one touch automatic tuning
LED indicators for mute status
Table, wall, and display mount options available

Parlé ABC 2500 is an all-in-one conferencing bar featuring Biamp Audio Intelligence to deliver premium audiovisual experiences for small and medium conference rooms. With integrated AEC and NRD, the ABC 2500 uses a 27-element microphone array and Biamp Beamtracking™ technology to actively track and intelligently mix conversations from around the room. Two smart speakers use distortion compensation and dynamic bass enhancement technology to create room filling audio with superior speech reproduction.

The ABC 2500 is also equipped with Biamp’s groundbreaking Launch feature. With Launch, the acoustic performance of the room is analyzed and optimized at the touch of a button, making it easy to deliver extraordinary experiences consistently across your organization.

Parlé ABC 2500 can be plugged directly into a UC System with a single USB connection or can be paired with a Devio SCR-10 for a BYOD system.

Product Features

Beamtracking technology actively tracks and intelligently mixes conversations
Deep learning noise reduction algorithm for clear voice reproduction
Low distortion smart speakers
Biamp Launch for one touch automatic tuning
LED indicators for mute status
Table, wall, and display mount options available

Product Specifications

Microphones

Microphone Technology: 27-Element Digital Array
Frequency Response (100 Hz - 8 kHz): -10dB
Polar Pattern: Active Beamformed
Pickup Range (25dBA noise floor): > 23 feet (7 m)
SNR (@ 1kHz, 94dB SPL, A-Weighted): 69 dB
Maximum SPL (@ 1kHz, THD < 10%): 130 dB
Indicators:
- Mute Indicator
- (Green/Red/Off LEDs)
Sensitivity (@ 1Pa): > -37dBFS ± 1dB
Microphone Data Rate Output: 48 kHz
Audio Processing: AEC (Acoustic Echo Cancellation)
Noise Reduction: AI filter

Loudspeakers

Frequency Response (57 Hz - 20 kHz): -10 dB
Nominal Beamwidth (H x V): 180° x 180°
Transducers: 2x 2.5 in (60 mm) full range
Rated Maximum SPL (@ 1m):
- 90 dB (continuous)
- 96 dB (peak)
Sensitivity (@ 1m, 2.83V): 84 dB
THD (@ 1kHz): < 0.2%
Nominal Impedance: 4Ω
Continuous Rated Power
(6 dB crest factor, HPF @ 60 Hz): 20W
Sampling Rate: 48 kHz

Other

Interfaces
- USB 3.0: 1x Type C
Power Sources
- USB-C: 60W
- External Power Supply:
  - 100-240VAC 50/60Hz
  - (12VDC, 4.74A)
Overall Dimensions
- Height: 3.9 inches (100 mm)
- Width: 37 inches (940 mm)
- Depth: 2.5 inches (64 mm)
- Weight: 9.6 lbs (4.4 kg)
Environmental
- Operating Temperature: 32 - 104° F (0 - 40° C)
- Humidity: 0-90% (non-condensing)
- Altitude: 0-10,000 ft (0-3000m) MSL
