EasyConnect EC-PK-UNI Cable Box with Impera Echo Plus 8EUB Keypad

« return to previous page

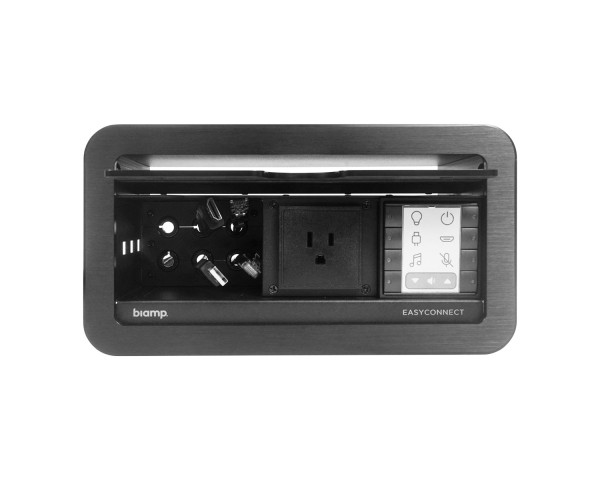

Biamp EasyConnect EC-PK-UNI Cable Box with Impera Echo Plus 8EUB Keypad - Main Image
Biamp EasyConnect EC-PK-UNI Cable Box with Impera Echo Plus 8EUB Keypad - Image 1
Biamp EasyConnect EC-PK-UNI Cable Box with Impera Echo Plus 8EUB Keypad - Image 2
Biamp EasyConnect EC-PK-UNI Cable Box with Impera Echo Plus 8EUB Keypad - Image 3
Price:
RRP: £1,200.00 inc VAT
Code:
BIAECPKUNI
Manufacturer Code:
910.1978.900
Brand:
Biamp

Quantity required:

Main Features

  • Sleek low-profile design complements any office environment
  • Sliding cover with cable pass-through
  • 5 foot (1.5 m) cables pull out and retract easily for storage
  • Cables included: 2x Cat5e Ethernet, HDMI 1.4, USB 2.0 Type-A
  • Two unpopulated cable feed-throughs allow for up to six cables
  • 8-button programmable control pad for room control
Share:

EasyConnect EC-PK-UNI Cable Box with Impera Echo Plus 8EUB Keypad

The EasyConnect EC-PK series are tabletop cable management solutions designed to provide easy connectivity for conference room users. The sleek box mounts into the table, neatly storing Ethernet, HDMI, and USB cables for easy access. The EC-PK series adds one AC power receptacle and a programmable 8-button AV control pad that provides a simple and intuitive interface for presentation spaces, learning environments, and conference rooms, and can support a wide range of equipment. EasyConnect EC-PK customizes to your needs, adding efficiency and style to any meeting space.

The EC-PK series include the 8-button Impera Echo Plus programmable control pad (model 8EUB), and integral 12VDC power supply.

Product Features

  • Sleek low-profile design complements any office environment
  • Sliding cover with cable pass-through
  • 5 foot (1.5 m) cables pull out and retract easily for storage
  • Cables included: 2x Cat5e Ethernet, HDMI 1.4, USB 2.0 Type-A
  • Two unpopulated cable feed-throughs allow for up to six cables
  • 8-button programmable control pad for room control
  • Choice of AC mains power receptacle
  • 5-year warranty

Control Pad Key Features

  • Supports up to 8 software-configurable buttons
  • Includes on-board controller; no external processor required
  • Controls up to 2 third party devices over Ethernet
  • 1 bi-directional RS-232/IR port for third party control with feedback
  • 1 uni-directional RS-232/IR port for third party control
  • 3 GPIO ports
  • Mini USB connection for system configuration and maintenance
  • Supports email notifications for lamp/filter hours and warnings
  • Expansion Bus supports up to 2 additional devices (keypads and port expanders)

Product Specifications

  • Top Plate Dimensions
    • Width: 9.9 inches (251 mm)
    • Depth: 5.3 inches (135 mm)
  • Overall Dimensions
    • Height: 4 inches (102 mm)
    • Width: 8.6 inches (218 mm)
    • Depth: 3.5 inches (89 mm)
    • Weight: 5.5 lbs (2.5 kg)
  • Environmental
    • Ambient Operating
    • Temperature Range: 32 - 86° F (0 – 30° C)
    • Humidity: 10-90% relative humidity (non-condensing)
    • Altitude: 0-6,600 ft (0-2000m) MSL
  • Compliance:
    • CE Marked (Europe)
    • RoHS Directive (Europe)
