DM41 3.5" 2-Way Compact Outdoor Loudspeaker 15W 100V IP55 Black

« return to previous page

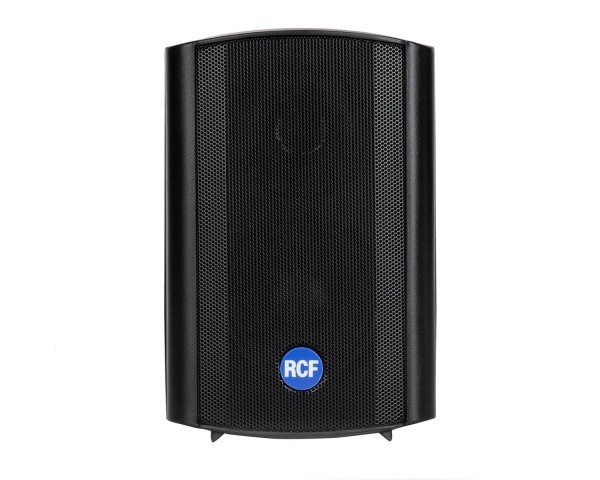

RCF DM41 3.5 2-Way Compact Outdoor Loudspeaker 15W 100V IP55 Black - Main Image
RCF DM41 3.5 2-Way Compact Outdoor Loudspeaker 15W 100V IP55 Black - Image 1
RCF DM41 3.5 2-Way Compact Outdoor Loudspeaker 15W 100V IP55 Black - Image 2
RCF DM41 3.5 2-Way Compact Outdoor Loudspeaker 15W 100V IP55 Black - Image 3
Price:
RRP: £73.20 inc VAT
Code:
RCFDM41B
Manufacturer Code:
13000387
Brand:
RCF

Quantity required:

Main Features

  • 3.5" woofer with 1'' dome tweeter
  • Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
  • 87 dB sensitivity
  • Colour: black RAL 9005
  • Plastic body UL 94 V0, steel grille
  • Protection grade: IP 55
Share:

DM41 3.5" 2-Way IP55 Rated Outdoor Speaker - Black

DM 41 is a compact two way speaker designed for constant voltage systems. The speaker provide natural, smooth sound reproduction ideal for use in business music systems and indoor/outdoor background music applications. Connections to the loudspeaker line are made by using the two wire cable coming out from the loudspeaker rear side. The enclosure includes a protective perforated grille and an accessory for the wall mounting.

Product Features

  • 3.5" woofer with 1'' dome tweeter
  • Power selectable (100 V): 15 W – 7.5 W – 5 W – 2.5 W – 1.25 W
  • 87 dB sensitivity
  • Colour: white RAL 9002 and black RAL 9005
  • Plastic body UL 94 V0, steel grille
  • Protection grade: IP 55

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB): 100 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 102 dB
  • Horizontal coverage angle: 180°
  • Vertical coverage angle: 170°
  • System Sensitivity: 87 dB

Power section

  • Nominal Impedance (ohm): 8 ohm
  • Power Handling: 15 W RMS
  • Peak Power Handling: 60 W PEAK
  • Recommended Amplifier: 30 W
  • Crossover Frequencies: 2.5 Hz

Transducers

  • Dome Tweeter: 1.0''
  • Woofer: 3.5''

Input/Output section

  • Input connectors: Cable
  • Output connectors: Cable
  • Constant Voltage Transformer: 100 V
  • Power selection 1: 15 W - 667 ohm
  • Power selection 2: 7.5 W - 1333 ohm
  • Power selection 3: 5 W - 2000 ohm
  • Power selection 4: 2.5 W - 4000 ohm
  • Power selection 5: 1.25 W - 8000 ohm

Standard compliance

  • IP protection grade: IP 55
  • CE marking: Yes

Physical specifications

  • Cabinet/Case Material: Plastic
  • Hardware: Aluminium U bracket
  • Grille: Aluminium
  • Colour: Black - RAL 9005

Size

  • Height: 197 mm / 7.76 inches
  • Width: 130 mm / 5.12 inches
  • Depth: 115 mm / 4.53 inches
  • Weight: 1.7 kg / 3.75 lbs

Shipping information

  • Package Height: 260 mm / 10.24 inches
  • Package Width: 180 mm / 7.09 inches
  • Package Depth: 175 mm / 6.89 inches
  • Package Weight: 1.96 kg / 4.32 lbs
