MR 40TW 4" Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White

« return to previous page
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Main Image
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 1
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 2
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 3
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 4
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 5
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 6
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 7
RCF MR 40TW 4 Monitor Series 2-Way Speaker IP55 40W 100V/8Ω White - Image 8
Price:
RRP: £132.00 inc VAT
Code:
RCFMR40TW
Manufacturer Code:
13100037
Brand:
RCF

Quantity required:

Main Features

  • 40 W RMS power handling
  • 108 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 4" woofer (1’’ v.c.)
  • 1 x 1" neodymium dome tweeter (0.8’’ v.c.)
Share:

MR 40TW Two-Way Passive Speaker - White

MR 40TW is a bass-reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make MR 40TW the perfect speaker for listening in the most demanding applications.

Product Features

  • 40 W RMS power handling
  • 108 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 4" woofer (1’’ v.c.)
  • 1 x 1" neodymium dome tweeter (0.8’’ v.c.)
  • Self-extinguishing plastic cabinet
  • Wall mount accessory included

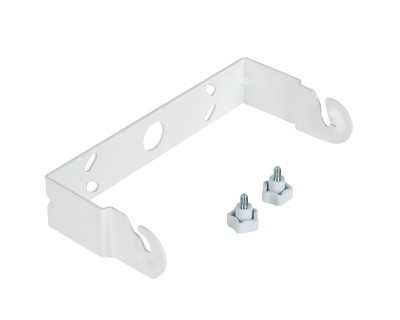

  • M6 inserts available for optional U bracket
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • Finish: Black or White

Product Specifications

Acoustical Specifications

  • Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 108 dB
  • Horizontal coverage angle: 110°
  • Vertical coverage angle: 100°
  • Directivity index Q: 7
  • System Sensitivity: 86 dB

Power Section

  • Nominal Impedance (ohm): 8 ohm
  • Power Handling: 40 W RMS
  • Peak Power Handling: 160 W PEAK
  • Recommended Amplifier: 80 W
  • Protections: Bulb lamp
  • Crossover Frequencies: 3000 Hz

Transducers

  • Dome Tweeter: 1.0'' neo, 0.8'' v.c
  • Nominal Impedance (ohm): 8 ohm
  • Input Power Rating: 10 W AES, 20 W PROGRAM POWER
  • Sensitivity: 93 dB, 1W @ 1m
  • Woofer: 4.0'', 1.0'' v.c
  • Nominal Impedance (ohm): 8 ohm
  • Input Power Rating: 40 W AES, 80 W PROGRAM POWER
  • Sensitivity: 86 dB, 1W @ 1m

Input/Output section

  • Input connectors: Euroblock
  • Output connectors: Euroblock
  • Constant Voltage Transformer: 70/100 V
  • Power selection 1: 20 W - 500 ohm
  • Power selection 2: 10 W - 1000 ohm
  • Power selection 3: 5 W - 2000 ohm
  • Power selection 4: 2.5 W - 4000 ohm

Standard Compliance

  • CE marking: Yes

Physical Specifications

  • Cabinet/Case Material: Plastic
  • Hardware: Wall mount bracket
  • Grille: Steel
  • Colour:
    • Black - RAL 9005
    • White – RAL 9003

Size

  • Height: 216 mm / 8.5 inches
  • Width: 154 mm / 6.06 inches
  • Depth: 135 mm / 5.31 inches
  • Weight: 2.3 kg / 5.07 lbs

Shipping information

  • Package Height: 285 mm / 11.22 inches
  • Package Width: 400 mm / 15.75 inches
  • Package Depth: 235 mm / 9.25 inches
  • Package Weight: 5.5 kg / 12.13 lbs
