TU-651M 50W 100V Line Compression Driver Excluding Horn Flare

« return to previous page

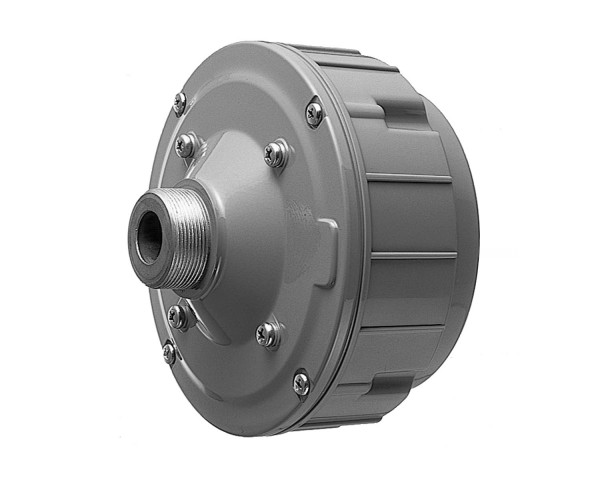

TOA TU-651M 50W 100V Line Compression Driver Excluding Horn Flare - Main Image
Price:
RRP: £84.00 inc VAT
Code:
TOATU651M
Manufacturer Code:
TU-651M
Brand:
TOA

Quantity required:

Main Features

  • High-impedance (70 V / 100 V lines) model
  • Power rating: 50 W
  • Frequency Response: 150 Hz – 6 kHz
  • Input impedance selector on high-impedance models facilitates input impedance matching from the outside
  • IP65 certified weatherproof construction
  • Excluding Horn Flare
Share:

TU-651M 50W 100V Line Compression Driver Excluding Horn Flare

The TU-651M is a highly intelligible driver unit suited to public address announcement applications. Use the driver unit in combination with a suitable horn (optional). Its powder-coated finish and stainless steel screws ensure the unit's weatherproof capability.

Product Features

  • High-impedance (70 V / 100 V lines) model
  • Power rating: 50 W
  • Frequency Response: 150 Hz – 6 kHz
  • Input impedance selector on high-impedance models facilitates input impedance matching from the outside
  • IP65 certified weatherproof construction

Product Specifications

General

  • Frequency response:  150 Hz - 6 kHz
  • Sensitivity (1 W, 1 m):  110 dB (with TH-650, TH-660)
  • Rated input (High Impedance):  50 W
  • Tappings
    • 100V LINE: 200Ω (50W), 330Ω (30W), 670Ω (15W)
    • 70V LINE: 100Ω (50W), 200Ω (25W), 330Ω (15W), 670Ω (7.5W
