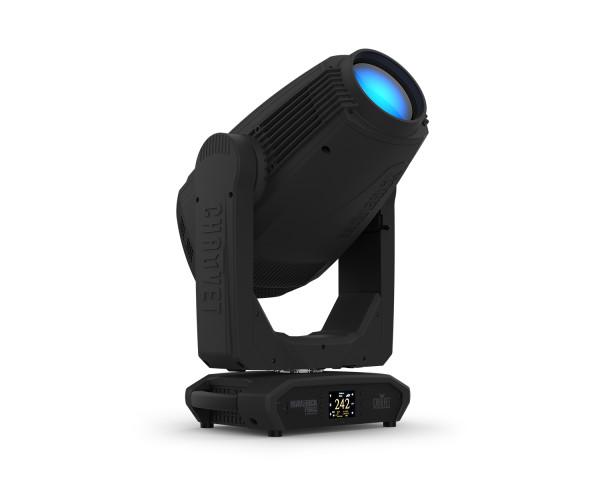

Maverick Force 3 Profile LED Engine CMY+CTO Colour Mixing 915W

Product Features

• Full featured 915 W LED yoke profile fixture including CMY+CTO colour mixing, a four blade framing shutter system with rotation, a colour wheel, a CRI filter, animation wheel, a 10:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• CRI and CTB filters on colour wheel for added flexibility
• Independently layerable five facet linear and five facet round prisms for increased prism options
• One rotating and one static gobo wheel for dynamic texture possibilities
• Independent light and medium frosts for beam control
• + or – 60 degree rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 4.9° to 53.9° zoom angle for variable beam sizes
• Three menu presets and preset cross load for decreased shop setup time
• True 1 compatible power input
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation.
• Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.

Product Specifications

Optical

• Light Source:  1 LEDs (CW) 915 W, (4.3 A), 7500 K, 50,000 hours life expectancy
• Colour Temperature (at full):  7228 K
• CRI:  70.9
• CRI with CRI Filter:  89.4
• Front Lens Diameter:  65 mm
• Beam Angle:  4.9 ° to 42.8°
• Field Angle:  5.8° to 49.4°
• Cutoff Angle 6.5° to 53.6°
• Zoom Range:  4.9° to 53.9°
• Lumens – Source:  62,000
• Lumens – Output:  40,906
• Illuminance (4.9°) 130,582 lux @ 5 m
• Illuminance (53.9°) 3,792 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:  6 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
• Colours:  CMY flags
• Gobos (1):  7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll avariable speeds
• Gobos (2):  9 + open glass, static, continuous scroll at variable speeds
• Gobo Size:  Gobo Wheel 1 (rotating):  27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
• Gobo Size:  Gobo Wheel 2 (static):  27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
• Framing Shutters:  4 blades, each with dual axis movement.
• Framing Shutter rotation:  +/- 60° rotation.
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorized
• Focus:  Motorized
• Frost:  Motorized
• Iris:  Motorized
• Prism:  5 Linear Facets, motorized, rotating
• Prism:  5 Circular Facets, motorized, rotating
• Strobe Rate:  0 to 26 Hz
• Move-in-Black:  Yes
• Dim Curves:  4

Connections

• Power Connection:  Edison plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Data Connectors:  3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels:  37 or 53
• Art-Net Channels:  37 or 53
• Modes/Personalities:  2 personalities (37, 53)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:  1320 W, 11.29 A @ 120 V, 60 Hz
• Power and Current:  1270 W, 6.32 A @ 208 V, 60 Hz
• Power and Current:  1260 W, 5.76 A @ 230 V, 50 Hz
• Fuse Size:  F20 A, 250 V

Physical & Dimensions

• Dimensions:  16.73 x 10.98 x 30.47 in (425 x 279 x 774 mm)
• Weight:  84.2 lb (38.2 kg)
• Exterior Colour:  Black
• Housing Material:  High-impact flame-retardant polymer

What's in the Box?

• Maverick Force 3 Profile
• Seetronic Powerkon IP65 power cord
• Omega bracket with mounting hardware
