Impera Uniform 8-Button E Ink Control Pad with Ethernet White

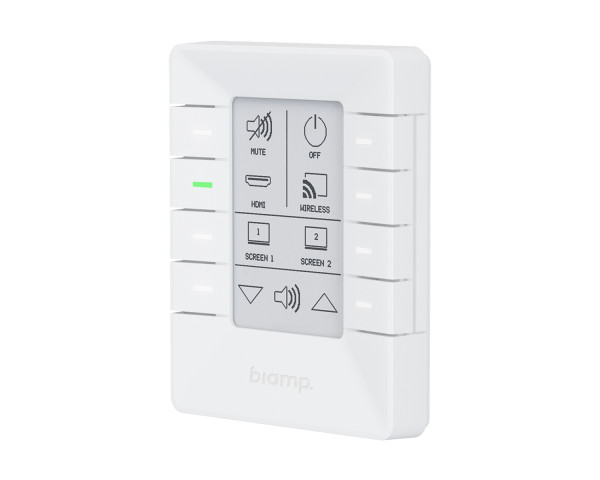

Biamp Impera Uniform 8-Button E Ink Control Pad with Ethernet White - Main Image

Price:: RRP: £660.00 inc VAT
Code:: BIAUNIFORM
Manufacturer Code:: 910.1870.900
Brand:: Biamp

Main Features

Supports up to 8 software-configurable buttons
2.7-inch high contrast E Ink display
Includes on-board controller; no external processor required
1 bi-directional RS-232 port for third party control with feedback
2 uni-directional RS-232 ports for third party control
3 GPIO ports

The Impera Uniform control pad is a compact, highly customizable AV control suitable for wall-mounting. It provides a simple and intuitive interface for presentation spaces, learning environments, and conference rooms, regardless of the type of equipment installed.

Equipped with a software configurable E Ink display, the Uniform can be quickly programmed and customized within Project Designer as the needs of the room change over time, making the Uniform a very flexible and cost effective control solution.

Product Features

Supports up to 8 software-configurable buttons
2.7-inch high contrast E Ink display
Includes on-board controller; no external processor required
1 bi-directional RS-232 port for third party control with feedback
2 uni-directional RS-232 ports for third party control
3 GPIO ports
Supports email notifications for lamp/filter hours and warnings
Mini USB connection for system configuration and maintenance
Expansion Bus supports up to 8 additional devices (keypads and port expanders)
PoE powered (IEEE 802.3at Class 1, 4W) for simple, single CAT5e/CAT6 cable installation
Covered by Biamp Systems’ five-year warranty

Product Specifications

General

Display
- Display Type: High-Contrast 2.7” E Ink display
- Resolution: 264 x 172 pixels
- Colour: white
Control
- Button Quantity: 8
- Button Type: Mechanical
- LED Indicators: Multi-colour
GPIO
- I/O Quantity: 3
- Sense Low: < 1 VDC
- Sense High: > 4 VDC
- Output Type: Open drain
- Max Voltage: 24 VDC
- Max Current: 0.5 A
RS-232 / IR
- Number of Ports:
- 1 (bidirectional)
- 2 (undirectional)
- Baud Rate: 1200 – 115200 bit/sec
- Data Bits: 7, 8
- Parity: Even, Odd, None
- Stop Bits: 1, 1.5, 2
- IR Frequency Range: 381 Hz to 500 kHz
Expansion Bus
- Output Power: 12 V DC (0.3 A)
- Number of Devices Supported: 8
Ethernet
- Port Speed: 10/100 Mbps
- Autosense: Yes
- Number of Devices Supported: 2
Power: PoE (IEEE 802.3at Class 1, 4W)
Power Consumption: < 4W Max
Included Accessories: In-wall mounting bracket Mounting screws and wall plugs
Environmental
- Ambient Operating Temperature Range: 32 - 104° F (0 – 40° C)
- Humidity: 10-90% relative humidity (non-condensing)
- Altitude: 0-6,600 ft (0-2000m) MSL
