Impera Echo Plus 8-Button Control Pad with Ethernet White

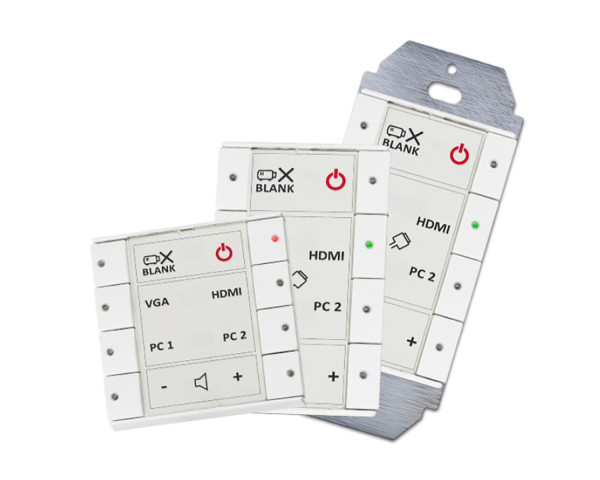

Biamp Impera Echo Plus 8-Button Control Pad with Ethernet White - Main Image

Price:: RRP: £600.00 inc VAT
Code:: BIAECHOPW
Manufacturer Code:: 913.2259.900
Brand:: Biamp

Main Features

Supports up to 8 software-configurable buttons
Includes on-board controller; no external processor required
Controls up to 2 third party devices over Ethernet
1 bi-directional RS-232/IR port for third party control with feedback
1 uni-directional RS-232/IR port for third party control
3 GPIO ports

Impera Echo Plus 8-Button Control Pad with Ethernet White - 1 Gang

The Impera Echo Plus control pad is a compact, highly customizable AV control suitable for wall-mounting or installation in the EasyConnect tabletop cable management solution. It provides a simple and intuitive interface for presentation spaces, learning environments, and conference rooms, regardless of the type of equipment installed.

The Echo Plus can be quickly programmed and customized within Project Designer as the needs of the room change over time, making it a very flexible and cost effective control solution.

Product Features

Supports up to 8 software-configurable buttons
Includes on-board controller; no external processor required
Controls up to 2 third party devices over Ethernet
1 bi-directional RS-232/IR port for third party control with feedback
1 uni-directional RS-232/IR port for third party control
3 GPIO ports
Mini USB connection for system configuration and maintenance
Supports email notifications for lamp/filter hours and warnings
Expansion Bus supports up to 2 additional devices (keypads and port expanders)
Covered by Biamp Systems’ five-year warranty

Product Specifications

General

Control
- Button Quantity: 8
- Button Type: Mechanical
- LED Indicators: Multi-color
Ethernet
- Port Speed: 10/100 Mbps
- Autosense: Yes
- Number of Devices Supported: 2
GPIO
- I/O Quantity: 3
- Sense Low: < 1 VDC
- Sense High: > 4 VDC
- Output Type: Open drain
- Max Voltage: 24 VDC
- Max Current: 0.5 A
RS-232 / IR
- Number of Ports:
  - 1 (bidirectional)
  - 1 (undirectional)
- Baud Rate: 1200 – 115200 bit/sec
- Data Bits: 7, 8
- Parity: Even, Odd, None
- Stop Bits: 1, 1.5, 2
- IR Frequency Range: 381 Hz to 500 kHz
Expansion Bus
- Output Power: 12 V DC (0.3 A)
- Number of Devices Supported: 2
Power: 12V DC 5W
Environmental
- Ambient Operating Temperature Range: 32 - 104° F (0 – 40° C)
- Humidity: 10-90% relative humidity (non-condensing)
- Altitude: 0-6,600 ft (0-2000m) MSL
