XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz

« return to previous page
Clearance
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Main Image
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 1
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 2
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 3
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 4
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 5
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 6
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 7
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 8
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 9
Sennheiser XSWD Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz - Image 10
Price:
RRP: £454.80 inc VAT
Code:
SENXSWDPES
Manufacturer Code:
508490
Brand:
Sennheiser

Quantity required:

Main Features

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Mute from either transmitter or receiver
Share:

Sennheiser XSW-D Portable ENG Set ME2II / XLR Tx and 3.5mm Tx and Rx 2.4GHz

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with XLR and 3.5mm (1/8”) transmitters, this elegant solution makes capturing dialogue on a DSLR easier than ever before while maintaining a reliable connection.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver

Product Specifications

  • Dimensions:
    • XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
    • XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
    • XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
    • XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
    • XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
    • XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
    • XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
  • THD, total harmonic distortion:  < 0.1 %
  • Charging time:  typ. 3 h
  • Audio output:  max. 12 dBu
  • Operating temperature:  -10 °C to +55 °C (14 °F to 131 °F)
  • Signal-to-noise ratio:  ≥ 106 dB
  • Operating time:  up to 5 h
  • Modulation:  GFSK with TDMA
  • Battery Specification:  Li-Ion
  • Capacity:  850 mAh
  • Codecs:  aptX® Live
  • Frequency range:  2,400 - 2,483.5MHz
  • Max. Input voltage:  typ. 5.0 V
  • Transmission power:  max. 10 mW
  • Voltage:  3.7 V
  • Operating relative humidity:  95 % (non-condensing)
  • Latency:  < 4 ms
  • Temperature Range:  0 °C - 60 °C (32 °F - 140 °F)
  • Audio frequency response:
    • 3.5 mm Jack/XLR: 80 - 18,000 Hz
    • 6.3 mm Jack: 10 - 18,000 Hz

What's in the Box?

  • XSW-D 3.5mm (1/8”) transmitter
  • XSW-D XLR Female transmitter
  • XSW-D 3.5mm (1/8”) receiver
  • ME2-II clip-on lavalier mic
  • 3.5mm (1/8") coiled cable
  • Cold shoe mount

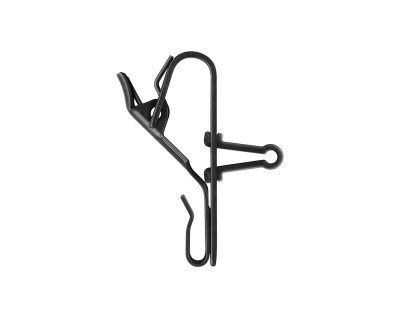

  • Belt clip
  • USB-A to USB-C charging cable

Accessories

  • XSW-D MINI JACK TX
  • XSW-D XLR FEMALE TX
  • XSW-D MINI JACK RX
  • ME 2-N
  • CL 35
  • XSW-D BELTPACK CLIP
  • XSW-D HOTSHOE MOUNT
