XSW2-835 **4 PACK** E Handheld Mic System with E835 CH70

« return to previous page

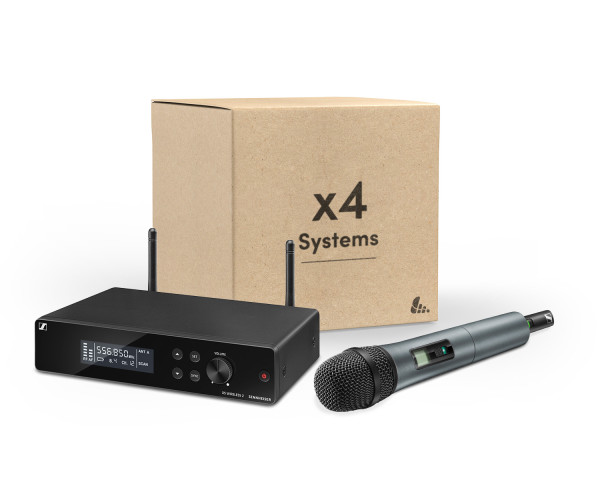

Sennheiser XSW2-835 **4 PACK** E Handheld Mic System with E835 CH70 - Main Image
Sennheiser XSW2-835 **4 PACK** E Handheld Mic System with E835 CH70 - Image 1
Sennheiser XSW2-835 **4 PACK** E Handheld Mic System with E835 CH70 - Image 2
Sennheiser XSW2-835 **4 PACK** E Handheld Mic System with E835 CH70 - Image 3
Price:
RRP: £1,915.20 inc VAT
Code:
SENXSW28354P
Manufacturer Code:
507147/4 - LESURETEC SKU
Brand:
Sennheiser

Quantity required:

Main Features

  • 4 Pack (4 x EM-XSW 2 Receivers / 4 x SKM 835-XSW Transmitters)
  • Excellent sound featuring Sennheiser's renowned evolution mic capsules
  • True diversity receiver with metal housing
  • External detachable antennas
  • Automatic frequency management and synchronization
  • Please consider your environment before installing E Band (channel 70) as exceeding 4 systems in the same locality is not advisable for most applications
Share:

XSW2-835 E Handheld Mic System with E835 CH70 *4 PACK*

Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.

Please consider your environment before installing E Band (channel 70) as exceeding 4 systems in the same locality is not advisable for most applications

Product Features

  • 4 Pack (4 x EM-XSW 2 Receivers / 4 x SKM 835-XSW Transmitters)
  • Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
  • True diversity receiver with metal housing
  • External detachable antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels

Product Specifications

General

  • Microphone: dynamic
  • Frequency response: 50 to 16,000 Hz (–3 dB)
  • THD, total harmonic distortion: ≤ 0.9%
  • Pick-up pattern: cardioid
  • Signal-to-noise ratio: ≥ 103 dBA
  • RF output power: 10 mW
  • Switching bandwidth: up to 24 MHz
  • Operating time: approx. 10 hrs
  • Modulation: wideband FM
  • Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Frequency: 8 frequency banks, each with up to 12 factory-preset channels
  • Frequency range
    • A: 548-572 MHz
    • GB: 606-630 MHz
    • B: 614-638 MHz
    • C: 766-790 MHz
    • D: 794-806 MHz
    • E: 821-832 MHz, 863-865 MHz
    • K: 925-937.5 MHz
  • Sensitivity: < 3 μV at 52 dB(A)rms S/N
  • Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
  • Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Line: 20 dB, switchable
  • Input sensitivity: 1.5 mV / Pa
  • Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
  • Audio adjustment range: 40 dB, adjustable in 5-dB steps
  • Temperature Range
    • Operation: 0°C to +40°C
    • Storage: –20°C to +70°C
  • Receiver Principle: double superheterodyne
  • Diversity principle: True Diversity

Receiver

  • Dimensions: approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm
  • Weight: approx. 680g
  • Power supply: 12 V DC nom. / 300 mA
  • Materials: Metal, microphone: robust ABS
  • AF frequency response: 50 to 16,000 Hz (–3 dB)

Microphone

  • Dimensions: approx. 260 x 50 mm
  • Weight: approx. 245g
  • Materials: robust ABS
  • Power supply: 2 AA size batteries, 1.5 V
  • AF frequency response: 80-14,000 Hz

What's in the Box?

  • 4 x receiver EM-XSW 2
  • 4 x handheld transmitter SKM 835-XSW
  • 4 x microphone clamp MZQ 1
  • 4 x power supply NT2-3-UK
  • 4 x rackmount kit
  • 4 x pouch
  • User manual
