XSW1-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70

« return to previous page

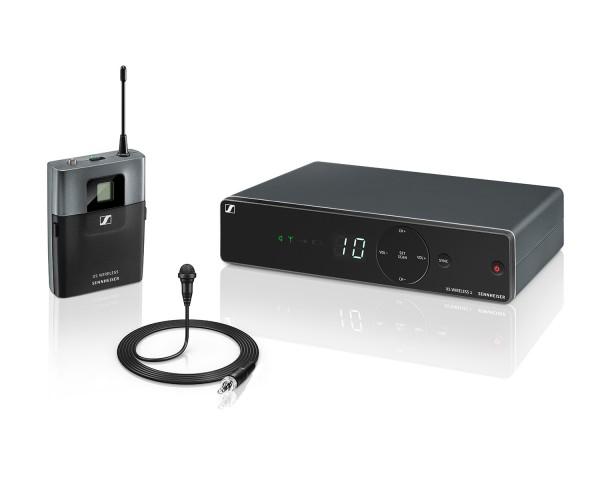

Sennheiser XSW1-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Main Image
Sennheiser XSW1-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 1
Sennheiser XSW1-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 2
Sennheiser XSW1-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 3
Sennheiser XSW1-ME2 E Lapel System with ME2-2 Omni Lapel Mic CH70 - Image 4
Price:
RRP: £394.80 inc VAT
Code:
SENXSW1ME2E
Manufacturer Code:
506984
Brand:
Sennheiser

Quantity required:

Main Features

  • Compact bodypack transmitter, unobstrusive clip-on microphone
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels
Share:

Sennheiser XS Wireless 1 XSW 1-ME2-E Lavalier / Lapel System CH70

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

  • Compact bodypack transmitter, unobstrusive clip-on microphone
  • Antenna-switching diversity reception
  • Integrated antennas
  • Automatic frequency management and synchronization via remote channel for easy setup
  • Selectable UHF frequencies within a large bandwidth
  • Up to 10 compatible channels

Product Specifications

General

  • Microphone:  condenser
  • THD, total harmonic distortion:  ≤ 0.9%
  • Pick-up pattern:  cardioid
  • Signal-to-noise ratio:  ≥ 103 dBA
  • RF output power:  10 mW
  • Switching bandwidth:  up to 24 MHz
  • Operating time:  approx. 10 hrs
  • Modulation:  wideband FM
  • Output voltage:  '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
  • Housing:  rugged ABS housing
  • Diversity reception:  antenna switching diversity via internal antennas
  • Frequency:  8 frequency banks, each with up to 10 factory-preset channels
  • Frequency range:
    • A: 548-572 MHz
    • GB: 606-630 MHz
    • B: 614-638 MHz
    • C: 766-790 MHz
    • D: 794-806 MHz
    • E: 821-832 MHz, 863-865 MHz
    • K: 925-937.5 MHz
  • Sensitivity:  < 3 μV at 52 dB(A)rms S/N
  • SPL for peak deviation:  130 dB
  • Squelch:  adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
  • Synchronization:  2.4 GHz, Low Power OQPSK (only active during synchronization)
  • Input sensitivity:  1.5 mV / Pa
  • Audio adjustment range:  45 dB, adjustable in 5-dB steps
  • Line / Mic level:  20 dB, switchable
  • Temperature Range:  operation: 0°C to +40°C, storage: –20°C to +70°C
  • Receiver Principle:  double superheterodyne

Receivers

  • Dimensions approx.:  200 x 42 x 127 mm
  • Weight approx.:  340g
  • Power supply:  12 V DC nom. / 300 mA
  • AF frequency response:  50 to 16,000 Hz (–3 dB)

Transmitter

  • Dimensions approx. :  71 x 96 x 28 mm
  • Weight approx. :  95g
  • Power supply:  2 AA size batteries, 1.5 V
  • Adjustment Range Transmitter:  0 to -30 dB, adjustable in 10 dB steps

What's in the Box?

  • 1 receiver EM-XSW 1
  • 1 lavalier microphone ME 2-2
  • 1 bodypack transmitter SK-XSW
  • 1 power supply NT2-3-UK
  • 2 AA batteries

Product Video
