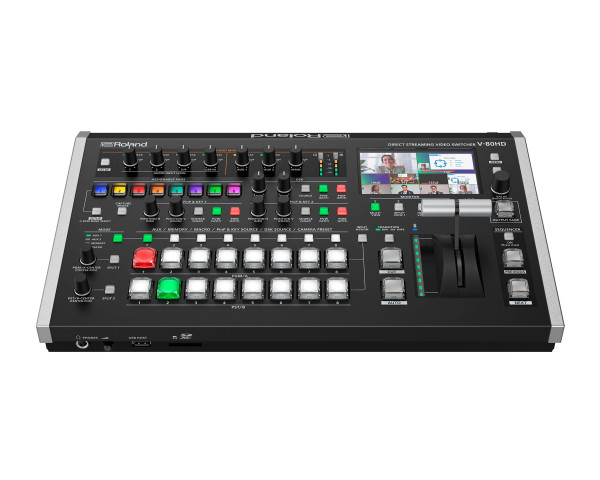

V-80HD Streaming Video Switcher with 28Ch Digital Audio Mixer

Product Features

• Professional eight-channel switcher with a compact footprint and comprehensive features
• Supports a variety of applications, including in-person events, conferences, web streaming, houses of worship, and studio production setups
• Four 3G SDI inputs with frame rate converters
• Four 1080p HDMI inputs, including two 4K inputs with HD downscalers and through outputs
• Seven total outputs include SDI, HDMI, USB-C streaming, and LAN (RTMP/SRT)
• Two 3G SDI and three HDMI outputs plus 10 assignable buses
• 28-channel digital audio mixer and three output buses with effects and processing
• Five-layer video effects engine, including two PinP windows with key composition and DSK
• Easily create stunning titles and motion graphics with the companion Graphics Presenter software for Windows
• 32-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
• Powerful live production automation with sequencing, macros, and scene memories
• Integrated PTZ camera control with simultaneous support for multiple brands and mixed protocols
• Eight assignable pads for controlling up to 64 discreet functions
• Extensive device control with Bluetooth, USB, RS-232, and LAN
• Wireless and wired camera tally support
• Remote control software available for iPad, macOS, and Windows

Product Specifications

VIDEO

• Video Processing:  4:2:2 (Y/Pb/Pr), 8-bit
• Number of Video Channels:  8 channels

Video Input Formats:

• HDMI IN 1--4
  • 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
  • 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
  • 1080/23.98p, 1080/24p
  • 2160/59.94p, 2160/60p, 2160/29.97p, 2160/30p *1, *3
  • 2160/50p, 2160/25p *2, *3
  • 2160/23.98p, 2160/24p *3
  • VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
  • WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
  • FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
  • UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
  • * The refresh rate is the maximum value of each resolution.
  • * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
  • * 1920 x 1200/60 Hz: Reduced blanking
  • * The input interlaced video signal is converted to progressive video signal by internal processing.
  • * The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
  • * HDMI IN 1 support Roland FILL+KEY signal
  • *1 Frame Rate = 59.94 Hz, 60 Hz
  • *2 Frame Rate = 50 Hz
  • *3 Only for HDMI IN 3, 4
• SDI IN 1--4
  • 720/59.94p *1, *3
  • 720/50p *1, *4
  • 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
  • 1080/50i, 1080/50p, 1080/25p *2, *4
  • 1080/23.98p, 1080/24p *2
  • * The input interlaced video signal is converted to progressive video signal by internal processing.
  • *1 System Format = 720p
  • *2 System Format = 1080i or 1080p
  • *3 Frame Rate = 29.97 Hz, 30 Hz, 59.94 Hz, 60 Hz
  • *4 Frame Rate = 25 Hz, 50 Hz

Video Output Formats

• HDMI OUT 1--3, SDI OUT 1--2:
  • 720/59.94p *1, *4
  • 720/60p *1, *5
  • 720/50p *1, *8
  • 1080/59.94i *2, *4
  • 1080/60i *2, *5
  • 1080/50i *2, *8
  • 1080/59.94p *3, *4
  • 1080/60p *3, *5
  • 1080/29.97p *3, *6
  • 1080/30p *3, *7
  • 1080/50p *3, *8
  • 1080/25p *3, *9
  • 1080/23.98p *3, *10
  • 1080/24p *3, *11
  • *1 System Format = 720p
  • *2 System Format = 1080i
  • *3 System Format = 1080p
  • *4 Frame Rate = 59.94 Hz
  • *5 Frame Rate = 60 Hz
  • *6 Frame Rate = 29.97 Hz
  • *7 Frame Rate = 30 Hz
  • *8 Frame Rate = 50 Hz
  • *9 Frame Rate = 25 Hz
  • *10 Frame Rate = 23.98 Hz
  • *11 Frame Rate = 24 Hz
• USB STREAM:
  • 1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
  • 1080/60p, 720/60p, 640 x 480/60p *2
  • 1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
  • 1080/30p, 720/30p, 640 x 480/30p *4
  • 1080/50p, 720/50p, 640 x 480/50p *5
  • 1080/25p, 720/25p､640 x 480/25p *6
  • 1080/23.98p, 720/23.98p､640 x 480/23.98p *7
  • 1080/24p, 720/24p､640 x 480/24p *8
  • * Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
  • *1 Frame Rate(USB Out) = 59.94 Hz
  • *2 Frame Rate(USB Out) = 60 Hz
  • *3 Frame Rate(USB Out) = 29.97 Hz
  • *4 Frame Rate(USB Out) = 30 Hz
  • *5 Frame Rate(USB Out) = 50 Hz
  • *6 Frame Rate(USB Out) = 25 Hz
  • *7 Frame Rate(USB Out) = 23.98 Hz
  • *8 Frame Rate(USB Out) = 24 Hz
• DIRECT STREAM:
  • 720/59.94p *1, *3
  • 720/60p *1, *4
  • 720/29.97p *1, *5
  • 720/30p *1, *6
  • 720/50p *1, *7
  • 720/25p *1, *8
  • 1080/59.94p *2, *3
  • 1080/60p *2, *4
  • 1080/29.97p *2, *5
  • 1080/30p *2, *6
  • 1080/50p *2, *7
  • 1080/25p *2, *8
  • 1080/23.98p *2, *9
  • 1080/24p *2, *10
  • *1 System Format = 720p
  • *2 System Format = 1080p
  • *3 Frame Rate (Stream&Record) = 59.94 Hz
  • *4 Frame Rate (Stream&Record) = 60 Hz
  • *5 Frame Rate (Stream&Record) = 29.97 Hz
  • *6 Frame Rate (Stream&Record) = 30 Hz
  • *7 Frame Rate (Stream&Record) = 50 Hz
  • *8 Frame Rate (Stream&Record) = 25 Hz
  • *9 Frame Rate (Stream&Record) = 23.98 Hz
  • *10 Frame Rate (Stream&Record) = 24 Hz

Stream and Record formats

• Audio Video
  • Protocols:  RTMP, RTMPS, SRT (Caller, Listener)
  • Container:  FLV (RTMP, RTMPS), MPEG2-TS (SRT)
  • Recording File Format:  MP4
  • Codec:
  • H.264, target bitrate up to 20,000 kbps
  • AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
  • * When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
  • * When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
• Audio
  • Recording File Format:  WAV
  • Codec:  Linear PCM, 16 bits, 48 kHz, stereo

Video Player

• Video Player
  • File Format:  MP4
  • Codec:  H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p AAC-LC, 16 bits, 48 kHz, stereo
• SRT In
  • Protocol: SRT (Caller, Listener)
  • Container: MPEG2-TS
  • Codec:
  • H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
  • AAC-LC, 16 bits, 48 kHz, stereo
  • * When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
  • * When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.

Still Image

• Bitmap File (.bmp) Up to 1920 x 1080 pixels, 24-bit color, uncompressed.
• PNG File (.png) Up to 1920 x 1080 pixels, 24-bit color
• JPEG File (.jpg, .jpeg) Up to 1920 x 1080 pixels, 24-bit color
• * It can be stored up to 32 files in the internal memory.
• * It can be exported to the SD Card and USB flash drive.
• * PNG alpha channel supported.

Video Effects

• Transition:  Cut, Mix (Dissolve/FAM/NAM), WIPE (8 types), SPLIT (2 types)
• Composition:  PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode
• Other: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay

AUDIO

• Audio Processing:  Sample rate: 24 bits, 48 kHz
• Number of Audio Channels:  28 channels

Audio Formats

• USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
• Bluetooth (input): Linear PCM, 16 bits, 48 kHz, 2 ch
• HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
• HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
• SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
• SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)

Audio Player

• File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
• * It can be stored up to 64 tracks in the internal memory.

Audio Effects

• Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
• Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
• Other: Output fade, Test tone output

COMMON SECTION

Recording Media

• SDHC/SDXC card (commercially available)
• USB flash drive (commercially available)
• * SDXC card is required for video recording.

Other Functions

• Scene Memory (32 types)
• Macro Control (100 types)
• Sequencer Control (1,000 steps)
• Panel lock function
• EDID Emulator
• Auto Switching
• Auto Input Detect
• Smart Tally
• Remote Camera Control (Up to 8 units)
• External Rec Control
• Menu language (English, Japanese, Simplified Chinese)

 CONNECTORS

Video Input Connectors

• HDMI IN 1--4: HDMI type A x 4
• * HDCP Supported
• * Multi-format Supported
• SDI IN 1--4: BNC type x 4
• * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

Video Output Connectors

• HDMI OUT 1--3: HDMI type A x 3
• * HDCP Supported
• HDMI IN 3--4 THRU: HDMI type A x 2
• * HDCP Supported
• SDI OUT 1--3: BNC type x 2
• * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• •USB STREAM: USB Type-C (R)

Audio Input Connectors

• Analog:
• AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 10 mA (maximum load)
• AUDIO IN 3/L, 4/R: RCA phono type
• Digital:
• USB STREAM: USB Type-C (R)
• Bluetooth
• HDMI IN 1--4: HDMI type A x 4
• SDI IN 1--4: BNC type x 4

Audio Output Connectors

• Analog:
• AUDIO OUT 1--2: XLR type
• PHONES: Stereo 1/4-inch phone type
• Digital:
• USB STREAM: USB Type-C (R)
• Bluetooth
• HDMI OUT 1--3: HDMI type A x 3
• HDMI IN 3--4 THRU: HDMI type A x 2
• SDI OUT 1--2: BNC type x 2

Other Connectors

• USB HOST: USB A type (for USB flash drive, for remote control from USB numeric keypad)
• USB STREAM: USB Type-C (R) (for remote control from PC and iPad, Graphics Presenter)
• Bluetooth: for remote control from iPad
• CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
• TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
• RS-232: DB-9 type (Male) (for Remote Control)
• DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming, SRT In/Out and Remote Control)

 AUDIO INPUT/OUTPUT CHARACTERISTICS

Input Level

• AUDIO IN 1, 2: -64--+4 dBu (Maximum: +24 dBu)
• AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)

Input Impedance

• AUDIO IN 1, 2: 8.4 k ohms
• AUDIO IN 3/L, 4/R: 10 k ohms

Output Level

• AUDIO OUT 1, 2: +4 dBu (Maximum: +24 dBu)
• PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

• AUDIO OUT 1, 2: 600 ohms
• PHONES: 33 ohms

 OTHERS

• Bluetooth:
  • Ver 5.0
  • Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
  • Codec: SBC (Support to the content protection of the SCMS-T method)
• Display:  4.3 inches TFT Color LCD: 480 x 272 dots
• Power Supply:  AC adaptor
• Current Draw:  2.1 A
• Power Consumption:  51 W
• Operation Temperature:
• +0 to +40 degrees Celsius
• +32 to +104 degrees Fahrenheit
• Dimensions:
  • 396 (W) x 254 (D) x 103 (H) mm
  • 15-5/8 (W) x 10 (D) x 4-1/16 (H) inches
• Weight (excluding AC adaptor)
  • 3.5 kg
  • 7 lbs 12 oz
