Wireless Microphone Systems
We do our best to keep healthy stocks across the many Wireless Microphone System SKUs but in the rare case where we don't have your required system in stock, please contact our sales team as we can often make your product to order by borrowing the system components (transmitters, receivers or mics) from other stocked systems.
The USBDI takes in USB audio, converts it to analog audio and then isolates the output using custom transformers. The output isolation is key to removing ground loops and other system noise between the digital and analog audio systems.

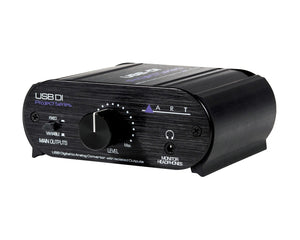

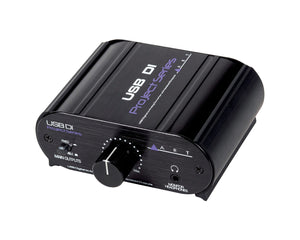

A large knob on the USBDI front panel allows quick, precise control over the output level, while a separate headphone output allows the user to monitor the system. The front panel Main Outputs switch allows the user to keep the isolated outputs at a fixed level while controlling level of the Headphones output.

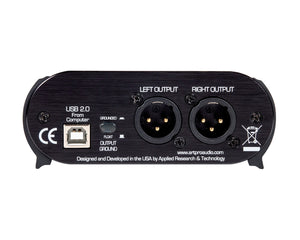

The line level XLR outputs are available for connecting to all sorts of systems. The Main outputs are always isolated but allow the user to control the ground reference to reduce noise.
The USBDI is powered by USB, drawing less than 200mA and eliminating the need for an external power Source
Product Features
High quality D to A Convertor
Sample rates from 32kHz to 48kHz
Switchable Transformer isolated outputs
Front panel volume control
Front panel headphone output
Runs off USB power
Compact rugged package designed for years of use
Perfect for connecting computers to any audio system
Product Specifications
Input Connections: USB 2.0
Output Connections: Balanced XLR and 1/8” Headphone output
Max output level: +7.5dBu. Balanced line.
Headphone output: 150mW/ channel max.
Frequency Response: 20Hz to 20KHz +/- 1dB
THD: <0.020% (typical)
Dynamic Range: 96 dB typ. “A” wtd.
Supported Sample rates: 32kHz, 44.1kHz, 48kHz
Dimensions: 1.87”H x 4.61”W x 4.27”D (47.5mm x 117mm x 108mm)
