Main Features
470-960 MHz Frequency Range
Allows for the expansion of wireless microphone systems
Amplifies RF signals to compensate for insertion loss
A single UA844+ system can support up to five wireless receivers
A maximum of five UA844+ systems may be used in a two-tiered configuration
Supports QLX-D, ULX, ULX-D, SLX and BLX receivers (BLX4R only)

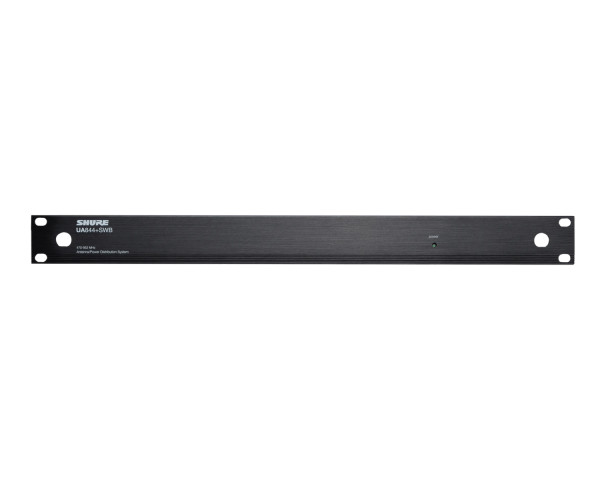

UA844+SWB Antenna Distribution System with Cables 470-960 MHz
It seems like there’s never as much time as you’d like for the sound check. That’s why the UA844+SWB Antenna Distribution System lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time. So you can set and forget, and have more flexibility to make sure it all sounds perfect.
The Shure Model UA844+ is an antenna distribution system that allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs. A single UA844+ system can support up to five wireless receivers. A maximum of five UA844+ systems may be used in a two-tiered configuration.
Product Features
470-960 MHz Frequency Range
Allows for the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers
Amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outputs
A single UA844+ system can support up to five wireless receivers
A maximum of five UA844+ systems may be used in a two-tiered configuration
Includes Rackmount Hardware and Cables
Product Specifications
Power Requirements: 14 to 18 V DC
DC Output: 14 to 18 V DC (x4)
Output Current Combined total from all DC outputs: 2.5 A, maximum
Operating Temperature Range: -18°C (0°F) to 63°C (145°F)
Dimensions: 45 x 483 x 172 mm (H x W x D)
Net Weight: 1.62 kg (3.6 lbs)
RF Input
Connector Type: BNC
RF Frequency Range: model dependent: 174 to 1805 MHz
Bias Voltage: 15 V DC (150 mA, maximum) (x2)
Impedance: 50 Ω
RF Output
RF Frequency Range model dependent: 174 to 1805 MHz
Output Intercept Point: 21 dBm, typical
Connector Type: BNC
Impedance: 50 Ω
Output Connector Isolation: 30 dB, typical
Gain Input to any output port (Unused ports terminated in 50 Ω): 1 to +1 dB
What's in the Box?
2 x 6 ft. (ca. 1,8 m) BNC cables
10 x 22 in. (60 cm) BNC cables
4 x Locking DC power cables (for ULX4D, ULXP4)
4 x Non-locking DC power cables (for QLXD4, SLX4, BLX4R)
