TX2152 Tour X Series 2x15" 2-Way Speaker 60x40° 1000W

« return to previous page

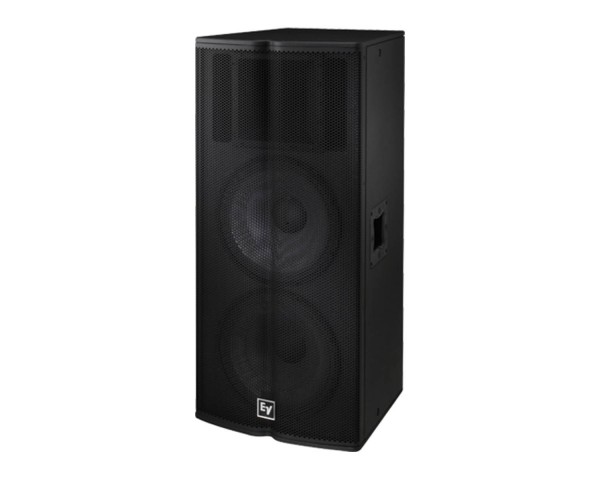

Electro-Voice TX2152 Tour X Series 2x15 2-Way Speaker 60x40° 1000W - Main Image
Price:
RRP: £1,809.36 inc VAT
Code:
ELETX2152
Manufacturer Code:
F.01U.302.274
Brand:
Electro-Voice

Quantity required:

Main Features

  • Very high SPL with smooth response
  • Ideal as mains for small-to-medium clubs
  • Excellent pattern control for medium throw use
  • Dual SMX2151 woofers with fully symmetric drive
  • 2-inch ND2 neodymium HF compression driver
  • Advanced 6th-order crossover with HF protection
Share:

TX2152 Tour X Series 2x15" 2-Way Speaker 60x40° 1000W

Tour X brings the engineering excellence and aesthetic design of EV's world-class tour systems to an innovative and exciting series of portable loudspeakers. Combining bold design and breakthrough performance, the Tour X series is optimized for applications, such as club sound, pro music and concert sound. The line's full-range loudspeakers and monitors utilize either 1.25" DH3/2010A or 2" ND2 compression drivers, protected by an advanced fourth-order crossover.

Product Features

  • Very high SPL with smooth response
  • Ideal as mains for small-to-medium clubs
  • Excellent pattern control for medium throw use
  • Dual SMX2151 woofers with fully symmetric drive
  • 2" ND2 neodymium HF compression driver
  • 60° x 40° rotatable Constant Directivity waveguide

Product Specifications

General

  • Coverage (Nominal -6 dB) H: 60°
  • Coverage (Nominal -6 dB) V: 40°
  • Crossover Frequency: 1750Hz
  • Enclosure Material: Plywood and MDF with EVCOAT
  • Family: Tour X
  • Flying: Yes
  • Frequency Response (-10 dB): 50 - 18000 Hz
  • Frequency Response (-3 dB): 55 - 13000 Hz
  • HF Transducer: 2-inch ND2
  • Input Connections: Parallel Neutrik® NL4
  • Internal Crossover: Yes
  • LF Transducer: Two 15-inch SMX2151
  • Max. SPL/1m (calc): 139dB
  • Minimum Impedance: 3.1Ω
  • Nominal Impedance (Passive): 4Ω
  • Power Rating: 4000W
  • Powered or Passive: Passive
  • Recommended High-Pass Frequency: 40Hz
  • Rotatable Horn: Yes
  • Sensitivity 1 W/1 m: 103dB
  • Speaker Type: Full-Range
  • Suspension: (6) 3/8-inch threaded inserts
  • System Power Handling (Continuous/Program/Peak): 1000//4000 Watts
  • Woofer Size: 15inch

Physical & Dimensions

  • Height: 1154mm
  • Width: 508mm
  • Depth: 471mm
  • Weight: 42.8kg
