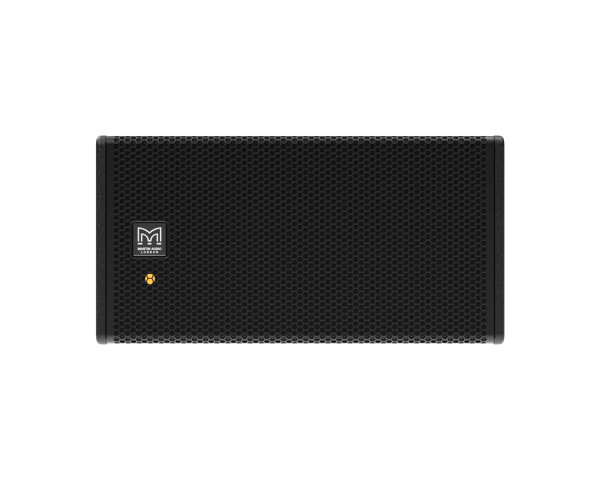

TORUS T820 8" 2-Way Constant Curvature Array Element 100x20° Blk

« return to previous page
Martin Audio TORUS T820 8 2-Way Constant Curvature Array Element 100x20° Blk - Main Image
Martin Audio TORUS T820 8 2-Way Constant Curvature Array Element 100x20° Blk - Image 1
Martin Audio TORUS T820 8 2-Way Constant Curvature Array Element 100x20° Blk - Image 2
Martin Audio TORUS T820 8 2-Way Constant Curvature Array Element 100x20° Blk - Image 3
Martin Audio TORUS T820 8 2-Way Constant Curvature Array Element 100x20° Blk - Image 4
Price:
RRP: £2,400.00 inc VAT
Code:
MAUT820
Manufacturer Code:
T820
Brand:
Martin Audio

Quantity required:

Main Features

  • Two-way, constant curvature array element
  • Compact enclosure with high output capability
  • 1 x 8” (200mm) LF driver plus 2 x 1.4” (35mm)/1” (25mm) exit HF drivers
  • 100° horizontal dispersion x 20° vertical dispersion
  • Easy-to-use integral rigging for quick set-up
  • Integral fittings to facilitate pole-mounting
Share:

TORUS T820 8" 2-Way Constant Curvature Array Element 100x20° Blk

TORUS T820 is a passive, two-way loudspeaker engineered for small to medium-scale applications which do not call for the longer throw capabilities of a line array. With exceptional ease-of-use, scalability and deployment flexibility, it is primarily used as an array element in vertical constant curvature arrays as well as being used singly as a point-source loudspeaker. In venues with short throws, yet high ceilings like some theatres, a horizontal centre cluster may also be a practical solution.

Product Features

  • Two-way, constant curvature array element
  • Compact enclosure with high output capability
  • 1 x 8” (200mm) LF driver plus 2 x 1.4” (35mm)/1” (25mm) exit HF drivers
  • 100° horizontal dispersion x 20° vertical dispersion
  • Easy-to-use integral rigging for quick set-up
  • Integral fittings to facilitate pole-mounting
  • Optimised coverage via DISPLAY 3
  • Powered by iKON amplifiers

Product Specifications

  • Type:  Passive 2-way, 8” Constant Curvature 20° enclosure
  • Frequency Response (with iKON settings):  70Hz – 18kHz ± 3dB, -10dB @ 56Hz
  • Drivers:
    • LF:  8” with 2” Voice coil, Neodymium
    • HF:  2 x 1” exit, 1.4” Voice coil, HT Polymer dome neodymium compression driver
  • Sensitivity:  (2.83V 1m free-field) 97dB
  • Nominal Impedance:  8 ohms
  • Rated Power:  AES 200W, PEAK 800W
  • Maximum SPL (SYSTEM):  124dB continuous, 130dB peak*
  • Dispersion:  100° horizontal, 20° vertical
  • Pin Connections (INPUT):  1+/- or 2+/-
  • Pin Connections (LINK):  1+/- and 2+/-
  • Dimensions:  (W) 500mm, (H) 257mm, (D) 320mm ((W) 19.69ins, (H) 10.12ins, (D) 12.60ins)
  • Weight:  14kg (31 lbs)
