TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk

« return to previous page

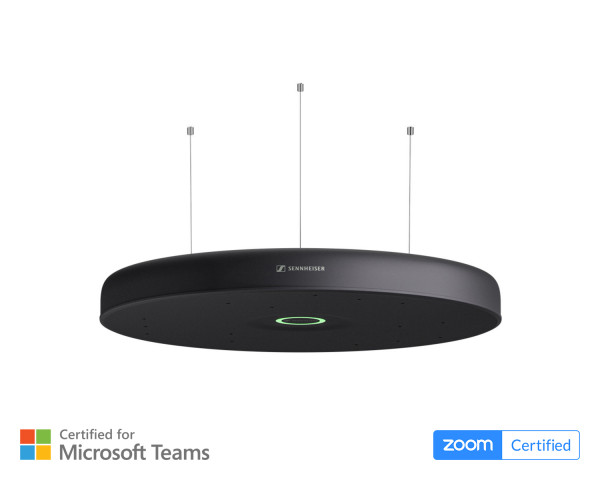

Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Main Image
Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Image 1
Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Image 2
Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Image 3
Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Image 4
Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Image 5
Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Image 6
Sennheiser TCC M-S-B TeamConnect Ceiling Medium Hanging Ceiling Mic 40m² Blk - Image 7
Price:
RRP: £3,598.80 inc VAT
Code:
SENTCCMSB
Manufacturer Code:
700295
Brand:
Sennheiser

Quantity required:

Main Features

  • Patented automatic dynamic beamforming
  • TruVoicelift
  • 15 SMD Electret condenser capsules made in Germany
  • Perfect speech intelligibility
  • Dante or Analog Output
  • Hanging ceiling kit
Share:

TCC M-S-B Hanging Ceiling Mic for Mid-Sized Meeting Rooms 40m² Blk

With a coverage of up to 40 m², our ceiling microphone TeamConnect Ceiling Medium is the right choice for mid-sized meeting rooms and lecture or collaboration spaces. With this solution, Sennheiser provides an additional design option to seamlessly include our audibly superior ceiling microphone into your meeting room. With all the great features of our trusted TeamConnect Ceiling 2 but in a more compact form, the TeamConnect Ceiling Medium microphone is a real problem-solver that allows cable-free tables und flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.

Product Features

  • Patented automatic dynamic beamforming
  • TruVoicelift
  • 15 SMD Electret condenser capsules made in Germany
  • Perfect speech intelligibility
  • Dante or Analog Output
  • PoE
  • Certified for: MS Teams, Zoom, DingTalk and Tencent*
  • Exclusion Zones
  • Priority Zone
  • Camera Control via talker position data
  • IEEE 802.1x
  • TLS 1.2

Product Specifications

Product properties

  • Audio output:
    • 1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
    • 1x Digital Dante Network Audio (RJ-45)
  • Network/Control:  1 x RJ-45 Ethernet Port for PoE power supply and data/control communication
  • Supply voltage:  PoE IEEE 802.3af Class 3 IEEE 802.3at / Typ 2 / Class 4 (when cascaded)
  • Power consumption:  Approx. 8 W
  • Safety certification:  IEC/EN 62368-1 (including UL 2043 testing and compliance)
  • Dimensions (Ø x H):  477 x 46 mm (16 x 1.8 ")
  • Weight:  max. 4,9 kg (10.8lbs)
  • Finish: Black

Acoustic properties

  • Transducer principle:  Pre-polarized condenser microphone
  • AF frequency response:  100 Hz to 16,000 Hz
  • Sensitivity:  0 dBV/Pa (890 mV/Pa)
  • Signal-to-noise ratio:  79 dB (A)
  • Equivalent noise level:  15 dB (A)
  • Number of KE 10-237 microphone capsules:  15
  • Pick-up pattern:  Beam pattern
  • Max. sound pressure level:  98 dB SPL
  • Dynamic range:  83 dB (A)

Ambient Conditions

  • Temperature Range:
    • Operation: 0 to 40°C
    • Storage: -10 to 60°C
  • Relative air humidity:  20 to 95%, non-condensing

What's in the Box?

  • TCC M microphone
  • Front plate black
  • Design housing black
  • Chicago plenum connection box cover plate
  • Drilling templates
  • Phoenix connector
  • Safety rope
  • Suspension kit
