SUB 18-AX 18" Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk

« return to previous page

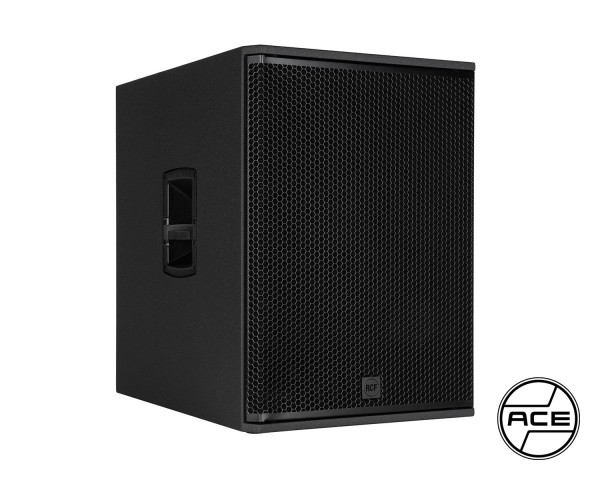

RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Main Image
RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Image 1
RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Image 2
RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Image 3
RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Image 4
RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Image 5
RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Image 6
RCF SUB 18-AX 18 Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk - Image 7
Price:
RRP: £1,610.40 inc VAT
Code:
RCFSUB18AX
Manufacturer Code:
13000836
Brand:
RCF

Quantity required:

Main Features

  • 2200 Watt Class-D Amplifier
  • 135 dB MAX SPL
  • 18” Woofer, bass reflex housing
  • Digital Crossover w/ Presets
  • Multi-ply hardwood polyurea-coated
  • LiveRemote App
Share:

SUB 18-AX 18" Active Bass-Reflex Subwoofer +Bluetooth 2200W Blk

The SUB 18-AX is a portable 18" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 135 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications. SUB 18-AX is the ideal complement for 10", 12” or 15" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.

Product Features

  • 2200 Watt Class-D Amplifier
  • 135 dB MAX SPL
  • 18” Woofer, bass reflex housing
  • Digital Crossover w/ Presets
  • Multi-ply hardwood polyurea-coated
  • LiveRemote App
  • Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
  • Bass Motion Control excursion management
  • Powercon True1 Top Sealed AC Connector

Product Specifications

  • Acoustical specifications
    • Frequency Response:  35 Hz ÷ 120 Hz
    • Max SPL @ 1m:  135 dB
  • Transducers Woofer:  18'', 4.0'' v.c
  • Input/Output section
    • Input signal:  bal/unbal
    • Input connectors:  Combo XLR/Jack
    • Output connectors:  XLR
    • Input sensitivity:  -2 dBu/+4 dBu
  • Processor section
    • Protections:  Thermal
    • Limiter:  Soft Limiter
    • Controls:  Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.
  • Power section
    • Total Power:  2200 W Peak, 1100 W RMS
    • Cooling:  Convection
    • Connections:  Powercon TRUE1 TOP IN/OUT
  • Standard compliance:  Safety agency CE compliant
  • Physical specifications
    • Handles:  1 handle per side
    • Pole mount/Cap:  Yes
    • Colour:  Black

Physical & Dimensions

  • Height:  693 mm / 27.28 inches
  • Width:  505 mm / 19.88 inches
  • Depth:  685 mm / 26.97 inches
  • Weight:  37.6 kg / 82.89 lbs
