Stasys X V2 2x18" Horn-Loaded HF Loudspeaker 3200W Black

« return to previous page

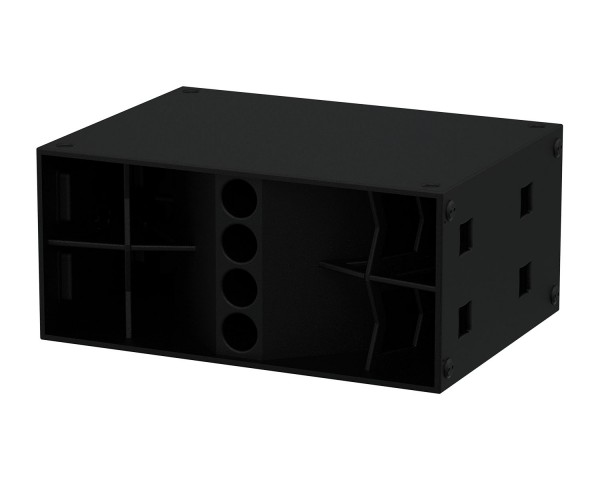

Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Main Image
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 1
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 2
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 3
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 4
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 5
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 6
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 7
Void Acoustics Stasys X V2 2x18 Horn-Loaded HF Loudspeaker 3200W Black - Image 8
Price:
POA
Code:
VOISXV2B
Manufacturer Code:
IT1593
Brand:
Void Acoustics

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • 3200 W AES power handling
  • Negligible power compression
  • Improved transient and phase response
  • Tough ‘TourCoat’ polyurea finish
  • Truck pack-friendly dimensions
  • Universal location receptors
Share:

Stasys X V2 2x18" Horn-Loaded HF Loudspeaker 3200W - Black

The original Stasys X set new standards in the performance possible from a double 18” low frequency enclosure. Used on tours, in live venues and in world-class night venues all around the world, the Stasys X V2 now benefits from newer technologies to advance and refine the design further.

A total rearrangement of the internal resonant chambers has improved the cooling to the extent that no external heatsinks are required, which has led to a significant decrease in power compression. The system’s transient response, phase response, and overall timing capabilities have also been vastly improved by the new internal chamber layout. This has led to a more uniform response in relation to distance, and greater behavioural predictability when arrayed.

Product Features

  • 3200 W AES power handling
  • Negligible power compression
  • Improved transient and phase response
  • Tough ‘TourCoat’ polyurea finish
  • Truck pack-friendly dimensions
  • Universal location receptors

Applications

  • Large scale touring

Product Specifications

General

  • Frequency response:  30 Hz - 180 Hz ±3 dB
  • Efficiency:  103.8 dB 1W/1m
  • Crossover points:  38 Hz Hi Pass 24 dB/oct, 100 Hz - 145 Hz Lo Pass 24 dB/oct
  • Nominal impedance:  4 Ω
  • Power handling:  3200 W AES
  • Maximum output:  138 dB cont, 144 dB peak
  • Driver configuration:  2 x 18” LF
  • Dispersion:  Array dependent
  • Connectors:  2 x 4-pole speakON™ NL4

Physical

  • Dimensions:  (H) 562 mm x (W) 1218 mm x (D) 896 mm (22.1” x 48” x 35.3”)
  • Weight:  130 kg (286.6 lbs)
  • Enclosure:  18 mm birch plywood
  • Finish:  Textured ‘TourCoat’ polyurea
  • Grille:  Perforated steel with foam filter
  • Colour:  Black
