Main Features
Column line-array speaker for installed applications
Enclosure: Bass-reflex type
Power Handling Capacity: Continuous program: 360 W
Rated Impedance: 8 Ω
Sensitivity: 92 dB (1 W, 1 m equivalent, measured at 8 m)

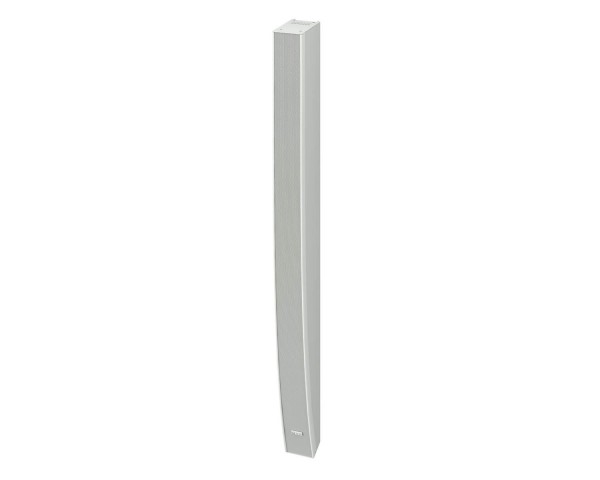

The SR-H3S Line array speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching transformer.
Product Features
Outstanding Sound Quality
Sync-Drive (Synchronous Nexus Control) technology keeps the audio in phase with its sources at the speakers to create an ideal linear sound source.
Line array configuration of speakers works to produce clear sound with reduced attenuation over distance.
Speakers are reflection-free and feedback resistant.
A unique aperture front grille structure enhances the horizontal frequency vs. beam width response for more focused horizontal dispersion.
Speakers are designed for optimally precise directivity of sound, especially vertical directivity, so the audio dispersion can be more accurately focused at the targeted area.
Curved speaker models rely on a hyper-clothoid concept curved array that ensures improved vertical dispersion.
Application Versatility
Selection among four models is possible, enabling more extensive customisation of the listening area.
Most applications are fully covered by no-extension (one cabinet) set-ups, but up to two units can be connected when an expanded vertical coverage area is suitable.
Attractive and narrow 84mm (3.31") design allows speakers to fit in well with the interior decor of the venue.
Optionally available mounting brackets allow gap-free installation of speakers on a wall, for an aesthetically pleasing appearance.
Space/Energy Efficient Design
Energy-efficient line array configuration requires less input power to deliver required output.
High-quality sound reproduction even when an equalizer is not used.
Fully effective operation is possible without additional amplification equipment, saving space and adding to the unit's cost effectiveness.
Easy & Flexible Installation
A wide variety of optional mounting brackets is available, for wall-mounting, rigging, and stand mounting the Type H speakers.
Removable input terminal connectors make hook-ups easier and less cumbersome.
For high-impedance operation, an optional matching transformer MT-S0301 is available.
Product Specifications
Enclosure: Bass-reflex type
Power Handling Capacity: Continuous program: 360 W
Rated Impedance: 8 Ω
Sensitivity: 92 dB (1 W, 1 m equivalent, measured at 8 m)
Frequency Response: 90 Hz - 17 kHz (when recommended parameters are applied by the optional DP-SP3)
Directivity Angle: Horizontal: 90゜
Vertical: 20゜
Speaker Component: 7 cm (2.8") cone-type × 16
Input Connector: Removable input connector
Finish:
Enclosure: MDF, white, urethane paint
Front grille: Punched steel plate, white, acrylic paint
