SPH20 360° 8" Pendant Sphere Speaker 20W/100V White

« return to previous page

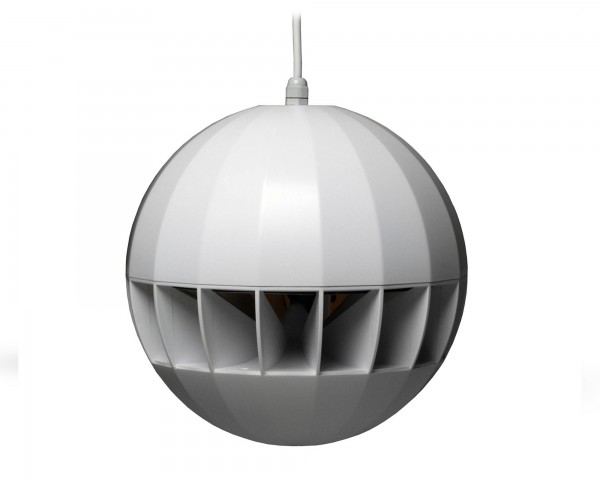

Apart SPH20 360° 8 Pendant Sphere Speaker 20W/100V White - Main Image
Price:
RRP: £122.40 inc VAT
Code:
APASPH20
Manufacturer Code:
911.1488.900
Brand:
Apart

Quantity required:

Main Features

  • 100V sphere loudspeaker which gives 360' sound dispersion
  • Natural sounding background music and high speech intelligibility
  • Designed for large areas with high ceilings
  • Suited for warehouses, supermarkets & industrial buildings
  • 8" coated paper dual cone woofer
  • IP63 rated moisture and UV proof ABS housing
Share:

SPH20 360° Dispersion Sphere Loudspeaker

The Apart SPH20 is dual cone 100 volt sphere loudspeaker with a built-in special dispersion cone which gives you a 360° wide dispersion. These speakers allow a loud and wide sound dispersion to be produced with a minimal number of loudspeakers. SPH20 is the most cost-effective solution for background music or speech in installations with high ceilings where you need to cover an expansive area (warehouses, supermarkets, industrial buildings...).

This sphere loudspeaker gives you natural music and high speech intelligibility (announcements). They allow you to make a very competitive price offer, because using less loudspeakers also has an impact on your amplifier power needed and the cost to have them installed.

SPH20 has an ABS plastic housing and an 8” coated paper dual cone woofer. This loudspeaker has several power tappings (20 – 10 – 5 – 2.5 watts 100 volt transformer) and has an IP63 rating what makes the speaker moisture- and UV proof. A 3.3 m cable with a safety cord inside is included.

Product Features

  • 100V sphere loudspeaker which gives 360' sound dispersion
  • Natural sounding background music and high speech intelligibility
  • Designed for large areas with high ceilings
  • Suited for warehouses, supermarkets & industrial buildings
  • 8" coated paper dual cone woofer
  • IP63 rated moisture and UV proof ABS housing

Product Specifications

  • Loudspeaker system:  dual cone
  • Woofer cone material:  paper
  • Colour:  white
  • Impedance (ohms):  8
  • Low impedance RMS power in watts:  20
  • Max SPL 1m in dB:  111
  • Main construction material:  ABS plastic
  • Closest RAL colour (subject to deviations):  RAL9003
  • Woofer size in inch:  8
  • Mounting system:  ceiling socket
  • 100V transformer power taps in watts:  20 - 10 -5
  • Low impedance dynamic power in watts:  30
  • SPL 1W/1m in dB:  95
  • Frequency response in Hz:  80 - 18K
  • Grille main material:  ABS plastic
  • Vertical dispersion angle 1000 Hz:  110°
  • Net weight product (kg):  2,20
