SOLO STUDIO Single-Ch Rackmount Multi-Voice Channel Strip

« return to previous page

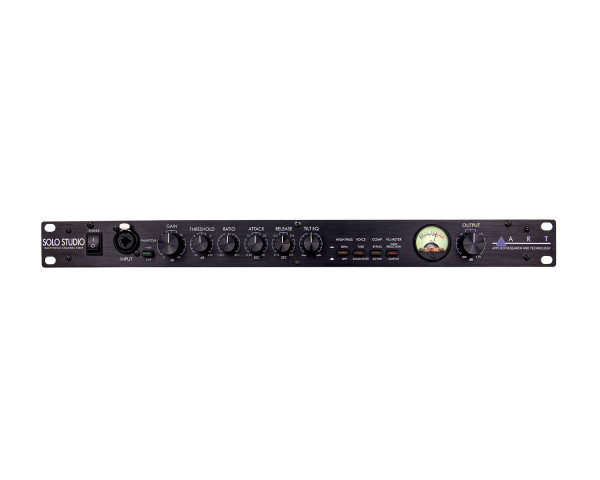

ART Pro Audio SOLO STUDIO Single-Ch Rackmount Multi-Voice Channel Strip - Main Image
ART Pro Audio SOLO STUDIO Single-Ch Rackmount Multi-Voice Channel Strip - Image 1
ART Pro Audio SOLO STUDIO Single-Ch Rackmount Multi-Voice Channel Strip - Image 2
ART Pro Audio SOLO STUDIO Single-Ch Rackmount Multi-Voice Channel Strip - Image 3
Price:
RRP: £320.99 inc VAT
Code:
ARTSOLOSTUDIOCE
Manufacturer Code:
ART-SOLOSTUDIOCE
Brand:
ART Pro Audio

Quantity required:

Main Features

  • 48 Volt Switchable Phantom Power
  • Selectable Multi-Voice Tube/Solid State Control
  • Hand selected 12AT7 Tube
  • OPTO – Analog Optical Isolators (AOI)
  • Optical Controlled Compression
  • Pre-Compression Insert Loop
Share:

SOLO STUDIO Single-Ch Rackmount Multi-Voice Channel Strip

Combining the best of both worlds, the Solo Studio Multi-Voice Channel Strip allows users to choose between a pristine low-noise/low-distortion solid state transistor circuit and a warmer Class-A tube mic preamp. Along with the flexible Tilt EQ control, users can voice the Solo Studio to create their own signature sound.

Featuring 48V phantom power, a front Microphone/Line balanced input or a high impedance Instrument input, users can tailor the Solo Studio to suit any sound source. A Low-Cut control allows vocals to be sculpted for clarity while the Tilt EQ can be used to emphasize high presence or low-end warmth.

The Solo Series of single channel rackmount units have been developed for the recording enthusiast with a preference for simplicity.

Product Features

  • 48 Volt Switchable Phantom Power
  • Selectable Multi-Voice Tube/Solid State Control
  • Hand selected 12AT7 Tube
  • OPTO – Analog Optical Isolators (AOI)
  • Optical Controlled Compression
  • Pre-Compression Insert Loop
  • Flexible Tilt EQ
  • Selectable Low Cut Filter (HPF)
  • Variable Threshold and Ratio controls
  • Variable Attack and Release controls
  • Variable Blend (Compression)
  • Variable Output Level Control

Product Specifications

  • Frequency Response:  15 Hz to 50 kHz (+0, -1dB)
  • Dynamic range:  >110dB (“A” weighted)
  • CMRR:  >90dB
  • THD:  <0.005% (typical)
  • Equivalent Input Noise:  -129dBu (XLR, “A” weighted)
  • Maximum Input Level:  +19dBu (XLR)
  • Maximum Instrument Input:  +17dBu
  • Input Impedance:  47k ohms (XLR), >800k ohms (Instrument)
  • Maximum Output Level):  +27dBu (XLR
  • Output Impedance:  < 47 ohms (XLR)
  • Maximum Gain:  55dBMeter
  • Attack Time:  0.25msec. to 50msec. variable
  • Release Time:  150msec. to 3sec. variable
  • CMRR:  >90dB THD <0.005% (typical
  • Calibration:
    • 0VU = +4dBu output (+4dBu mode)
    • 0VU = -10dBV output (-10dBV mode)
  • Low Cut Filter:  single pole, 80Hz
  • Tilt EQ:  +/- 3dB adjustable
  • Power Requirements:  100-240V 50Hz/60Hz
  • Dimensions (HxWxD):  1.75-inch x 19-inch x 6.0-inch (4.45 cm x 48.3 cm x 15.2 cm)
  • Weight:  5.6 lb / 2.5kg
