SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs

« return to previous page

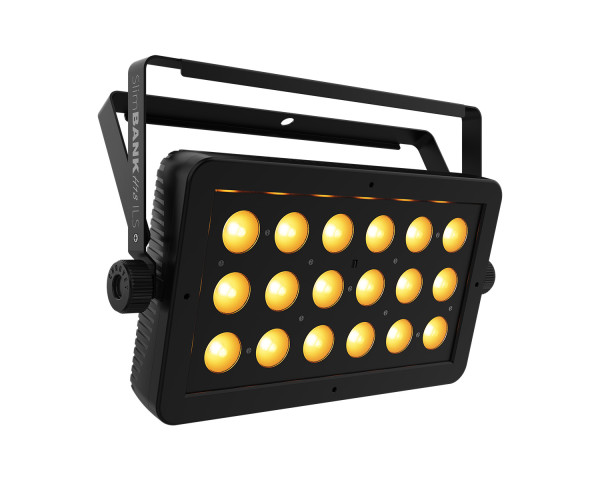

CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Main Image
CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Image 1
CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Image 2
CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Image 3
CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Image 4
CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Image 5
CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Image 6
CHAUVET DJ SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs - Image 7
Price:
RRP: £310.80 inc VAT
Code:
CHASBH18ILS
Manufacturer Code:
SLIMBANKH18ILS
Brand:
CHAUVET DJ

Quantity required:

Main Features

  • Versatile hex-colour LED wash light with brilliant eye candy effects
  • ILS compatibility for use in the ILS ecosystem
  • Generate complex looks easily with built-in, eye-catching auto programs with sectional control
  • Adjustable barn doors help direct and focus the light
  • Control options include IRC-6 remote, Master/Slave, DMX, or ILS
  • Achieve smooth LED fading with built-in dimming curves
Share:

SlimBANK H18 ILS Washlight with 18x6.2W RGBAW+UV LEDs

SlimBANK H18 ILS is a versatile hex-color (RGBAW+UV) LED wash light with brilliant eye candy effects. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Built-in dimming curves achieve smooth LED fading while built-in auto programs with sectional control generate complex looks in no time. Its radiant cooling and fan-free design make this fixture ideal for sound-sensitive environments.

Product Features

  • Versatile hex-colour LED wash light with brilliant eye candy effects
  • ILS compatibility for use in the ILS ecosystem
  • Generate complex looks easily with built-in, eye-catching auto programs with sectional control
  • Adjustable barn doors help direct and focus the light
  • Control options include IRC-6 remote, Master/Slave, DMX, or ILS
  • Achieve smooth LED fading with built-in dimming curves
  • Ideal for sound-sensitive environments due to the radiant cooling design and no fan
  • Save time running extension cords by power linking multiple units

Product Specifications

  • DMX Channels:  6, 8, 12 or 22
  • DMX Connectors:3-pin XLR
  • Light Source:  18 LEDs (hex-colour RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
  • Strobe Rate:  0 to 20 Hz
  • Beam Angle:  27°
  • Field Angle:  43°
  • Illuminance:  3,111 lux @ 2 m
  • Lumens:  3,356
  • Power Linking:  8 units @ 120 V; 14 units @ 230 V
  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:  68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz
  • Weight:  6 lb. (2.7 kg)
  • Size:  8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
  • Approvals:  CE, RoHS
  • Optional Controllers:  IRC-6, ILS Command
  • Bracket Mounting Hole:  13 mm
  • Beam Angle:  27°
  • Field Angle:  43°
  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)

What's in the Box?

  • SlimBANK H18 ILS
  • Power cord
  • Barn doors
  • Quick Reference Guide
