SixPar 200 PAR Fixture 12x 12W RGBAW+UV LEDs

« return to previous page

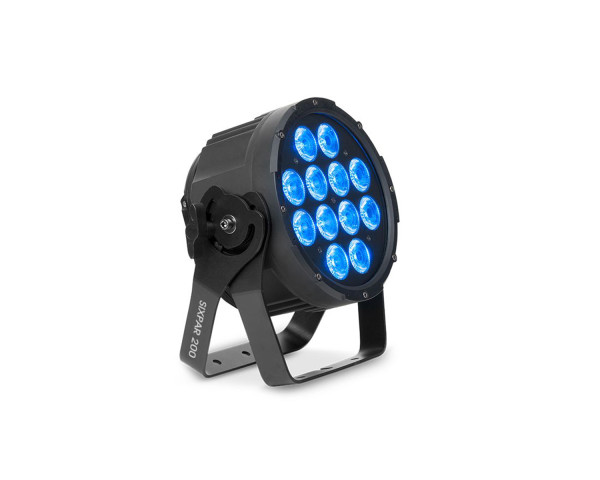

Elation SixPar 200 PAR Fixture 12x 12W RGBAW+UV LEDs - Main Image
Elation SixPar 200 PAR Fixture 12x 12W RGBAW+UV LEDs - Image 1
Elation SixPar 200 PAR Fixture 12x 12W RGBAW+UV LEDs - Image 2
Elation SixPar 200 PAR Fixture 12x 12W RGBAW+UV LEDs - Image 3
Price:
RRP: £528.00 inc VAT
Code:
ELA0324
Manufacturer Code:
1236100114
Brand:
Elation

Quantity required:

Main Features

  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 15° Beam 25° Field Angles
  • 5 Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • RDM - Remote Device Management
Share:

SixPar 200 PAR Fixture 12x 12W RGBAW+UV LEDs

The indoor version SIXPAR 200™ features (12) 12W 6-IN-1 RGBAW+UV LEDs, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminium exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).

Product Features

  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 15° Beam 25° Field Angles
  • 5 Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • RDM - Remote Device Management
  • Rugged Die-Cast Aluminium Exterior
  • Flicker Free Operation for TV and FILM

Product Specifications

Source

  • (12) 12W 6-in-1 RGBAW+UV LEDs
  • 100,000 hour average LED life

Photometric Data

  • 22,250 LUX 2,067 FC @ 1m (3.3’) (15° Full ON)

Effects

  • Electronic strobe
  • Colour and chase macros
  • Electronic dimming: 0% - 100%
  • 5 dimming modes

Colour

  • RGBAW+UV multi-chip LEDs

Control / Connections

  • (4) DMX channel modes (6 / 7 / 8 / 12)
  • (4) button touch control panel LCD menu display
  • 3/5pin DMX and IP65 locking power cable In/Out
  • With wired digital communication network



Electrical / Thermal

  • AC 110-250V - 50/60Hz
  • 150W max power consumption
  • Multiple unit power linking
  • -15°C to 45°C (5°F to 113°F)
  • UV wavelength:  395nm

Size / Weight

  • Length:  313mm (12.3”)
  • Width:  125mm (4.9”)
  • Vertical height:  300mm (11.8”)
  • Weight:  5.18 kg (11.42 lbs.)

What's in the Box?

  • Twist Locking Power Cable
