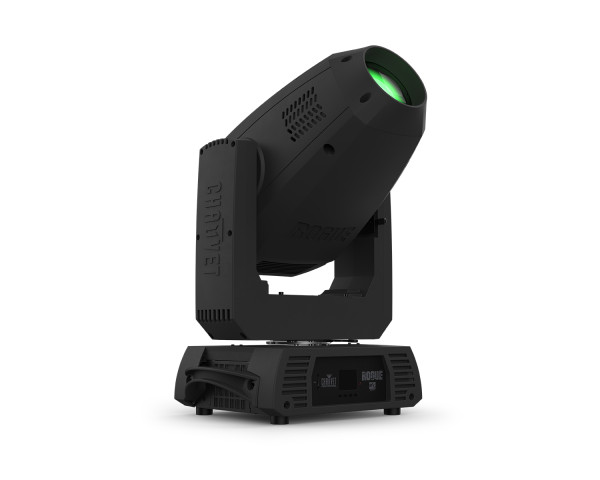

Rogue R3E Spot Moving Head 350W LED 8-Colour Wheels 7-41.4° Zoom

Product Features

• A fully featured compact and light weight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two colour wheels
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two colour wheels with 8 colours, split colour ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• 7° to 41.4° Zoom range
• True 1 compatible power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R2X Spots
• Selectable PWM settings to maintain flicker-free operation on camera
• Simple and complex DMX channel profiles for programming versatility

Product Specifications

Optical

• Light Source:  1LEDs (CW) 350 W, (5 A), 7796 K, 50,000 hours life expectancy
• Colour Temperature (at full):  7796 K
• Front lens diameters:  90 mm
• CRI:  66.0
• Beam Angle:  7° to 32°
• Field Angle:  10.1° to 39.1°
• Cutoff Angle:  10.8° to 41.4°
• Zoom Range:  7° to 41.4°
• Lumens – Source:  24,500
• Lumens – Output:  12,789
• Illuminance (7°):  35,552 lux @ 5 m
• Illuminance (39.1°):  2,316 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colours (1):  8 + white, split colours, continuous scroll at variable speeds
• Colours (2):  8 + white, split colours, continuous scroll at variable speeds
• Gobos (1):  7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2):  8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size:  Gobo Wheel 1 (rotating); size:  20 mm (outside), 16 mm (image), 2 mm (max. thickness)
• Gobo Size:  Gobo Wheel 2 (static):  size:  24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorized
• Focus:  Motorized
• Frost:  Motorized
• Iris:  Motorized
• Prism:  3 Facets, motorized, rotating
• Strobe Rate:  0 to 25 Hz
• Move in Black:  Yes

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  19 or 25
• Modes/Personalities:2 personalities (19, 25)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  5 units @ 230 V
• Power and Current:  523 W, 2.345 A @ 230 V, 50 Hz

Construction/Physical

• Dimensions:  13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
• Weight:  34 lb (15.4 kg)
• Exterior colour:  Black
• Housing Material:  Aluminium die-cast, High-impact flame-retardant polymer, Steel

What's in the Box?

• Rogue R3E Spot
• Seetronic PowerKon power cord
• 2 140D Omega brackets with mounting hardware
