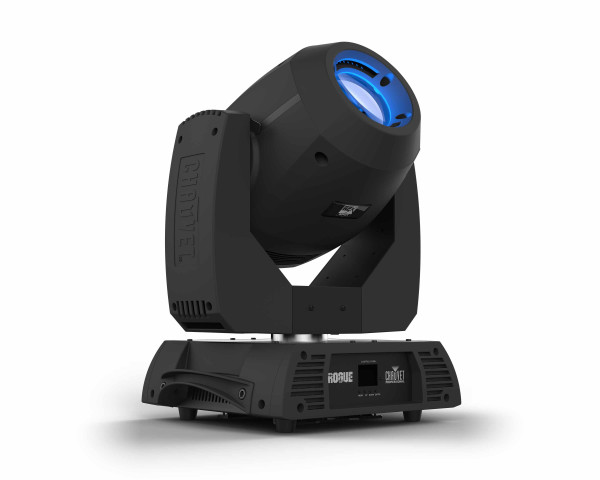

Rogue R2X Spot Moving Head with 300W LED Engine + 7 Colours IP20

Product Features

• Intense 300 W LED light engine for punchy, bold beams
• Perfect gobo morphing between gobo wheels
• Two colour wheels with 7 colours, split colour ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• Beautiful 16-bit LED dimming for ultimate fade control
• Neutrik® powerCON® power input/output connections for power linking
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R2 Spots
• Selectable PWM settings to maintain flicker-free operation on camera
• Simple and complex DMX channel profiles for programming versatility

Product Specifications

Optical

• Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 7,836 K, 50,000 hours life expectancy
• CRI: 72
• Beam Angle: 16.5°
• Field Angle: 16.5°
• Lumens – Source: 23,000
• Lumens – Output: 11,000
• Illuminance (total): 9,187 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/250°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/250°, 180°, 90° tilt
• Colours (1): 7 + white, split colours, continuous scroll at variable speeds
• Colours (2): 7 + white, split colours, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
• Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
• Framing Shutters: No
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Standalone Colour Mixing: No
• Colour Temperature Presets: No
• Move-in-Black: Yes

Connections

• Power Connection: Edison (local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 18 or 21
• Modes/Personalities: 2 personalities (18, 21)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
• Power and Current: 517 W, 4.31 A @ 120 V, 60 Hz
• Power and Current: 427 W, 2.05 A @ 208 V, 60 Hz
• Power and Current: 437 W, 1.9 A @ 230 V, 50 HzBreaker Size: F 7A, 250 V

Physical & Dimensions

• Height: 489mm
• Width:  343mm
• Depth: 409mm
• Weight: 21.7kg
