PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65

« return to previous page

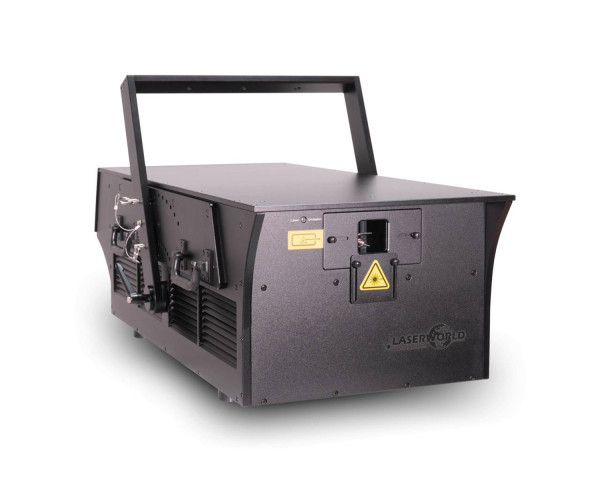

Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Main Image
Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Image 1
Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Image 2
Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Image 3
Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Image 4
Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Image 5
Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Image 6
Laserworld PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65 - Image 7
Price:
RRP: £18,060.00 inc VAT
Code:
LASPL70000RGBFB4IP65
Manufacturer Code:
7640144997946FB4
Brand:
Laserworld

Quantity required:

Main Features

  • 70'000 mW guaranteed power
  • Graphics capable - 30kpps @ 8° ILDA
  • Max scan angle 50°
  • Full colour mixing - analogue modulation
  • IP65 waterproof housing
  • Pangolin FB4 Interface
Share:

PL-70.000RGB FB4 IP65 70W Full Colour Laser 30kpps Pangolin IP65

A extremely powerful full-colour laser from the professional range, equipped with a built-in FB4 output card that enables DMX, ArtNet and standalone control as well as computer control via QuickShow or BEYOND. Separate optics area for low effort maintenance. Perfect for medium to large club installations, indoor events and looks fantastic in large productions. IP65 waterproof laser system, suitable for outdoor use. Including waterproof flightcase.

Product Features

  • 70'000 mW guaranteed power
  • Graphics capable - 30kpps @ 8° ILDA
  • Max scan angle 50°
  • Full colour mixing - analogue modulation
  • Sharp intense beams – ca. 10.0 mm beam diameter and low divergence of 1.1 mrad
  • IP65 waterproof housing
  • Save safety settings direct to the laser and they apply in all modes
  • Link multiple units with linking Power, DMX and ILDA
  • Multiple control modes - Auto,DMX, Artnet and ILDA
  • including waterproof flightcase
  • Pangolin FB4 Interface

Product Specifications

  • Guaranteed Power at aperture:  70'000 mW
  • Power Red:  29'000 mW / 638 nm
  • Power Green:  29'000 mW / 520 nm
  • Power Blue:  29'000 mW / 450 nm
  • Beam Specifications:  ca. 10.0 mm / 1.1 mrad
  • Scanner:  30kpps @ 8° ILDA
  • Max. Scan Angle:  50°
  • Laser Source:  Diode
  • Laser Class:  4
  • Operation Modes:  ILDA, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone
  • Basic Patterns:  Available for download
  • Accessories:  power cable, flightcase with caster wheels, manual; full version QUICKSHOW software license included
  • IP rating:  IP65
  • Power Supply:  85 V - 250 V / AC, 50/60 Hz
  • Power Consumption:  1000 W
  • Dimensions:  834 x 524 x 270 mm (L x W x H)
  • Weight:  48 kg

What's in the Box?

  • Power cable
  • Flightcase with caster wheels
  • Manual
  • Full version QUICKSHOW software license included
