PL1K1 Portable Hearing Loop Kit (PL1 Amplifier and Shelf)

« return to previous page

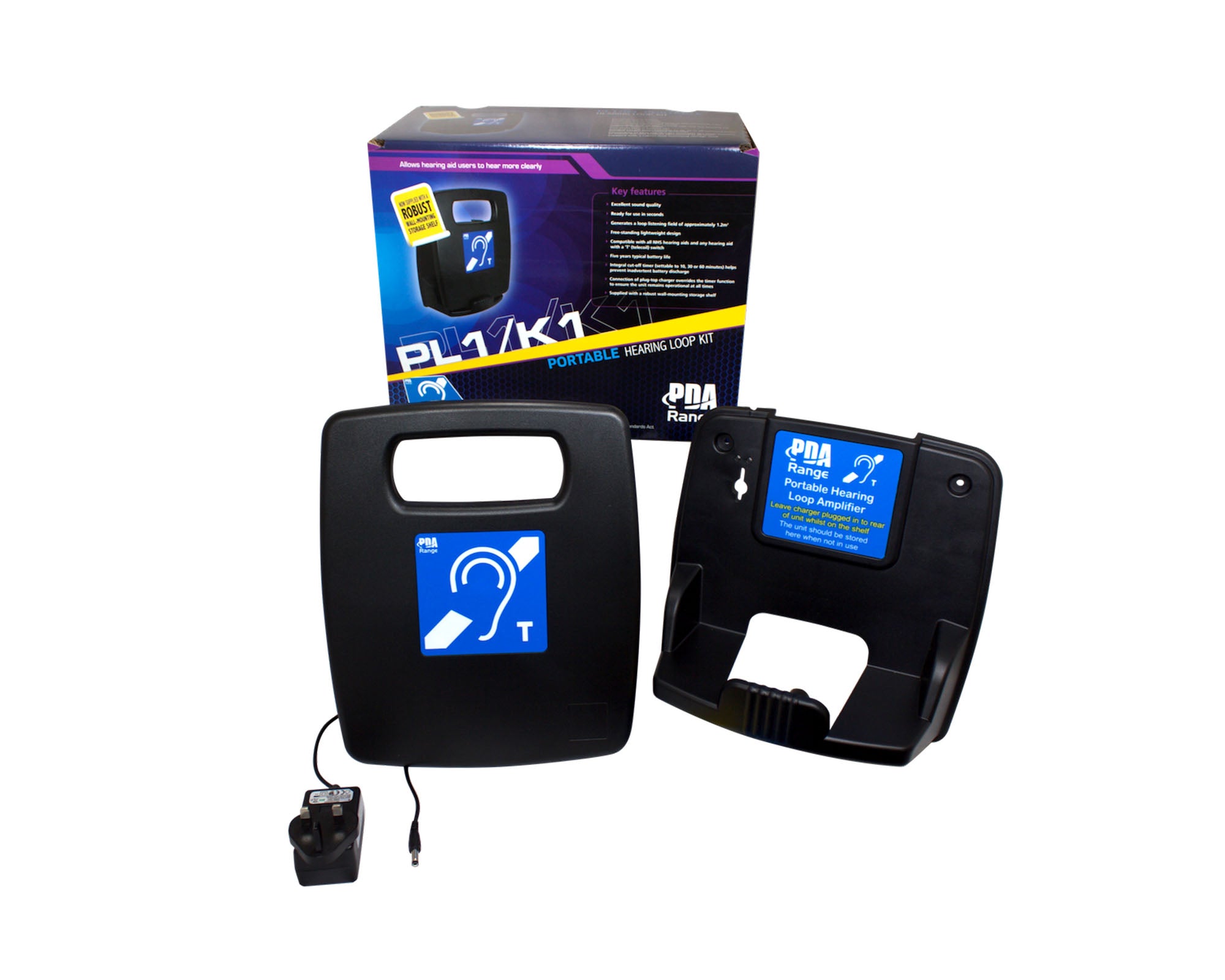

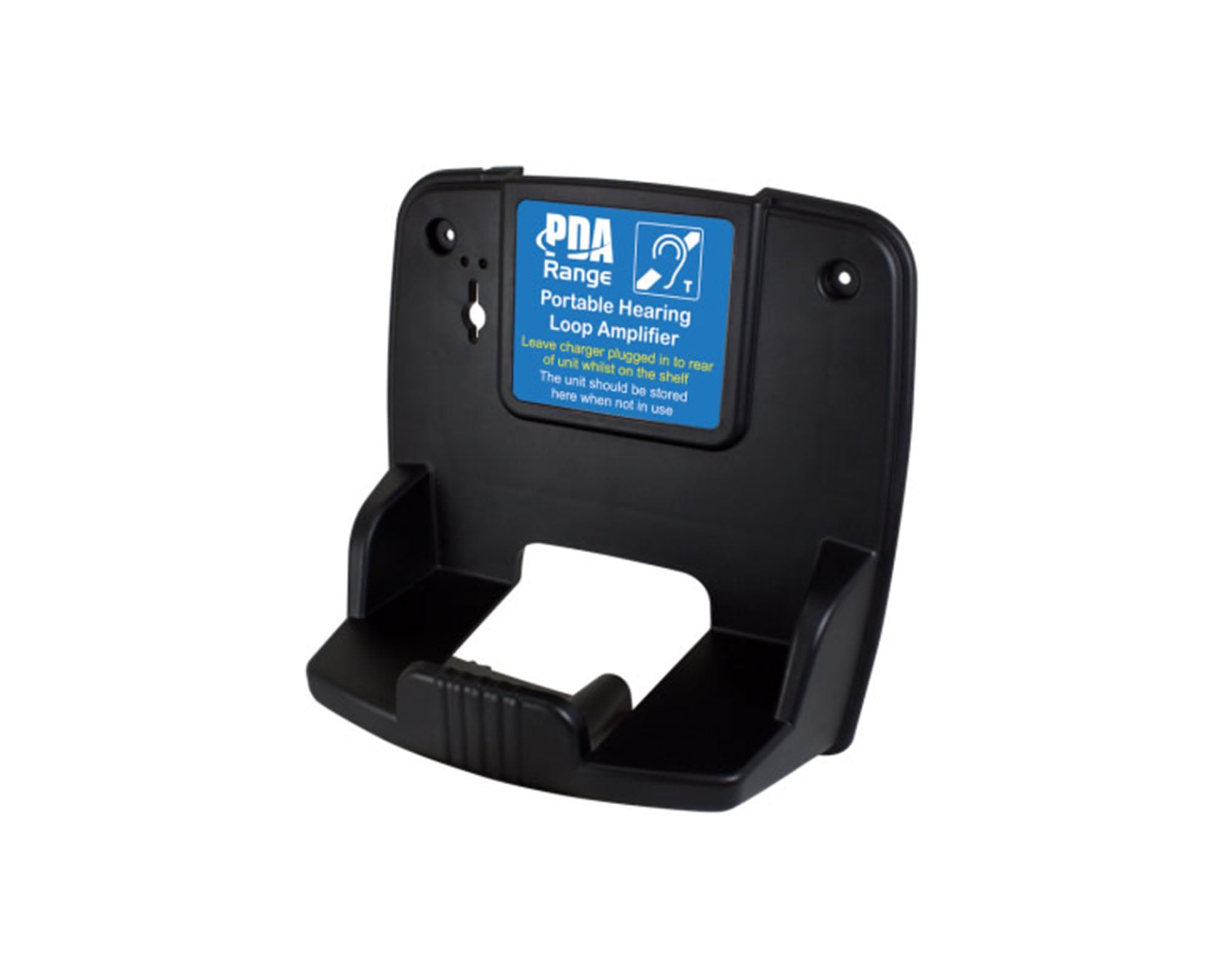

SigNET PL1K1 Portable Hearing Loop Kit (PL1 Amplifier and Shelf) - Main Image
SigNET PL1K1 Portable Hearing Loop Kit (PL1 Amplifier and Shelf) - Image 1
SigNET PL1K1 Portable Hearing Loop Kit (PL1 Amplifier and Shelf) - Image 2
SigNET PL1K1 Portable Hearing Loop Kit (PL1 Amplifier and Shelf) - Image 3
SigNET PL1K1 Portable Hearing Loop Kit (PL1 Amplifier and Shelf) - Image 4
Price:
RRP: £225.32 inc VAT
Code:
SIGPL1K1
Manufacturer Code:
PL1/K1
Brand:
SigNET

Quantity required:

Main Features

  • Portable, lightweight design means the system can be moved easily from location to location
  • Simple one button operation
  • Integral high-performance microphone
  • Excellent sound quality
  • Five years' expected battery life under normal operating/charging conditions
  • Auto shut-off facility (user selectable for 10, 30 or 60 minutes) helps preserve battery life
Share:

PL1K1 Portable Hearing Loop Kit

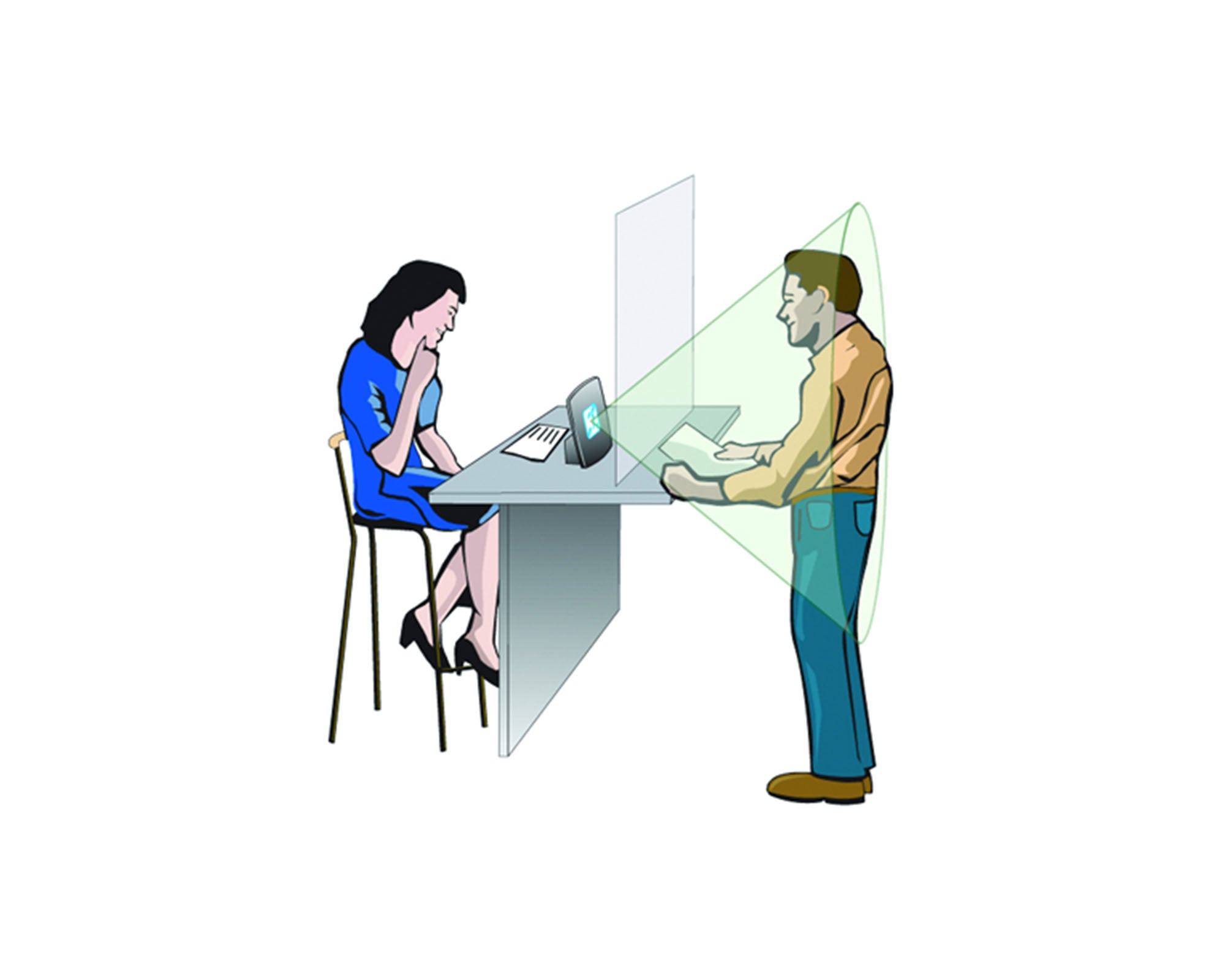

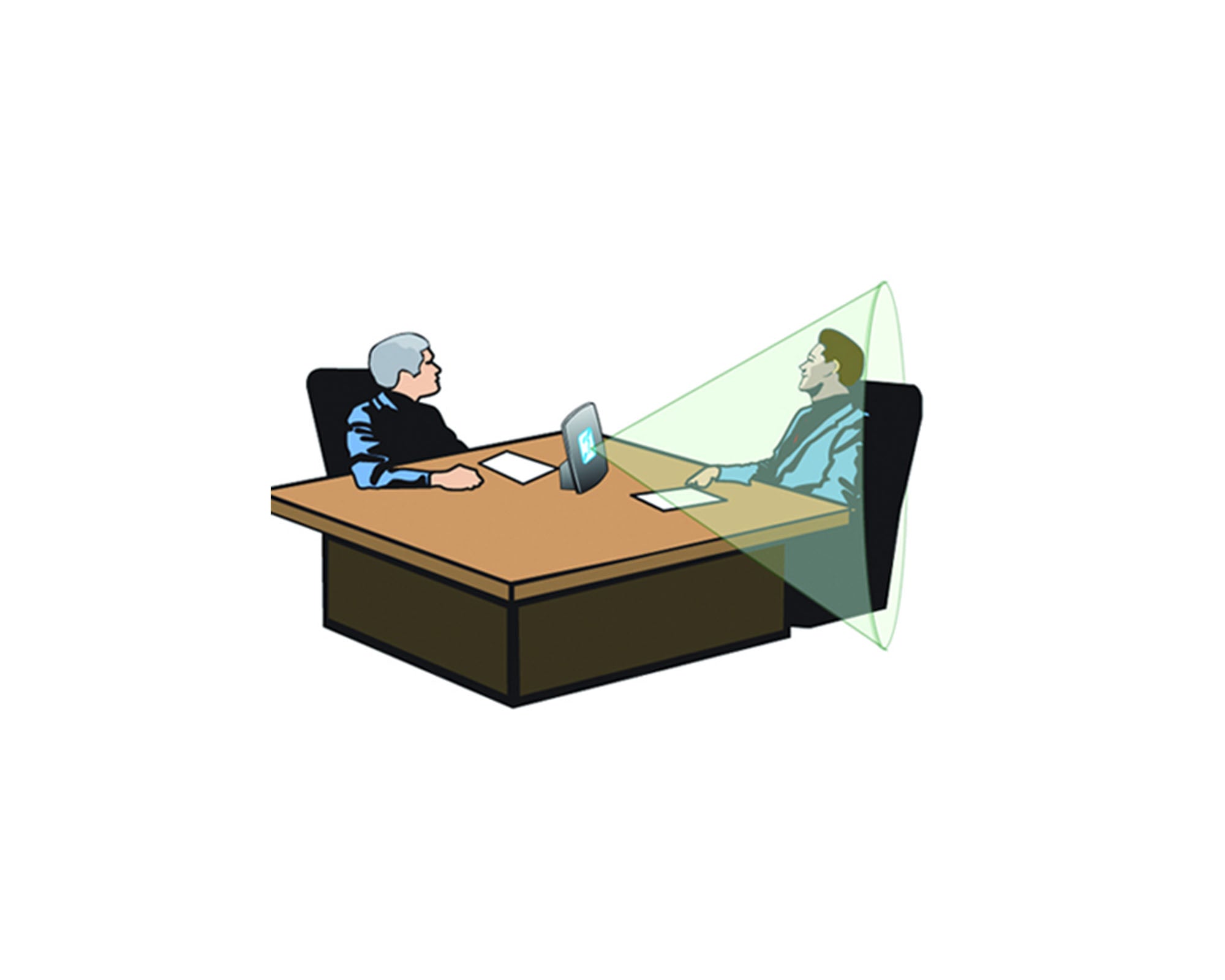

The PL1 is a compact audio-frequency induction loop amplifier capable of generating a loop listening field of more than 100mA/M (the level required by BS 7594: The code of practice for audio-frequency induction loop systems) at distances greater than 1m from the unit itself. Suitable for counter, table or desktop use, it is ideal for restricted person to person contact in areas such as banks, post offices, small meeting rooms, reception desks, open plan offices and ticket booths. Its portable, lightweight design and simple one button operation allows it to be moved easily from location to location and ready for use within seconds, facilitating easy and economical compliance with the Disability Discrimination Act.

Product Features

  • Ideal for restricted person to person contact in areas such as banks, post offices, small meeting rooms, reception desks, open plan offices and ticket booths.
  • Portable, lightweight design means the system can be moved easily from location to location.
  • Simple one button operation.
  • Integral high-performance microphone.
  • Excellent sound quality.
  • Five years’ expected battery life under normal operating/charging conditions.
  • Auto shut-off facility (user selectable for 10, 30 or 60 minutes) helps preserve battery life.
  • Connection of the plug-top charger overrides the timer function to ensure the unit remains operational at all times.
  • Can be used as normal whilst charging.

Product Specifications

General

  • Internal 12V VRSLA (Valve Regulated Sealed Lead Acid) battery - monitored against deep discharge.
  • Expected battery life five years under normal operating/charging conditions.
  • 230v a.c. separate plugtop charger included in PL1/K1, PL1/K2, PL1/K3 and PL1/K4 kits.
  • Automatic shut-off timer (nominally set to 10 minutes, adjustable to 30 minutes or 60 minutes).
  • 0.5m optimum internal microphone operating distance.
  • 100Hz-5Khz frequency response and fully automatic compressor (up to 5:1 max).
  • Nominal 1 metre operating range at 1KHz providing an AFILS field strength of >100mA/M.
  • <1% Total harmonic distortion of output current @1Khz, 1M distance & 100mA/M field strength.

Physical & Dimensions

  • Dimensions (WxHxD) = 250 x 300 x 100mm approx.
  • Weight (including battery) = 1.7kg
