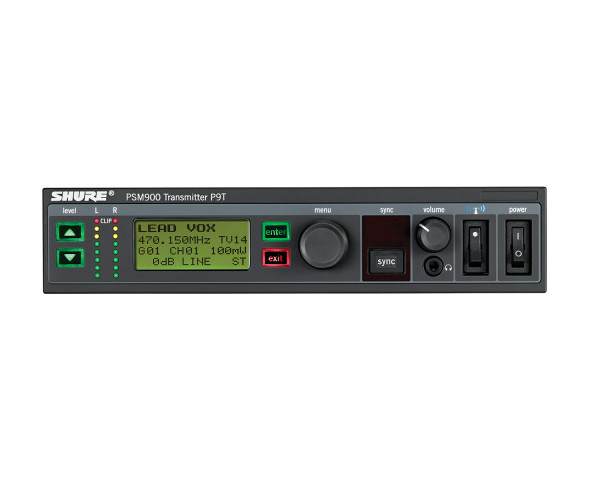

Shure P9T PSM900 Wireless IEM Half-Rack Transmitter G6E 470-506 MHz - Main Image
Shure P9T PSM900 Wireless IEM Half-Rack Transmitter G6E 470-506 MHz - Image 1
Shure P9T PSM900 Wireless IEM Half-Rack Transmitter G6E 470-506 MHz - Image 2
Shure P9T PSM900 Wireless IEM Half-Rack Transmitter G6E 470-506 MHz - Image 3
Shure P9T PSM900 Wireless IEM Half-Rack Transmitter G6E 470-506 MHz - Image 4
Price:
RRP: £744.00 inc VAT
Code:
SHUP9TUKG6E
Manufacturer Code:
P9TUK=-G6E
Brand:
Shure

Quantity required:

Main Features

  • G6E Band:  470-506 MHz
  • Robust metal chassis
  • RF Mute Switch allows system setup without causing RF interference
  • Allows up to 20 compatible channels per frequency range
  • Exceptional transmitter linearity vastly reduces frequency intermodulation
  • Includes rackmount kit
Share:

P9T PSM900 Wireless IEM Half-Rack Transmitter G6E 470-506 MHz

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System. The P9T Wireless Transmitter combines state-of-the-art technology with an ideal set of features for professional monitoring applications of any kind, including IEM and IFB applications. Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.

Product Features

  • G6E Band:  470-506 MHz
  • Robust metal chassis
  • RF Mute Switch allows system setup without causing RF interference
  • Allows up to 20 compatible channels per frequency range
  • Exceptional transmitter linearity vastly reduces frequency intermodulation
  • Includes rackmount kit

Product Specifications

  • RF Output Power:  Selectable: 10, 50, 100 mW (regionally dependent)
  • RF Output Impedance:  50 Ω (typical)
  • Net Weight:  850 g
  • Dimensions:  197 mm x 166 mm x 42 mm (7.75in X 6.55in X 1.65in)
  • Power Requirement : 415 mA typical @ 120VAC (with RF on 100 mW power mode, no audio)

Audio Input

  • Connector Type:  Combination XLR and 6.35 mm (1/4”) TRS
  • Polarity:  XLR: Non-inverting (pin 2 positive with respect to pin 3) 6.35 mm (1/4”) TRS: Tip positive with respect to ring
  • Configuration:  Electronically balanced
  • Impedance:  70.2 kΩ (actual)
  • Nominal Input Level:  Switchable: +4 dBu, –10 dBV
  • Maximum Input Level:
    • +4 dBu: +23.3 dBu
    • –10 dBV: +12.5 dBu
  • Pin Assignments
    • XLR: 1=ground, 2=hot, 3=cold
    • 6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
  • Phantom Power Protection:  up to 60 V DC

Audio Output

  • Connector Type:  6.35 mm (1/4”) TRS
  • Configuration:  Electronically balanced
  • Impedance:  Connected directly to inputs
