NX 985-A 15" + 8" 3-way Active Loudspeaker System 1050W RMS Black

« return to previous page

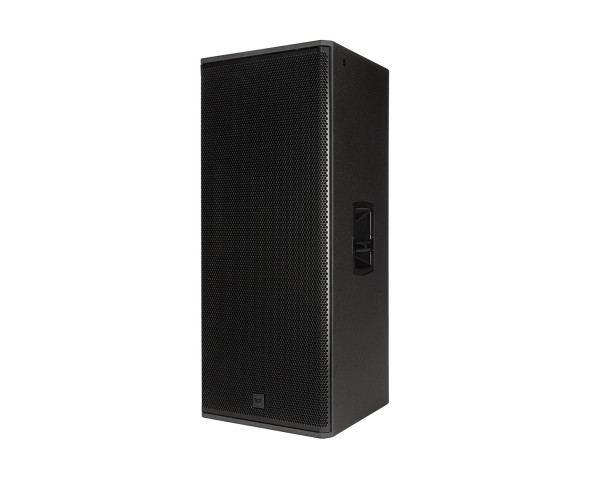

RCF NX 985-A 15 + 8 3-way Active Loudspeaker System 1050W RMS Black - Main Image
RCF NX 985-A 15 + 8 3-way Active Loudspeaker System 1050W RMS Black - Image 1
RCF NX 985-A 15 + 8 3-way Active Loudspeaker System 1050W RMS Black - Image 2
RCF NX 985-A 15 + 8 3-way Active Loudspeaker System 1050W RMS Black - Image 3
RCF NX 985-A 15 + 8 3-way Active Loudspeaker System 1050W RMS Black - Image 4
RCF NX 985-A 15 + 8 3-way Active Loudspeaker System 1050W RMS Black - Image 5
RCF NX 985-A 15 + 8 3-way Active Loudspeaker System 1050W RMS Black - Image 6
Price:
RRP: £2,024.40 inc VAT
Code:
RCFNX985A
Manufacturer Code:
13000743
Brand:
RCF

Quantity required:

Main Features

  • Up to 138 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 40-20000 Hz linear frequency response
  • 1.75" Titanium Neodymium Compression Driver
  • 8" Midrange, 2.5" v.c.
  • 15" High Power Woofer
Share:

NX 985-A 15" + 8" 3-way Active Loudspeaker System 1050W RMS Black

NX 985-A is a three-way active speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of RCF premium transducers and a two-channel 2100W amplifier produce coherent 100° x 60° coverage for the listening area with up to 138 dB SPL of distortion-free sound. The three-way design features a 1.75" neodymium compression driver with a constant directivity waveguide, 8" cone midrange on a phase-coherent waveguide, and a 15" high power woofer. Used as a stand-alone speaker, flown, coupled with another NX 985-A or combined with the RCF SUB 8008-AS subwoofer, the NX 985-A delivers extreme SPL output at all frequencies with high performance and reliability. The rugged, tour-ready, high-quality all-plywood cabinet is easy to carry and secure to install using the dedicated rigging points available.

Product Features

  • Up to 138 dB Sound Pressure Level
  • 2100W Class-D Amplifier
  • 40-20000 Hz linear frequency response
  • 1.75" Titanium Neodymium Compression Driver
  • 8" Midrange, 2.5" v.c.
  • 15" High Power Woofer
  • Bass Motion Control and FiRPHASE processing
  • M10 Rigging Points
  • IP Rated Powercon TRUE1 TOP IN/OUT

Product Speicifcations

  • Acoustical Specifications
    • Frequency Response:  40 Hz ÷ 20000 Hz
    • Max SPL @ 1m:  138 dB
    • Horizontal coverage angle:  100°
    • Vertical coverage angle:  60°
  • Transducers
    • Compression Driver:  1 x 1.0'' neo, 1.75'' v.c
    • Midrange:  8'' neo, 2.5'' v.c
    • Woofer:  15'', 3.0'' v.c
  • Input/Output Section
    • Input signal:  bal/unbal
    • Input connectors:  Combo XLR/Jack
    • Output connectors:  XLR
    • Input sensitivity:  -2 dBu/+4 dBu
  • Processor Section
    • Crossover Frequencies:  Bass/Mid:320Hz, Mid/High:1200Hz
    • Protections:  Thermal, Excurs., RMS
    • Limiter:  Soft Limiter
    • Controls:  Linear, 2 Speakers, High Pass, Volume
  • Power Section
    • Total Power:  2100 W Peak
    • High frequencies:  200 W Peak
    • Mid frequencies:  500 W Peak
    • Low frequencies:  1400 W Peak
    • Cooling:  Convection
    • Connections:  Powercon TRUE1 TOP IN/OUT
  • Standard Compliance
    • CE marking:  Yes
  • Physical Specifications
    • Cabinet/Case Material:  Plywood
    • Hardware:  3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear
    • Handles:  1 x Side
    • Grille:  Steel
    • Colour:  Black
  • Size
    • Height:  1075 mm / 42.32 inches
    • Width:  461 mm / 18.15 inches
    • Depth:  475 mm / 18.7 inches
    • Weight:  45 kg / 99.21 lbs
  • Shipping Information
    • Package Height:  530 mm / 20.87 inches
    • Package Width:  1110 mm / 43.7 inches
    • Package Depth:  490 mm / 19.29 inches
    • Package Weight:  51 kg / 112.44 lbs
