MX153C Omnidirectional Condenser Earset Microphone with TQG Cocoa

« return to previous page

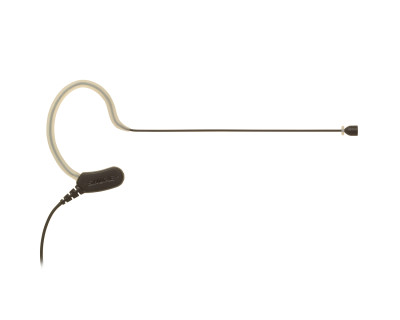

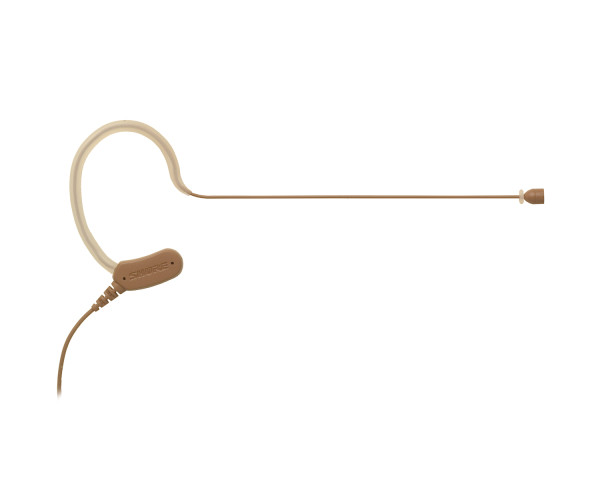

Shure MX153C Omnidirectional Condenser Earset Microphone with TQG Cocoa - Main Image
Shure MX153C Omnidirectional Condenser Earset Microphone with TQG Cocoa - Image 1
Shure MX153C Omnidirectional Condenser Earset Microphone with TQG Cocoa - Image 2
Price:
RRP: £228.00 inc VAT
Code:
SHUMX153COTQG
Manufacturer Code:
MX153C/O-TQG
Brand:
Shure

Quantity required:

Main Features

  • Subminiature, omnidirectional cartridge
  • TQG/TA4F connector for direct connectivity to Shure wireless bodypack transmitters
  • Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
  • CommShield® Technology guards against interference
  • Reinforced, attached soft flex cable
  • Matte cocoa finish
Share:

MX153C Omnidirectional Condenser Earset Microphone with TQG Cocoa

The Shure Microflex® MX153 is a professional subminiature earset microphone ideal for speech and other applications requiring low-profile discreet placement where improved gain before feedback over lavalier microphones is desired. Delivering exceptional speech clarity, the MX153 is ideal for corporate presentations, houses of worship, A/V conferencing and live sound reinforcement. Additionally, CommShield® Technology offers superior RF immunity from cellular devices and digital bodypack transmitters. Available in three colour options and direct TA4F connectivity to Shure bodypacks, the MX153 provides outstanding clarity in an extremely comfortable, over the ear design.

Product Features

  • Subminiature, omnidirectional cartridge offers superior speech clarity and enhanced plosive protection with no proximity effect
  • Terminated with TQG/TA4F connector for direct connectivity to Shure wireless bodypack transmitters
  • Ultra-lightweight, comfortable, flexible design is stable and easy to place over either ear
  • CommShield® Technology guards against interference from cellular RF devices and digital bodypack transmitters
  • Reinforced, attached soft flex cable
  • Matte cocoa finish
  • Includes protective storage pouch, 3 windscreens, and collar clip

Product Specifications

  • Transducer Type:  Electret Condenser
  • Polar Pattern:  Omnidirectional
  • Frequency Response:  20 to 20,000 Hz
  • Output Impedance:  N/A
  • Sensitivity open circuit voltage, @ 1 kHz, typical:  -41 dBV/Pa [1] (9  mV/Pa)
  • Maximum SPL:  1 kHz at 1% THD
  • 2500 Ω load:  107 dB SPL
  • 1000 Ω load:  107 dB SPL
  • Signal-To-Noise Ratio:  60 dB
  • Dynamic Range @ 1 kHz:
  • 2500 Ω load:  73 dB
  • 1000 Ω load:  73 dB
  • Self Noise equivalent SPL, A-weighted, typical:  34 dB
  • Common Mode Rejection:  20 to 20,000  Hz
  • Operating Temperature Range:  -18°C (0°F) to 57°C (135°F)
  • Polarity:  Positive pressure on diaphragm produces negative voltage on pin 3 with respect to pin 1.
  • Power Requirements:  +1–5 V DC (500 µA max.)
  • Weight:  19.76 g

What's in the Box?

  • Storage pouch
  • 3 x Windscreens
  • Collar Clip
