MVi Digital Audio Interface 5 onboard DSP settings XLR/USB

« return to previous page

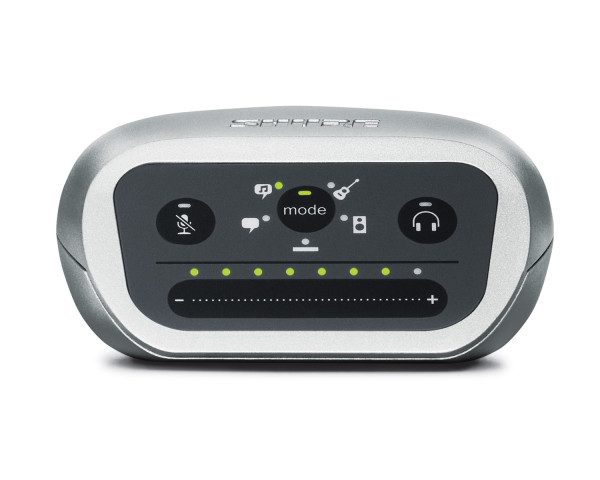

Shure MVi Digital Audio Interface 5 onboard DSP settings XLR/USB - Main Image
Shure MVi Digital Audio Interface 5 onboard DSP settings XLR/USB - Image 1
Shure MVi Digital Audio Interface 5 onboard DSP settings XLR/USB - Image 2
Price:
RRP: £104.40 inc VAT
Code:
SHUMVIDIG
Manufacturer Code:
MVI-DIG
Brand:
Shure

Quantity required:

Main Features

  • Easily adjust settings with the intuitive touch panel interface
  • Compatible with most iDevices (iPhone, iPad, and iPod) through Lightning interface
  • Compatible with most computers, tablets and smart phones through USB interface
  • Sleek design includes all-metal housing for professional-grade durability
  • Headphone output allows real-time monitoring of the live signal and audio from the computer or device
Share:

MVI-DIG Digital Audio Interface 5 onboard DSP settings XLR/USB

The Shure MVi is a compact digital audio interface used to connect a microphone, guitar, or other instrument to a computer or mobile device. Audio and power are delivered through a single USB or Lightning® connection to provide a simple and portable recording solution. The MVi headphone output delivers the microphone/instrument signal for real-time monitoring, in addition to audio from the computer for playback and overdubbing.

Product Features

  • Easily adjust settings with the intuitive touch panel interface
  • Compatible with most iDevices (iPhone, iPad, and iPod) through Lightning interface
  • Compatible with most computers, tablets and smart phones through USB interface
  • Sleek design includes all-metal housing for professional-grade durability
  • Headphone output allows real-time monitoring of the live signal and audio from the computer or device
  • Preset DSP modes include equalization and compression settings for specific applications

Product Specifications

  • MFi Certified:  Yes
  • DSP Modes (Presets):  Speech/Singing/Acoustic/Loud/Flat
  • Input:  Combination XLR and 6.35 mm (1/4") TRS
  • Input Impedance:  1/4 inch instrument input>1 Mohms
  • Bit Depth:  16-bit/24-bit
  • Sampling Rate:  44.1/48 kHz
  • Frequency Response:  20 Hz to 20,000 Hz [1]
  • Adjustable Gain Range:  (3-pin XLR: 0 to +36 dB) (6.35 mm (1/4") TRS: +9 dB)
  • Maximum Input Level:  (3-pin XLR : 0 dBV [1])  (6.35 mm (1/4") TRS: +9 dBV [1])
  • Headphone Output: 3.5 mm (1/8″)
  • Power Requirements:  Powered through USB or Lightning connector
  • Phantom Power:  +48V USB/+12V iOS
  • Mute Switch Attenuation:  Yes
  • Housing:  all metal construction
  • Net Weight:  310.0 g (10.93oz.)
  • Dimensions:  42 x 84 x 72 mm H x W x D
