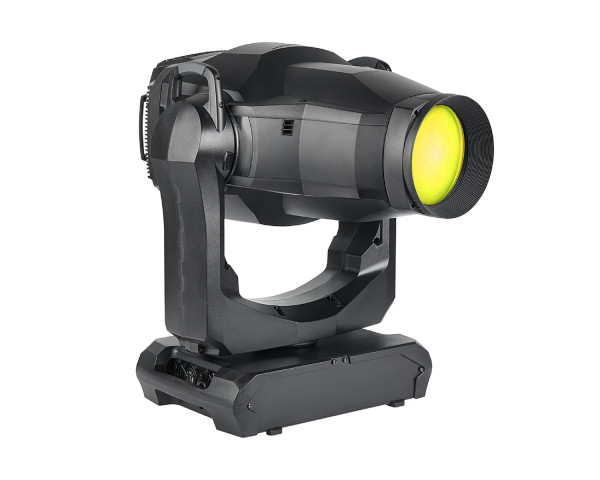

MAC Ultra Performance Moving Head + Framing 1150W 6000K LED

Product Features

Light Source

• 1150 W proprietary LED light engine
• 84 x 20 W white LEDs
• Minimum LED lifetime: >50,000 hours (see specs for further details)

Photometric Data

• Light Engine Luminous Output: 90,000 lumens
• Fixture Luminous Output: 46,500 lumens
• Peak Luminous Intensity: 3,000,000 cd
• CCT: 5800 K (+/- 250 K)

Optics

• 160 mm front Lens
• 1:7 zoom range (8.0° - 54° field angle)
• High resolution projection system

Dynamic Effects

• 0 - 100% continuous dimming and strobe effects
• Choice of four dimming curves
• CMY colour mixing
• Colour temperature control (5800 - 2850 K)
• Colour wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter
• Rotating gobo wheel 1 includes 5 interchangeable gobos + open
• Rotating gobo wheel 2 includes 5 interchangeable gobos + open
• Gobo animation wheel, indexing, continuous rotation with variable angle
• Frost (fade in)
• 4-facet prism
• Iris
• Zoom
• Focus with auto tracking
• Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
• Pan: 540°
• Tilt: 268°
• P3 videomapping of fixture colour and/or intensity (10 segments)
• Pre-programmed effects: Two ranges of pre-programmed FX

Cooling and Noise

• Low noise cooling system
• User-selectable output vs. sound level control

Construction

• Height (head straight up): 864 mm (34.1 in.)
• Height (maximum): 876 mm (34.5 in.)
• Weight: 44.0 kg (97.0 lbs.)

Control

• DMX-512 in/out
• Ethercon in/out for P3, Art-Net, sACN
• Built in Ethernet switch with fail-safe bypass

Product Specifications

Dynamic Effects

• Pre-programmed effects:  Two ranges of FX, independent or synchronised/combined
• Colour mixing:  CMY, independently variable 0 - 100%
• Colour wheel:  6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random colour
• Gobo animation:  Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
• Iris:  Variable 0 - 100%, pulse effects
• Framing:  Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
• Prism:  4-facet, indexing and continuous rotation
• Frost:  Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism
• Dimmer/shutter:  0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
• Colour temperature control:  Variable 5800 - 2850 K
• Dimming options:  Choice of four dimming curves
• Zoom:  Motorized
• Pan:  540°, coarse & fine control and speed
• Tilt:  268°, coarse & fine control and speed
• P3:  Videomapping of fixture colour and/or intensity with variable crossfade between DMX control and video control
• Focus:  Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
• Rotating gobo wheel 1:  5 x interchangeable gobos + open, indexing, continuous rotation and shake
• Rotating gobo wheel 2:  5 x interchangeable gobos + open, indexing, continuous rotation and shake
• Gobo Color Temperature Correction:  Automatic

Control and Programming

• Control Protocols:  DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
• Protocol detection:  Automatic
• DMX channels:  Standard 48, Extended 58
• Setting and addressing:  Display Menu, RDM, RDM over Art-Net or P3
• DMX Modes:  Two
• 16-bit Controllable Parameters:  Dimming, Color Mixing + CTC, Gobo Rotation/Indexing, Framing, Iris, Zoom, Focus, Pan and Tilt
• Fixture Identification:  User-settable ID number
• DMX compliance:  USITT DMX512-A
• RDM compliance:  ANSI/ESTA E1.20
• Art-Net Compliance:  Art-Net 1, 2, 3 and 4; including RDM over Art-Net
• sACN Compliance:  ANSI E1.31 - 2016
• Martin P3 Compliance:  P3 System Controller Software 5.1.0 or newer
• DMX/RDM Transceiver:  Galvanic-isolated RS-485
• Ethernet Transceiver:  10/100Mbit (with fail-safe bypass)
• Firmware update:  USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
• Local User Interface:  Backlit LCD Display with battery-powered operation

Optics

• Front lens diameter:  160 mm
• Zoom range:  8.0° - 54° (1:7 field angle)
• Light source:  84 x 20 W White LEDs in a custom Martin engine
• Minimum LED lifetime:  >50,000 hours (to >80% luminous output)/ >20,000 hours (to >90% luminous output)*
• Maximum Total LED Engine Power:  1150 W
• *Figure obtained under manufacturer's test conditions

Photometric Data

• Light engine luminous output:  90,000 lumens
• LED refresh rate :  3000 Hz
• Standard
• Fixture luminous output:  46,500 lumens
• CRI (Color Rendering Index):  66 (+/- 3)
• TM-30 Rf (IES TM-30-15 Fidelity Index):  66
• TM-30 Rg (IES TM-30-15 Gamut Index):  95
• CCT:  5800 K (+/- 250 K)
• Peak Luminous Intensity:  3,000,000 cd
• With Spectral Enhancement Filter at 5300 K
• Fixture luminous output:  23,500 lumens
• CRI (Color Rendering Index):  83 (+/- 3)
• With CTO and Cyan at 3200 K
• Fixture luminous output:  12,000 lumens
• CRI (Color Rendering Index):  90 (+/- 3)
• * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.

Construction

• Housing:  High-impact flame-retardant thermoplastic
• Colour:  Black
• Protection rating:  IP20

Gobos

• Maximum image diameter:  30 mm (1.181 in.)
• External diameter:  37.5 mm +0 / -0.2 mm (1.476 in. +0 / -0.008 in.)
• Maximum gobo thickness:  1.1 mm (0.04 in.)
• Coating:  Heavy matted aluminium
• Material:  Borofloat 33

Installation

• Mounting points:  2 pairs of 1/4-turn points for 106 mm (4.17 in.) centre-to-centre omega brackets
• Location:  Dry location only, must be fastened to surface or structure
• Orientation:  Any
• Minimum distance to combustible materials:  0.2 m (8 in.)
• Minimum distance to illuminated surfaces:  4.75 m (15.6 ft.)

Connections

• DMX and RDM data in/out:  5-pin locking XLR
• AC mains power input.:  Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
• Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass:  Neutrik etherCON
• Firmware from flash memory:  USB 2.0 port

Electrical

• AC power:  200-240 V AC nominal, 50/60 Hz
• Power supply unit:  Auto-ranging electronic switch mode
• Maximum total power consumption:  1450 W
• Typical half-cycle RMS inrush current at 230 V, 50 Hz:  17 A
• Maximum total current at 200 V:  8.0 A
• Maximum total current at 240 V:  6.7 A
• Power consumption, all effects static, zero light output:  100 W
• TYPICAL POWER AND CURRENT
• 208 V, 60 Hz:  6.8 A, 1380 W, PF 0.99
• 230 V, 50 Hz:  6.0 A, 1380 W, PF 0.99
• 240 V, 50 Hz:  5.8 A, 1380 W, PF 0.99
• Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
• PF = power factor.

Thermal

• Cooling:  Forced air (temperature regulated, low noise)
• Maximum ambient temperature (Ta max.):  40° C
• Minimum ambient temperature (Ta min.):  5° C
• Maximum surface temperature, steady state, at 40° C ambient:  85° C (185° F)
• Total heat dissipation (calculated, +/- 10%):  4950 BTU/hr.

Acoustic Data

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output):  36.5 dB(A)
• Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low):  35.1 dB(A)

Physical

• Weight:  44.0 kg (97.0 lbs.)
• Minimum centre-to-centre distance in side-by-side installation:  830 mm (32.7 in.)
• Length (head):  660 mm (26.0 in.)
• Length (base):  468 mm (15.5 in.)
• Width (base):  312 mm (12.3 in.)
• Width (across yoke):  520 mm (20.5 in.)
• Height (head straight up):  864 mm (34.1 in.)
• Height (maximum):  876 mm (34.5 in.)

What's in the Box?

• Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
• Safety and Installation Manual
• Heavy-frost/wash filter (prism replacement): P/N MAR-91614060HU
