M40W6S 6" Shotgun Hanging Gooseneck Ceiling Microphone

« return to previous page

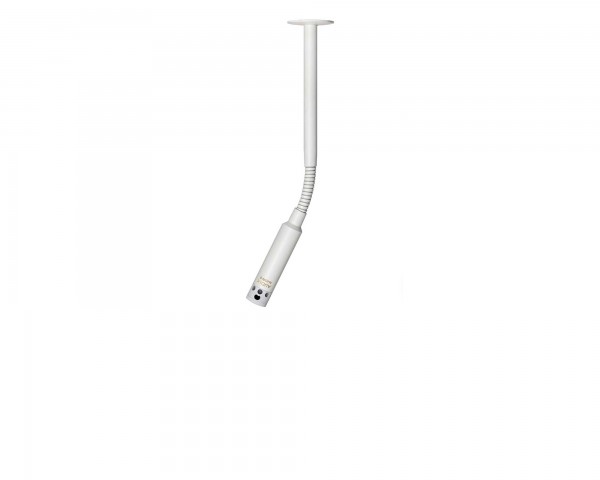

Audix M40W6S 6 Shotgun Hanging Gooseneck Ceiling Microphone - Main Image
Price:
RRP: £502.00 inc VAT
Code:
ADXM40WS6
Manufacturer Code:
AX-M40W/S6
Brand:
Audix

Quantity required:

Main Features

  • Supercardioid version of M40 6" Gooseneck Mic
  • Optimized for voice recognition
  • Extremely low noise, high sensitivity
  • Immunity from RF interference
  • 12mm gold vapor diaphragm
  • White finish
Share:

M40W/S6 Mini 6" G/Neck Condenser+ Preamp Supercardiod White

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the ceiling mounted M40 include Video & Teleconferencing (VTC), distance learning, hospital rooms, surveillance and ambient room miking.

The M40 ceiling microphone has complete immunity from RF interference caused by cell phones and GSM devices. The M40 comes with a super cardioid capsule, allowing the microphone to be used in a wide variety of applications.

The M40 installed ceiling microphone is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a terminal block connector. For installations where plenum rated cable is to be used a UL rated, metal plenum junction box is available.

Product Features

  • Optimized for voice recognition
  • Immunity from RF interference
  • Point and shoot directivity
  • Integrated preamp circuitry
  • 12mm gold vapor diaphragm
  • Extremely low noise, high sensitivity
  • White finish
  • 6" Gooseneck

Product Specifications

General

  • Transducer Type: Condenser
  • Frequency Response: 60 Hz - 10 kHz
  • Polar Pattern: Super Cardioid
  • Output Impedance: 150 ohms
  • Sensitivity: 37 mV / Pa @ 1k
  • Signal/Noise Ratio (A-weighted): 72 dB
  • Equivalent Noise Level (A-weighted): 22 dB
  • Maximum SPL @ .5% THD: ≥130 dB
  • Dynamic Range: 108 dB
  • Power Requirements: 8 - 52 V Phantom
  • Connector: 3-pin XLRm
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
  • Materials/Finish: Copper and Steel Powder Coat

Physical & Dimensions

  • Weight: 20g
  • Length: 54mm

What's in the Box?

  • 1 x CONN170F 1' Integrated Microphone Cable
  • 1 x CONN170M The Mating Terminal Connector
