Main Features
Dedicated partner sub for P18 with matching footprint
Extends LF performance to 28Hz
141dB peak SPL
Can be deployed in standard and cardioid modes
Threaded inserts on the back and on both sides for connection of mounting accessories

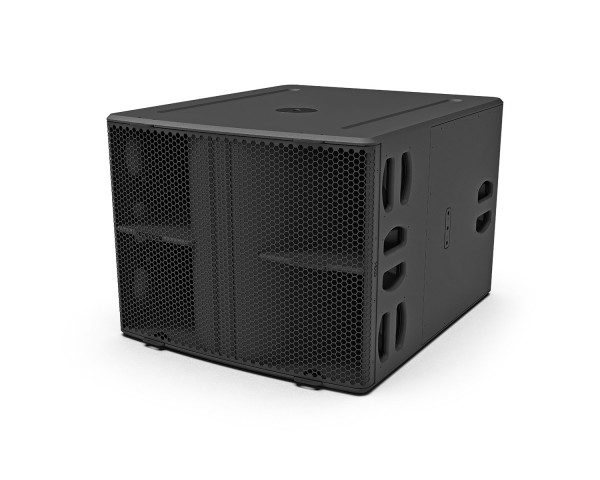

Measuring 775mm wide x 594mm high x 905mm deep and weighing 59Kg, the L20 sub employs a 20″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 28Hz-120Hz, and 141dB Peak SPL, The L20 is specially designed in a footprint to match the P18, making it a perfect partner in flown applications, and for use as a drum fill or side fill.
Product Features
Dedicated partner sub for P18 with matching footprint
Extends LF performance to 28Hz
141dB peak SPL
Can be deployed in standard and cardioid modes
Threaded inserts on the back and on both sides for connection of mounting accessories
Standard fitting M20
Product Specifications
Frequency Response @-6 dB: 28 Hz to 120 Hz
Peak SPL@1m: 141 dB Peak
Operating Voltage: 80 Vrms (180 Vpeak)
Crossover Frequency: 60 Hz, 85 Hz or 120 Hz
Nominal Impedance: 4 Ohms
Components: 1 x Neodymium 20” 4 Ohms long excursion
Connectors: 2 x NL4, 4 poles connectors
Rigging points: 1 x universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
Material: Custom made bent plywood of baltic birch and poplar
Finish: Black or White structural paint
Front Finish: Steel front grille
Height x Width x Depth: 594mm x 755mm x 905 mm (23.4” x 29.7” x 35.6”)
Weight: Net: 59 kg (130 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
System Operation:
Recommended powering solution: NXAMP4x4mk2 Powered TDcontroller: Up to 2 x L20 per channel
Optional powering solution: NXAMP4x1mk2 Powered TDcontroller (Bridged): 1 x L20 per channel
NXAMP4x2mk2 Powered TDcontroller (Bridged): 1 x L20 per channel
