KL Fresnel 4 FC RGBMA LED 4" Fresnel 80W 10-45° Zoom

« return to previous page

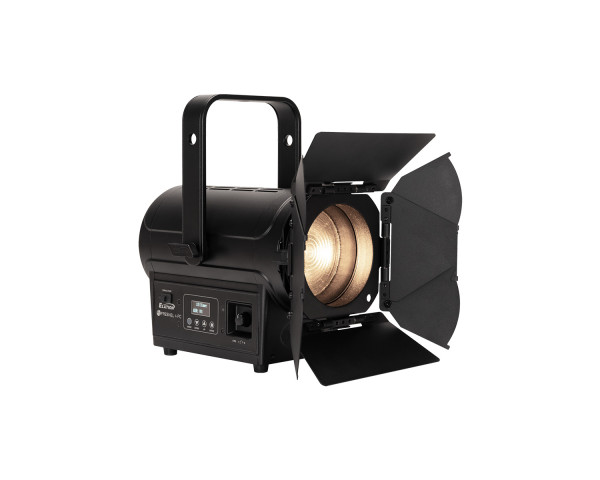

Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Main Image
Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Image 1
Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Image 2
Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Image 3
Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Image 4
Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Image 5
Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Image 6
Elation KL Fresnel 4 FC RGBMA LED 4 Fresnel 80W 10-45° Zoom - Image 7
Price:
RRP: £786.00 inc VAT
Code:
ELA0136
Manufacturer Code:
1236100194
Brand:
Elation

Quantity required:

Main Features

  • 80W RGBMA LED Engine
  • ColourTune Technology Software Integration
  • 2226 Total Fixture Lumen Output (Sphere)
  • 10° to 45° Wide Manual Zoom
  • Stand-Alone control with Encoder and LED Display
  • Smooth 16-bit Selectable Dimming Modes and Curves
Share:

KL Fresnel 4 FC RGBMA LED 4" Fresnel 80W 10-45° Zoom

The KL FRESNEL 4 FC™ is a full-colour-spectrum LED fixture that provides high output, precise colour temperature control, full-spectrum colour rendering, and even wash coverage. Optimised for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and colour quality, while offering a wide array of rich saturated colours and subtle pastels. The KL FRESNEL 4 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine with a manual zoom range of 10° to 45°. The incorporation of Elation's ColourTune Technology ensures outstanding colour rendering quality, precise CCT control, and Fidelity Selection Options. Remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units. The KL FRESNEL 4 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, colour temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.

Product Features

  • 80W RGBMA LED Engine
  • ColourTune Technology Software Integration
  • 2226 Total Fixture Lumen Output (Sphere)
  • 10° to 45° Wide Manual Zoom
  • Stand-Alone control with Encoder and LED Display
  • Smooth 16-bit Selectable Dimming Modes and Curves
  • LED Refresh Rate Adjustment
  • Flicker Free Operation for TV and FILM
  • RDM (Remote Device Management)
  • 8-leaf Barn Doors and Gel Frame Included

Product Specifications

Source

  • 80W 6000K RGBMA LED Engine
  • 50,000 Hour Average LED Life

Photometric Data

  • Total Lumen Output:
    • 2226 (Integrating Sphere)
    • 2174 (Goniometer)
  • CRI:  94.2
  • TLCI:  87
  • Zoom Range:  10° - 45°
  • Beam Angle:  11° - 47.6°
  • Field Angle:  21.5° - 72.8°

Effects

  • Manual Zoom
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves

Colour

  • High Brightness and High Fidelity Output Options
  • RGBMA Colour Array
  • CMY Emulation
  • 16-bit Fully Variable CCT: 2400K - 8500K
  • Green/Magenta Shift
  • Dim-to-Warm Fade
  • Virtual Gel Swatch Book

Control / Connections

  • 9 DMX Channel Modes (1, 2, 6, 11, 18, 19, 9, 14, 15)
  • Manual and DMX-Controlled Dimmer and Colour
  • Direct Access Encoder
  • 4-Button Control Panel with LED Display
  • RDM (Remote Device Management)
  • 3/5-pin DMX and IP65 Locking Power In/Out Connection

Electrical / Thermal

  • AC 100-240V – 50/60Hz
  • 85W Max Power Consumption
  • -15°C to 45°C (5°F to 113°F)
  • Power Thru Capacity: 11A (14 units @110V; 31 units @240V)
  • BTU/hr (+/- 10%): 289.85

Size / Weight

  • Length: 190mm (7.5”)
  • Width: 312.8mm (12.3”)
  • Vertical Height: 223mm (8.8”)
  • Weight: 3.71kg (8.2 lbs.)

What's in the Box?

  • Gel Frame
  • 8-leaf Barn Doors
  • IP65 Locking Power Cable
