J+4 Stereo Line Driver Balanced -10dB to +4dB Interface

« return to previous page

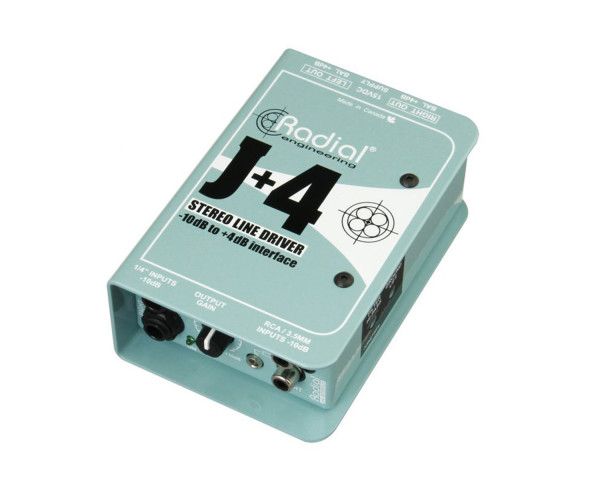

Radial J+4 Stereo Line Driver Balanced -10dB to +4dB Interface - Main Image

Radial J+4 Stereo Line Driver Balanced -10dB to +4dB Interface - Image 1

Radial J+4 Stereo Line Driver Balanced -10dB to +4dB Interface - Image 2

Radial J+4 Stereo Line Driver Balanced -10dB to +4dB Interface - Image 3

Radial J+4 Stereo Line Driver Balanced -10dB to +4dB Interface - Image 4

Radial J+4 Stereo Line Driver Balanced -10dB to +4dB Interface - Image 5

Radial J+4 Stereo Line Driver Balanced -10dB to +4dB Interface - Image 6

Price:: RRP: £317.17 inc VAT
Code:: RADJ4
Manufacturer Code:: R800-8015-00
Brand:: Radial

Main Features

Stereo preamp boost signals to +4dB balanced line level
Increases gain for low output instruments & music players
Transformer isolated to eliminate noise caused by ground loops
Multiple input connector options to interface with any device
Number of channels: 2
Frequency response: 20Hz ~ 20KHz (± 2dB)

The J+4™ is a stereo interface designed to accept unbalanced low output devices such as instruments, computers or mobile devices and boost their signal to a balanced +4dB level for connection to professional audio recording and playback equipment.

The J+4 allows you to boost nearly any stereo signal up to a +4dB balanced line level output, which can be sent over long distances without signal loss and connected directly to pro audio equipment such as mixers or recording interfaces. Multiple input connectors are available for integration with a variety of devices, including a stacked set of ¼" jacks for DJ mixers or keyboards, RCAs for CD players and a mini 3.5mm jack for smartphones and tablets. The J+4 delivers exceptional sonic performance, and is able to provide clean gain and eliminate noise by combining the advantages of active signal buffering with transformer isolation.

Product Features

Stereo preamp boost signals to +4dB balanced line level
Increases gain for low output instruments & music players
Transformer isolated to eliminate noise caused by ground loops
Multiple input connector options to interface with any device

Product Specifications

Audio circuit type: Active -10dB ~ +4dB line converter, transformer isolated
Number of channels: 2
Frequency response: 20Hz ~ 20KHz (± 2dB)
Dynamic range: 102dB
Total harmonic distortion: 0.004% @ 1kHz, +10dBu output
Phase Deviation: 0.5° @ 100Hz; 4° @ 20Hz
Input Impedance: 10k Ohms, unbalanced
Output Impedance: 1.6k Ohms, balanced
Maximum Input: +17dBu @ 1kHz, 1% THD+N
Maximum Output: +15dBu @ 1kHz, 1% THD+N

Features

Ground lift, HPF, Level Control
Input Connectors: 1/4", RCA, 3.5mm
Output Connectors: XLR

General

Construction: 14-gauge steel
Size (L x W x D): 84 x 127 x 48mm (3.3" x 5.0" x 2")
Weight: 0.70 kg (1.55 lbs)
Shipping size (L x W x D): 102 x 76 x 165mm (4" x 3" x 6.5")
Shipping weight: .87 kg (1.92 lbs)
Power: +15VDC/400mA adapter Included
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
