IX30:8 Networked DSP Power Amp 8x375W @ 4Ω Dante 1U

« return to previous page

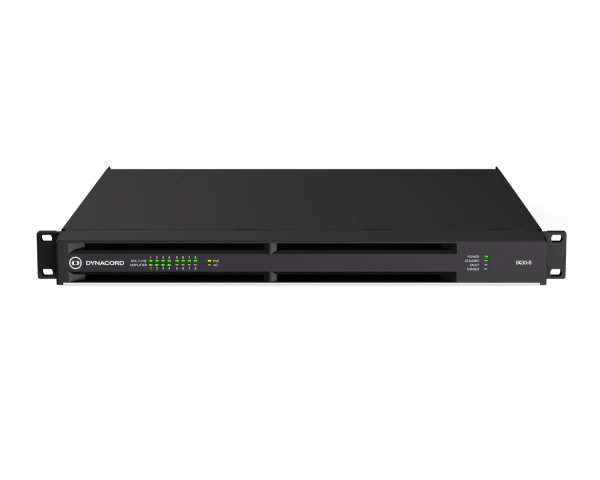

Dynacord IX30:8 Networked DSP Power Amp 8x375W @ 4Ω Dante 1U - Main Image

Dynacord IX30:8 Networked DSP Power Amp 8x375W @ 4Ω Dante 1U - Image 1

Dynacord IX30:8 Networked DSP Power Amp 8x375W @ 4Ω Dante 1U - Image 2

Dynacord IX30:8 Networked DSP Power Amp 8x375W @ 4Ω Dante 1U - Image 3

Dynacord IX30:8 Networked DSP Power Amp 8x375W @ 4Ω Dante 1U - Image 4

Dynacord IX30:8 Networked DSP Power Amp 8x375W @ 4Ω Dante 1U - Image 5

Price:: RRP: £4,012.80 inc VAT
Code:: DYNIX308
Manufacturer Code:: F.01U.411.026
Brand:: Dynacord

Main Features

8-channel networked DSP amplifier with 3 kW powerTANK for Hi-Z and Lo-Z operation
8 x 8 Dante with OCA/AES70 remote control, 8 mic/line inputs usable as Dante break-in
96 kHz fully featured DSP matrix mixer
MXE-style TaskEngine for system logic, automation, scheduling and integration
ghostPOWER via PoE to maintain DSP, Dante network and mic/line inputs
High efficiency ecoRAIL technology for lower operating costs

The IX30:8 is an 8-channel networked DSP amplifier with 3 kW total output power. Capable of driving Hi-Z or Lo-Z loads with powerTANK technology, the IX30:8 is ideal for a wide range of applications including sports venues, houses of worship, live performance spaces and hospitality.

IX30:8 features eight (8) Dante inputs, eight (8) Dante outputs and eight (8) mic/line inputs that can be used as Dante break-in points. The natively operating 96 kHz DSP features a fully equipped 16 x 16 matrix mixer, EQs, dynamics, Dynacord FX and FIR-Drive capability. All 16 inputs feature pilot-tone detection, while the eight (8) Dante and eight (8) amplifier outputs allow to add pilot tones up to 30 kHz.

The IX30:8 uses Dynacord‘s patented ecoRAIL technology for optimising energy consumption. ghostPOWER via POE maintains the entire DSP, the Dante network and all mic/line inputs active, independent of the mains power. The integrated MXEstyle TaskEngine allows for system automation, scheduling, control, and integration to third party devices.

IX series is fully integrated in Dynacord‘s SONICUE Sound System Software and can be used as a SONICUE control server, for direct use with the WPN1 wall panel as well as TPC-1, iOS and Windows devices.

Product Features

8-channel networked DSP amplifier with 3 kW powerTANK for Hi-Z and Lo-Z operation
8 x 8 Dante with OCA/AES70 remote control, 8 mic/line inputs usable as Dante break-in
96 kHz fully featured DSP matrix mixer and MXE-style TaskEngine for system logic, automation, scheduling and integration
ghostPOWER via PoE to maintain DSP, Dante network and mic/line inputs
High efficiency ecoRAIL technology for lower operating costs

Product Specifications

Output Power

Total rated output power: 3,500
Number of amplifier channels: 8
All channels driven equally:
- 2 Ω: 375 W
- 2.7 Ω: 375 W
- 4 Ω: 375 W
- 8 Ω: 375 W
Maximum per channel:
- 2 Ω: 1.000 W
- 2.7 Ω: 800 W
- 4 Ω: 600 W
- 8 Ω: 1.000 W
Bridge:
- 2 Ω: 750 W
- 2.7 Ω: 750 W
- 4 Ω: 750 W
- 8 Ω: 750 W
All channels driven equally:
- 70 V: 375 W
- 100 V: 375 W
Maximum per channel:
- 70 V: 750 W
- 100 V: 1.000 W
Max. output voltage Hi-Z/8Ω mode, per channel: 145 Vpk
Max. output current Lo-Z/4Ω mode, per channel: 33 Apk

Amplifier

Voltage Gain Lo-Z mode, ref. 1 kHz: 32 dB, adjustable 20.0 - 44.0 dB
Input sensitivity, direct drive mode: +6 dBu ( 1.55 V), fixed
THD+N (3 dB below max. AES17, 1 kHz) : <0,1 %
Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω): < -80 dB
Frequency response (ref. 1 kHz, analogue in-speaker out): 20 Hz to 20 kHz (±1 dB)
Sampling rate: 96 kHz internal, Dante 48/96 kHz switchable
Latency (analogue in-speaker out): 0.77 ms
Number of mic/line inputs: 4
Gain: 0 to 60 dB
Maximum input level: +18 dBu
Phantom power: + 48 V, switchable per input
Input impedance: >10 kΩ
E.I.N (A-weighted) @ 150Ω: -127 dBu
Crosstalk (ref. 1 kHz, 12 dB below max. 8Ω): <-80 dB

Connectivity

Mic/Line inputs: 4 x 5-pin Euroblock-style, male
Speaker outputs: 2 x 8-pin Euroblock-style, 2.5 mm² (12 AWG)
Network: 2 x RJ45
Control port: 1 x 8-pin Euroblock-style
Mains power input: 1 x IEC C14

Network

General: 1000base-T/100base-TX, integrated switch
Redundancy modes: Glitchfree (PRIMARY/SECONDARY), RSTP
Backup power supply (ghostPOWER): 1 x PoE (IEEE802.3af) on PRIMARY port
Network audio (inputs x outputs): 8 x 8, 48/96 kHz, Dante

Control Port

GPIO control port: 3 ports, switchable: analogue in/digital in/digital out
Analogue input range: 0 V to +13 V, 133 kΩ input resistance
Digital input limits
- ON: <1,5 V
- OFF: >2,0 V, internal pull-up (10kΩ / 10V)
Digital outputs
- ON: output switched to GND, max. 200 mA
- OFF: open collector
Reference voltage output: +10V, max. 200 mA, supervised, short circuit protected
READY/FAULT: Galvanic isolated relay, max. 30 VDC/500 mADC

General

Rated power consumption (1/8 max. output power): 575 W
Eco mode: 39 W
Stand-by mode: <15 W
Power requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
Power Supply Technology: Switching mode power supply with digitally controlled power factor correction
Protections: Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Lim colspan="4"iters, Mains Over-/Under Voltage Protection
Cooling: Front-to-rear, temperature controlled fan, supervised
Ambient Temperature Limits: +5 °C to +40 °C (+40 °F to +105 °F)
Dimensions: 483 mm x 44,1 mm x 447 mm
Weight: 8,75 kg (19.3 lbs)
