IT4X3500HDB I-Tech HD Touring Amp 4x3500W @ 2Ω 2U Binding Post

« return to previous page

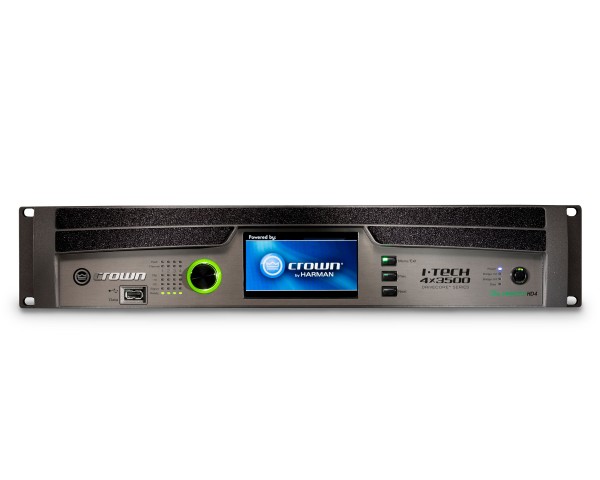

Crown IT4X3500HDB I-Tech HD Touring Amp 4x3500W @ 2Ω 2U Binding Post - Main Image
Crown IT4X3500HDB I-Tech HD Touring Amp 4x3500W @ 2Ω 2U Binding Post - Image 1
Crown IT4X3500HDB I-Tech HD Touring Amp 4x3500W @ 2Ω 2U Binding Post - Image 2
Price:
RRP: £12,216.00 inc VAT
Code:
CROIT4X3500
Manufacturer Code:
CRO0283
Brand:
Crown

Quantity required:

Main Features

  • The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)
  • Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (15%)
  • BSS OMNIDRIVEHD DSP processing with industry leading IIR filters and linear phase FIR filters
  • The only product available with analog, AES, CobraNet, HiQnet and Ethernet connectivity
  • Front panel USB connector transfers presets to/from a USB drive to the amp's DSP
  • Includes SLM (Sweep Load Monitoring) with system-level diagnostics
Share:

IT4X3500HD Amp+BSS Omnidrive 4x4000W @ 4ohm 2U Binding Post

The I-Tech 4x3500HD amplifier is the industry's first high-powered tour sound amplifier featuring four inputs, Analog, AES3, and CobraNet™, fully routable to any one of 4 outputs.  Each channel features a complete compliment of OMNIDRIVEHD™ Processing, including the acclaimed LevelMAX™ Limiter Suite, and support for linear phase FIR filters as used in the latest JBL V5 loudspeaker tunings.  Combine that with Crown's patented Class-I technology delivering uncompromising power output across all four channels, and it's easy to see why the I-Tech 4x3500HD is the flagship tour sound amplifier from Crown.

Product Features

  • True Ethernet backbone – fast, reliable and scalable
  • Color LCD provides users with diagnostics and presets for easy setup
  • Includes SLM (Sweep Load Monitoring) with system-level diagnostics
  • Front panel USB connector transfers presets to/from a USB drive to the amp’s DSP
  • New software interface based on customer feedback manages presets, provides easier system-level changes, and includes a configuration wizard
  • The only product available with analog, AES, CobraNet®, HiQnet™ and Ethernet connectivity
  • BSS OMNIDRIVEHD™ DSP processing with industry leading IIR filters and linear phase FIR filters
  • High common-mode rejection eliminates hum and RFI on input cables
  • Professional-grade connectors for all inputs and outputs
  • Full power-supply voltage is always available, allowing instantaneous power on demand
  • Quality-graded components let you safely drive the amplifier harder
  • More total capacitance provides tremendous energy reserves for power bursts
  • The only tour sound amplifier that provides four routable inputs to any output (analog, AES, VDrive, or CobraNet)
  • LevelMAX™ peak voltage and RMS power limiters communicate with each other, resulting in smooth and accurate response, better sound
  • Sixth generation patented Class-I (BCA®) circuitry couples power efficiently to the load and provides low AC current draw
  • Global Power Supply; universal AC input accepts 100-240VAC, 50/60 Hz (±15%)

Product Specifications

General

  • Channels: 4 inputs, 4 outputs (Analog, AES 3, VDrive, CobraNet)
  • Sensitivity: Adjustable in 0.1dB increments from 1.28Vrms to 8Vrms
  • Damping Factor: > 5000
  • Signal to Noise Ratio: ≥ 108dB
  • THD (full rated power, 20 Hz - 20 kHz): 0.35%
  • Frequency Response: ± 0.25dB
  • Intermodulation Distortion (from 0 dB down to -40 dB): 0.06%
  • Crosstalk: > 80dB
  • Common Mode Rejection: > 80dB typical

Physical & Dimensions

  • Height: 3.3"
  • Width: 19"
  • Depth: 16.95"
  • Weight: 29lbs
