IC6-1082/26W 8

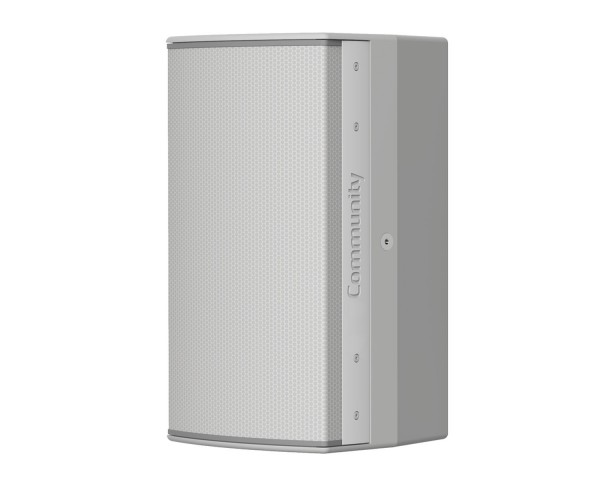

Community IC6-1082/26W 8 2-Way Install Loudspeaker 120x60° White - Image 2

Price:: RRP: £1,706.40 inc VAT
Code:: COMIC6108226W
Manufacturer Code:: 911.1010.900
Brand:: Community

Main Features

Excellent LF extension and output in a very small enclosure
Exceptional fidelity with elegant I SERIES aesthetics
Large, field-rotatable HF horn for smooth, consistent coverage
Low impedance (8 ohm) or 70V/100V models available
Finish: White
Coverage: 120°x 60°

IC6-1082/26W 8" 2-Way Install Loudspeaker - White

I SERIES Compact 600 loudspeakers provide excellent acoustic performance, flexibility and elegant aesthetics for a diverse range of applications in today's performance venues. Designed to support the goals of systems integrators and consultants in need of very compact loudspeakers with exceptional near field fidelity for foreground or background music applications and articulate voice projection with very high output capabilities for fill and distributed applications. I SERIES Compact loudspeakers are engineered to be used alone or integrated into arrays along with I SERIES Point Source (IP) or Subwoofer (IS) models using the comprehensive selection of available BalancePoint™ Flyware modular array brackets.

The IC6-1082 is designed for maximum performance in a minimal size enclosure. The large, rotatable horn coupled to a 1.75" (44mm) diaphragm HF driver provides consistent directivity and smooth response through the critical voice band, then seamlessly integrates with the high output 8" LF through the crossover region. The precisely engineered low velocity, flared port ensures low distortion, extended LF performance at any output level. Additionally, 8 ohm or 70V/100V models expand application flexibility both indoors and out.

Product Features

Excellent LF extension and output in a very small enclosure
Exceptional fidelity with elegant I SERIES aesthetics
Large, field-rotatable HF horn for smooth, consistent coverage
Low impedance (8 ohm) or 70V/100V models available
Finish: White
Coverage: 120°x 60°

Product Specifications

Transducers:LF 1 x 8" (203mm) ferrite driver, 1.8" (45mm) voice coil; HF 1 x 1" (25mm) exit, 1.75" (44mm) voice coil, advanced polymer diaphragm, ferrite compression driver
Operating Range: 52 Hz to 19.5 kHz
Sensitivity (1W/1m): 94 dB
Power Handling (Low Impedance model): 250W continuous @ 8 ohms
Continuous Max Output: 118 dB (125 dB Peak)
Nominal Beamwidth (H x V): /26 - 120° x 60°; /96 - 90° x 60°
Finish: Black or White low gloss, uniformly textured painted 15mm Baltic Birch plywood with powder-coated steel grille; Outdoor (WR/WT): 15mm PolyGlas™, Grey heavily textured exterior-rated coating with powder-coated marine-grade aluminium grille
Dimensions (H x W x D):18.75" x 10.40" x 10.63" (476 x 264 x 270 mm)

For full specifications please find the ‘Spec Sheet’ located in the downloads tab above.
