HT4000 Handheld TX for C5WL1/D5WL1 Caps 760-789.9MHz

« return to previous page
Clearance

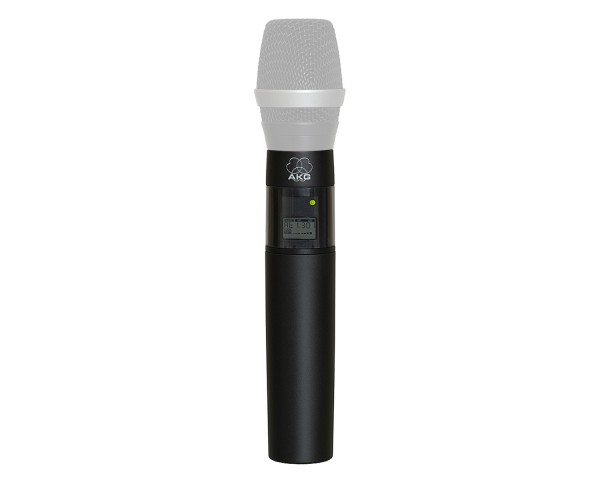

AKG HT4000 Handheld TX for C5WL1/D5WL1 Caps 760-789.9MHz - Main Image
Price:
RRP: £408.50 inc VAT
Code:
AKGHT4000
Manufacturer Code:
HT4000
Brand:
AKG

Quantity required:

Main Features

  • Capsule sold separately
  • 760-789.9MHz
  • Wideband UHF handheld transmitters with interchangeable acoustics
  • Wideband UHF pocket transmitters with die-cast metal housings
  • Pre-matched, optimised frequency groups for quick, easy frequency selection (Presets)
  • Backlit LCD Displays for easy status monitoring
Share:

HT4000 Handheld Transmitter for C5WL1/D5WL1 Capsules (760-789.9MHz)

Wideband UHF handheld transmitter for use with interchangeable microphone elements; 30 MHz wide UHF band with up to 1200 selectable frequencies; backlit display and jog switch for ease of use; up to 50 mW RF radiation for reliable transmission; operates for up to 15 hours on dry batteries, 12 hours on optional BP 4000 battery pack and displays remaining battery life. The HT 4000 is a professional handheld transmitter with a rugged body and connects to a choice of six different microphone elements to cover a wide range of applications. The 30 MHz wide UHF band provides up to 1200 selectable frequencies and several preset frequency banks for various countries make it easy to set up a multichannel system. A pilot tone system continuously transmits transmitter status data including MUTE switch position and remaining battery life to the receiver. Integrated charging contacts let you charge the optional BP 4000 battery pack without having to remove it from the transmitter. After only one hour, the battery pack will be fully charged and you can use the transmitter for 12 hours continuously. The HT 4000 will transmit the excellent audio of the AKG microphone elements in all its splendor even over large distances or in difficult environments.

Product Features

  • Capsule sold separately
  • 760-789.9MHz
  • Wideband UHF handheld transmitters with interchangeable acoustics
  • Wideband UHF pocket transmitters with die-cast metal housings
  • Pre-matched, optimised frequency groups for quick, easy frequency selection (Presets)
  • Backlit LCD Displays for easy status monitoring
  • Simple, fool-proof setup procedure using Jog element for quick navigation
  • Integrated charging contacts for convenient recharging of optional battery pack
  • Continuous operation of up to 15 hrs. with 2 x AA alkaline batteries or up to 12 hrs. with optional BP 4000 rechargeable battery pack
  • Up to 18 intermodulation-free frequencies available on each 30 mHz frequency band
  • Wide range of optional accessories available for system customisation

Product Specifications

  • Audio Bandwidth: 35 –20,000 Hz
  • Frequency Range: 760-789.9MHz
  • Modulation Method: FM
  • Rated Deviation: ±20 kHz nominal
  • S/N Ratio (A-weighted): > 120 dBA
  • Radiated RF Power: 50 mW ERP
  • Input Level: 140 dB-SPL @ nominal deviation
  • Current Consumption: <125 mA
  • Power Requirement:
    • 2AA 1.5-V batteries or
    • Rechargeable pack BP 4000

What's in the Box?

  • HT4000 Handheld Transmitter
  • 2x AA Batteries
  • Mic Clip
  • User Manual

Product Downloads
