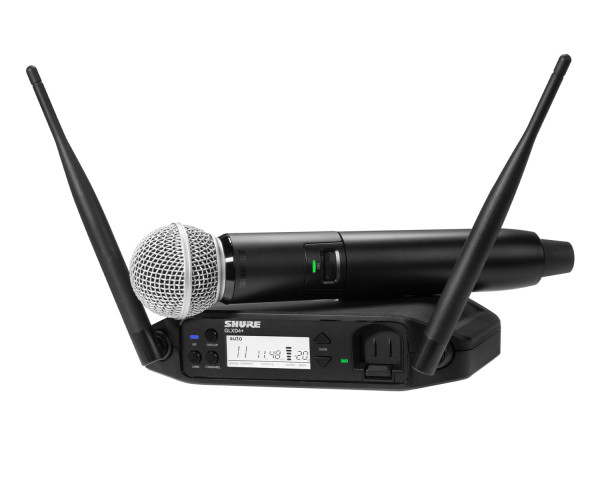

GLXD24+/SM58 Wireless Handheld System GLXD2+/SM58 Z4

Product Features

System Features

• Exceptional digital audio clarity
• Compatible with multiple legendary microphone options
• Automatically moves away from interference without audio interruption
• Operates in 2.4 and 5.8 GHz spectrum
• Rechargeable battery delivers up to 12 hours of runtime
• Rock-solid RF performance for multiple system installations
• License-free frequency range

GLXD4+ Receiver Features

• Tabletop Receiver
• Built-in Battery Charger Bay
• Fixed Antennas at Front

GLXD2+/SM58 Handheld Features

• Cardioid Dynamic Microphone
• Exceptional Digital Audio Clarity
• Rugged Metal Construction
• Included Rechargeable Battery Delivers up to 12 Hours of Runtime
• Capsule is not Interchangeable
• Range: up to 100 feet (30 meters)
• Handheld transmitter: fixed head

Product Specifications

System Specifications

• Transmit Mode:  Shure proprietary digital
• RF Output Power:  10 mW E.I.R.P. maximum
• Ambient Temperature Range:
  • Charging:  0°C (32°F) to 40°C (104°F)
  • Operating:  0°C (32°F) to 45°C (113°F)
• Polarity:  Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
• Audio Frequency Response:  20 Hz – 20 kHz
• Dynamic Range:  122 dB, A-weighted
• RF Sensitivity:  -88 dBm, typical
• Total Harmonic Distortion:  0.2%, typical
• Battery Life:  Up to 11.5 hours
• Channel Count:
  • Up to 4 typical, 8 optimal
  • 2.4 GHz only: Up to 4 typical, 5 optimal

 GLXD4+ Receiver Specifications

• Power Requirements:  14.5 V – 17 V, 600 mA (efficiency level VI power supply)
• Antenna Type:  Dual-band ½ Wave Sleeve Dipole, non-removable
• Dimensions
  • Antenna folded:  7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm)
  • Antenna opened:  7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm)
• Weight:  10.9 oz (310 g)
• Housing:  PC/ABS
• Spurious Rejection:  > 35 dB, typical
• Gain Adjustment Range:  -20 to 40 dB, 1 dB increments
• Phantom Power Protection:  Yes
• Audio Output:
  • Configuration
    • XLR Output:  Impedance balanced
    • 6.35 mm (1/4") output: Impedance balanced
  • Impedance
    • XLR Output:  100 Ω
    • 6.35 mm (1/4") output:  100 Ω (50 Ω, Unbalanced)
  • Maximum Audio Output Level
    • XLR connector:  +1 dBV
    • 6.35 mm (1/4") connector:  +8.5 dBV
  • Pin Assignments
    • XLR Output:  1=ground, 2=hot, 3=cold
    • 6.35 mm (1/4") connector:  Tip=audio, Ring=no audio, Sleeve=ground
• Receiver Antenna Input:
  • Impedance:  50 Ω
  • Maximum Input Level:  -20 dBm

GLXD2+ Handheld Specifications

• Dimensions:  9.69 in. (246 mm)
• Weight:  9.7 oz (275 g), without battery
• Housing:  Aluminium alloy, ABS plastic
• Maximum Input Level:  146 dB SPL

What's in the Box?

• 1 x GLXD4+ Tabletop Receiver
• 1 x GLXD2+/SM58 Handheld Transmitter
• 1 x PS43 Power Supply
• 1 x SB904 Lithium-Ion Rechargeable Battery
• 1 x Swivel Adapter
• 1 x Black Carrying Case
