GeNetix GN8 8-Port Ethernet-DMX Node for Art-Net / sACN Consoles

« return to previous page

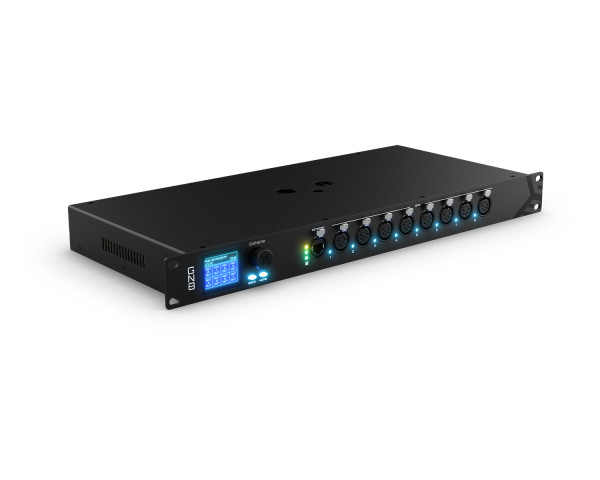

ChamSys GeNetix GN8 8-Port Ethernet-DMX Node for Art-Net / sACN Consoles - Main Image
ChamSys GeNetix GN8 8-Port Ethernet-DMX Node for Art-Net / sACN Consoles - Image 1
ChamSys GeNetix GN8 8-Port Ethernet-DMX Node for Art-Net / sACN Consoles - Image 2
ChamSys GeNetix GN8 8-Port Ethernet-DMX Node for Art-Net / sACN Consoles - Image 3
ChamSys GeNetix GN8 8-Port Ethernet-DMX Node for Art-Net / sACN Consoles - Image 4
Price:
RRP: £1,020.00 inc VAT
Code:
CHSGN8
Manufacturer Code:
CS300101
Brand:
ChamSys

Quantity required:

Main Features

  • 8 RDM DMX Ports supporting DMX Output
  • Supports Art-Net & sACN
  • Webserver for remote configuration
  • In-built display and encoder for local configuration
  • Configurable DMX Timing
  • Does not unlock ‘demo mode’ on MagicQ PC Systems
Share:

GeNetix GN8 8-Port Ethernet-DMX Node for Art-Net / sACN Consoles

GeNetix Node 8 is ideal for both installed and live applications that call for a straightforward Art-Net/sACN to DMX node solution.

This interface supports RDM, features configurable DMX timing, and can be remotely configured from ChamSys consoles via its in-built web server, or locally via the display on the unit. This versatile device is at home in many different environments whether truss-mounted in the rig via its M12 receiver or rack mounted via its rack ears.

Product Features

  • 8 RDM DMX Ports supporting DMX Output
  • Supports Art-Net & sACN
  • Webserver for remote configuration
  • In-built display and encoder for local configuration
  • Configurable DMX Timing
  • Does not unlock ‘demo mode’ on MagicQ PC Systems

Product Specifications

Hardware Specifications

  • RDM Direct DMX Ports:  8
  • Network Ports:  1
  • Kensington Security Lock Fixing:  Yes
  • Power Input:  PowerCON TRUE1 110 to 240 VAC
  • PowerCon TRUE1 Link Out:  Yes
  • Mains Powered:  Yes

Software Specifications

  • Art-Net/sACN:  Yes
  • ChamNet Support:  Yes
  • Configurable DMX Timings:  Yes
  • Web Server:  Yes
  • Unlock’s ‘demo mode’ MagicQ PC Systems:  No



Weights and Dimensions

  • Width:  480mm (18.9 inches)
  • Depth:  218mm (8.59 inches)
  • Height:  44.4mm (1.75 inches)
  • Weight:  2.70 KG (5.95 lb)

What's in the Box?

  • powerCON TRUE1 Power Cable
  • Quick Start Guide
