Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom

« return to previous page

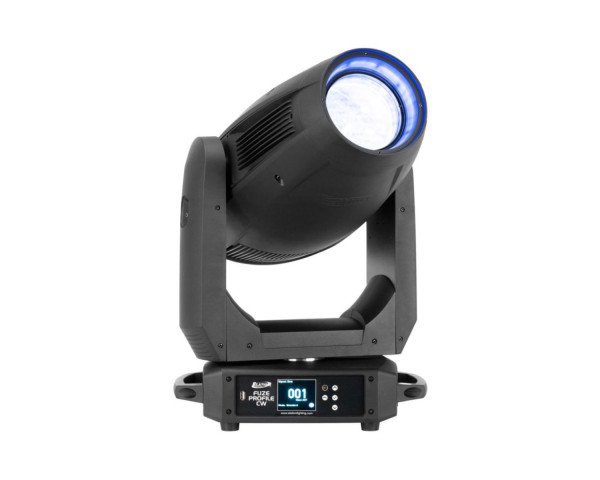

Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Main Image
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 1
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 2
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 3
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 4
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 5
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 6
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 7
Elation Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom - Image 8
Price:
RRP: £4,032.00 inc VAT
Code:
ELA0110
Manufacturer Code:
1237000210
Brand:
Elation

Quantity required:

Main Features

  • High Efficiency 380W White LED Engine, 91CRI
  • Dual Colour Wheel (Solids and Colour Corrections)
  • Rotating Gobo Wheel
  • Full Blackout Framing System
  • Iris and Frost
  • Wide Zoom Range from 9° to 43°
Share:

Fuze Profile CW Moving Head Cool White LED 305W 9-43° Zoom

The Fuze Profile CW™ is an automated LED framing fixture designed for tradeshows, stages, television and a wide array of AV event applications. The 91CRI 380W engine ensures accurate colour reproduction while delivering a powerful output of 11,000 lumens. Designed to illuminate objects like exhibits and banners, texture areas and keylight persons with its flat field and accurate framing, it has many practical applications where a fully automated ellipsoidal fixture is required. A rotating gobo wheel of breakups, two colour wheels featuring solid colours and correction filters plus an Iris round out its comprehensive feature set.

Product Features

  • High Efficiency 380W White LED Engine, 91CRI
  • Dual Colour Wheel (Solids and Colour Corrections)
  • Rotating Gobo Wheel
  • Full Blackout Framing System
  • Iris and Frost
  • Wide Zoom Range from 9° to 43°

Product Specifications

Source

  • 380W 6,000K White LED Engine
  • 30,000 Hour Average LED Life

Photometric Data

  • 11,200 Total Lumen Output
  • CRI:  91
  • Zoom Range:  9° - 43°
  • Beam Angle:  9.3° - 43.1°
  • Field Angle:  10.3° - 46.8°

Effects

  • Motorised Zoom
  • 4 Rotating Full Blackout Framing Blades, +/- 60° Index
  • Variable Frost Filter
  • Motorised Iris
  • Variable 16-bit Dimming Curve Modes
  • High-Speed Electronic Shutter and Strobe
  • Adjustable LED Refresh Rate Frequency
  • Pan Angle: 540°/630°
  • Tilt Angle: 270°

Colour

  • 2 Colour Wheels
  • 7 Solid Colours
  • 7 Colour Corrections and UV

Gobos

  • 1 Gobo Wheel
  • 7 Rotating / Indexing Interchangeable Glass Gobos

Control / Connections

  • 2 DMX Channel Modes (26 / 40)
  • 16-bit Pan, Tilt, and Dimming Control
  • Motorised Focus
  • DMX, RDM Protocol Support
  • 4-Button Touch Control Panel
  • Full Colour 180° Reversible LCD Menu Display
  • 16-bit Resolution Adjustable Movement
  • Hibernation Mode (Power Save)
  • 5-pin DMX In/Out
  • IP65 Locking Power Cable In/Out
  • With Wired Digital Communication Network

Electrical / Thermal

  • AC 100-240V – 50/60Hz
  • 590W Max Power Consumption
  • -10°C to 45°C (14°F to 113°F)
  • BTU/hr (+/- 10%): 2011.9

Size / Weight

  • Length: 408mm (15.9”)
  • Width: 252mm (9.9”)
  • Vertical Height: 698mm (27.4”)
  • Weight: 23.3kg (51.4 lbs.)
