Flex Pixel Driver1 Dedicated DMX Driver for 2 Flex Pixel Tapes

« return to previous page

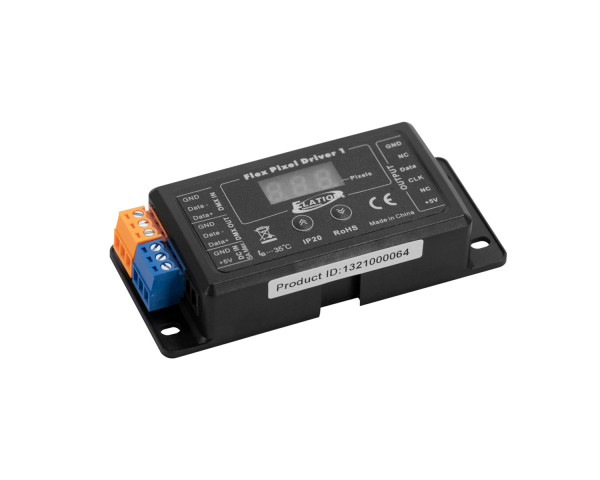

Elation Flex Pixel Driver1 Dedicated DMX Driver for 2 Flex Pixel Tapes - Main Image
Elation Flex Pixel Driver1 Dedicated DMX Driver for 2 Flex Pixel Tapes - Image 1
Elation Flex Pixel Driver1 Dedicated DMX Driver for 2 Flex Pixel Tapes - Image 2
Price:
RRP: £60.00 inc VAT
Code:
ELA0088
Manufacturer Code:
1321000064
Brand:
Elation

Quantity required:

Main Features

  • Professional Dedicated 5VDC LED Tape Driver
  • Supports Up To 144 Total Pixels / 432 DMX Channels
  • 2-Button LED Control Display
  • 6pin Terminal Block LED Tape Output
  • 3pin Terminal Block DMX In/Out
  • 2pin Terminal Block Power In
Share:

Flex Pixel Driver1 Dedicated DMX Driver for 2 Flex Pixel Tapes

The FLEX PIXEL DRIVER™ 1 is a professional dedicated 5VDC LED tape driver that supports up to 144 pixels, and up to 432 DMX channels of control. Its small compact design allows for easy mounting and integration into any system. It features a 2-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 6pin terminal block for LED tape output, and a 2pin terminal block for 5VDC power IN.

Flex Pixel Driver is a dedicated DMX driver for up to 144 Pixels / 2 Tapes / up to 432 DMX channels of control. It’s small, compact design allows for easy mounting and integration into your installation.

Product Features

  • Professional Dedicated 5VDC LED Tape Driver
  • Supports Up To 144 Total Pixels / 432 DMX Channels
  • 2-Button LED Control Display
  • 6pin Terminal Block LED Tape Output
  • 3pin Terminal Block DMX In/Out
  • 2pin Terminal Block Power In

Product Specifications

Control / Connections

  • Up To 144 Pixels Max
  • Up To 432 DMX Channels
  • DMX IN via 3pin Terminal Block
  • DMX OUT via 3pin Terminal Block
  • LED Tape Output via 6pin Terminal Block
  • POWER IN via 2pin Terminal Block

Approvals

  • CE | cETLus | RoHs | IP20

Size / Weight

  • Length:  3.5” (90mm)
  • Width:  1.6” (40mm)
  • Height:  0.8” (20mm)
  • Weight:  0.12 lbs. (0.055kg)

What's in the Box?

  • (1) Flex Pixel Tape Jumper First Cable
  • (1) Flex Pixel Tape Power Cable

Product Downloads
