EX-S10 10

Price:: RRP: £1,024.80 inc VAT
Code:: BIAEXS10UW
Manufacturer Code:: 911.1819.900
Brand:: Biamp

Main Features

Exceptional audio clarity with small footprint and attractive styling
Uniform coverage from coaxially mounted HF/LF drivers
Utilizes innovative ClickMount U-Brakcet for mounting
6-position switch selects 70 V/100 V taps or low impedance bypass
ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
EN54-24 and ISO 7240-24 certification

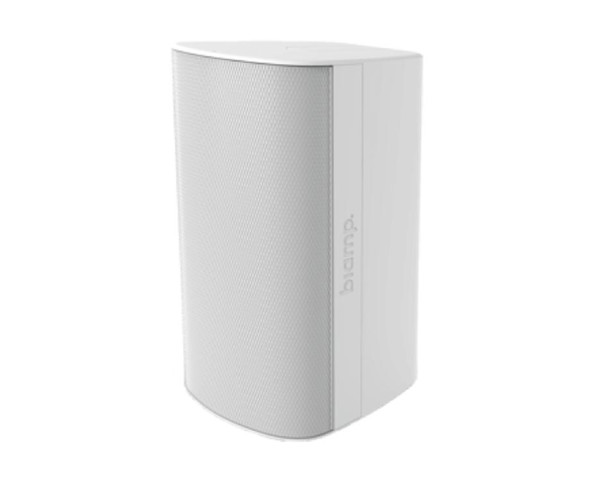

EX-S10 10" 2-Way Coaxial Surface-Mount Speaker U-Bracket White

The Desono EX-S10, the largest member of the EX Series, 10 inch two-way surface mount loudspeaker provides excellent musicality with deep LF extension. It’s perfectly suited as the front-of-house in small venues or used in distributed applications without subwoofers.

Designed for easy and fast installation, our innovative, patented ClickMount™ brackets provide installers with two distinct mounting options. The ClickMount U-Bracket is also available for low profile mounting or exterior use and includes the ClickPlug with an integrated gland nut for weather-resistant applications. Brackets are theft and tamper resistant.

Product Features

Exceptional audio clarity with small footprint and attractive styling
Uniform coverage from coaxially mounted HF/LF drivers
Utilizes innovative ClickMount U-Brakcet for mounting
6-position switch selects 70 V/100 V taps or low impedance bypass
ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS compliant
EN54-24 and ISO 7240-24 certification

Product Specifications

General

Operating Mode: Passive with selectable low-impedance or 70 V/100 V operation
Operating Environment: Indoor/Outdoor
Operating Range (-10dB): 48 Hz to 20 kHz
Nominal Beamwidth (H x V): 100° x 100°
Transducers:
- LF 1 x 10" (250 mm) treated paper cone
- HF 1 x 1.4" (35 mm) voice coil compression driver
Sensitivity: @ 1 m 91 dB (2.83 V) 91 dB (1 W, 8 Ω)
Nominal Continuous Power Handling: 49 V (300 W, 8 Ω Nominal Impedance)
Nominal Maximum SPL (Processed):
- @ 1 m
- Continuous: 118 dB
- Peak: 124 dB
Rated Continuous Voltage: 45.7 V (33 dBV)
Rated Maximum SPL (Processed):
- @ 1 m
- Continuous: 114 dB
- Peak: 126 dB
Transformer: 70 V: 120 W, 60 W, 30 W, 15 W; 100 V: 120 W, 60 W, 30 W
Crossover / Protection: 1.48 kHz crossover, driver protection circuitry
Required Accessories: 48 Hz, 18 dB / oct. Butterworth high pass filter; DSP preset
Recommended Amplifiers: 300 W - 600 W, 8 Ω (49 V - 69 V)
Input Connection: Lever-actuated wire clamping 4-position terminal block with pass-through
Controls: Wattage / low impedance selector switch
Mounting Provisions: ClickMount U-bracket
Compliance:
- ETL listed to comply with UL 1480A,
- CSA STD C22.2# 62368-1
- EN54-24, ISO 7240-24, IEC 62368-1
Environmental Rating:
- IP54 per IEC 60529, IEC 60068-2-5 (Solar Radiation),
- IEC 60068-2-11 (Salt Mist), IEC 60068-2-42 (SO2),
- IEC 60068-2-60 (Chlorine)
