Main Features
*B-GRADE*
90' x 50' Coverage, rotatable for use in either vertical or horizontal orientation.
Large PT Progressive Transition Waveguide for excellent pattern control with low distortion.
Bi-Amp/Passive Switchable.
Optional U-Bracket for easy installation (see AE Series Bracket Guide).

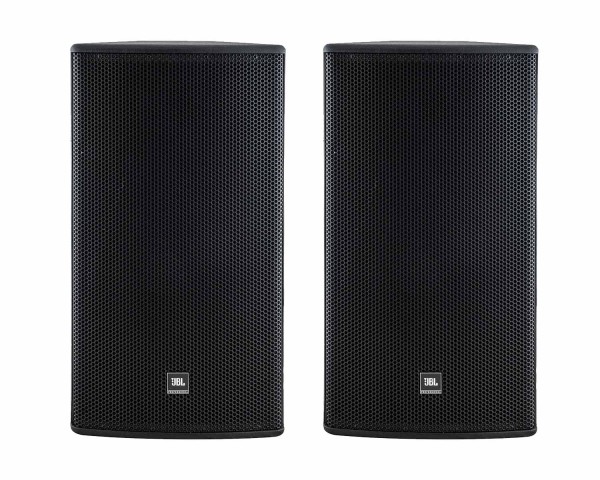

AM4215/95 15" AE-Series Loudspeaker - 90° x 50° (EX-DEMO)
AM4215/95 is a medium power 2-way full-range loudspeaker system comprised of one 380 mm (15 in) low frequency driver and one 38 mm (1.5 in) exit/38 mm (1.5 in) voice-coil compression driver. The large PT Progressive Transition waveguide provides well-controlled 90° by 50° coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances array ability.
The cabinet is fitted with M10 threaded suspension points. Optional U-bracket is available for easy installation.
AM4215/95 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
*EX-DEMO* product may show signs of use and minor cosmetic damage unless stated otherwise.
Product Features
*B-GRADE*
90° x 50° Coverage, rotatable for use in either vertical or horizontal orientation.
Large PT™ Progressive Transition™ Waveguide for excellent pattern control with low distortion.
Bi-Amp/Passive Switchable.
Optional U-Bracket for easy installation (see AE Series Bracket Guide).
M10 threaded suspension points.
Finished in black
Product Specifications
General
Frequency Range: (-10 dB): 40 Hz – 20 kHz
Frequency Response: (±3 dB): 45 Hz – 18 kHz
Coverage Pattern: 90° x 50°, rotatable waveguide
Directivity Factor (Q): 12.6
Directivity Index (DI): 11 dB
Crossover Modes: Bi-amp/Passive switchable
Passive Crossover Slopes: 4th order (24 dB/oct) Linkwitz-Riley HP & LP, 1.3 kHz
Transducer Power Rating (AES)
LF: 500 W (2000 W peak), 2 hrs
LF: 350 W (1400 W peak), 100 hrs
HF: 35 W (140 W peak), 2 hrs
Long-Term System Power Rating (IEC): Passive mode: 350 W (1400 W peak), 100 hrs
Maximum SPL
Bi-amp mode
LF: 124 dB-SPL cont avg (130 dB peak)
HF: 128 dB-SPL cont avg (134 dB peak)
Passive mode
124 dB-SPL cont avg (130 dB peak)
System Sensitivity (1W @ 1m): Passive mode: 97 dB SPL
Low Frequency Driver: 1 x JBL 2033H 380 mm (15 in ) driver with 75 mm (3 in) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m, within operational band): 97 dB SPL
High Frequency Driver: JBL 2407H/MTA, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
Nominal Impedance: 8 ohms
Sensitivity (1W @ 1m): 113 dB SPL
Waveguide: PT-H95HF
Physical & Dimensions
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
Dimensions (vertical cabinet orientation): H x W x D in 783 x 422 x 504 mm
