EW-DX SK / SKM-S BASE SET DUAL Bpack/Hheld System (S1-10) CH38

« return to previous page

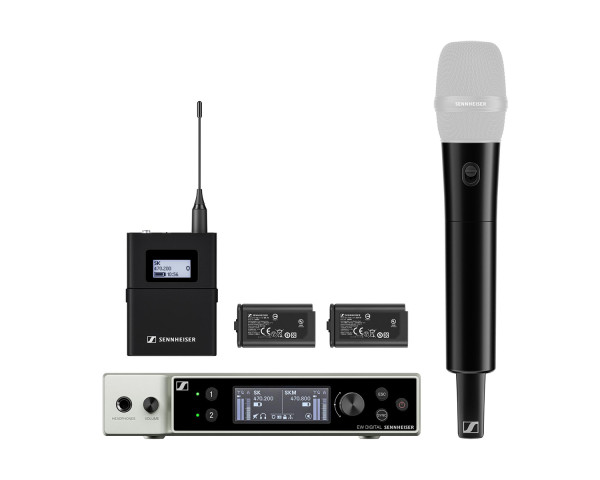

Sennheiser EW-DX SK / SKM-S BASE SET DUAL Bpack/Hheld System (S1-10) CH38 - Main Image
Price:
RRP: £2,100.00 inc VAT
Code:
SENEWDXBAS38
Manufacturer Code:
509464
Brand:
Sennheiser

Quantity required:

Main Features

  • Consists of EW-DX SKM-s, EW-DX SK, EW-DX EM 2, 2 x BA 70
  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • 606.2 - 693.8 MHz
Share:

Sennheiser EW-DX SK / SKM-S BASE SET Bodypack / Handheld Mic (S1-10) CH38

Wireless bodypack base set consisting of 1 x EW-DX SKM-S (handheld with mute switch), 1 x EW-DX SK (wireless bodypack transmitter), 1 x EW-DX EM 2 rackmount receiver (2 channels) and 2 x BA 70 rechargeable batteries. Microphone capsules are sold separately.

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live productions benefit from a network-ready system that is designed to integrate seamlessly. The system quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and switching bandwidth up to 88 MHz are only a few more of the many features that make EW-DX the right tool for the job.

Flexibility for Those Who Want to Choose the Capsule That Best Meets Their Needs.

Base Set for digital wireless applications featuring 2-channel receiver, handheld and bodypack transmitter for use with a wide range of Evolution Wireless Digital microphone heads.

The NT 12-35 CS PSU with an EW-D power distribution cable can power up to 4 dual receivers.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Product Features

  • 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
  • Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
  • Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
  • Secure transmission of confidential content using AES 256 encryption
  • Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
  • Function buttons - control all the transmitter settings directly from the handheld and bodypack including button lock function
  • Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
  • Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
  • Up to 88 MHz switching bandwidth
  • Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
  • Digital audio trim
  • Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
  • Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
  • Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection (sold separately)
  • Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
  • Worldwide usage (specific frequencies subject to local RF regulations)

EW-DX EM 2

  • 2 channel half rack (9.5’)
  • Up to 88 MHz switching bandwidth
  • PoE IEEE 802.3af Class 3
  • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
  • Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
  • Clear and easy focused user interface with OLED display
  • Ethernet connectivity (IPv4 and IPv6)
  • Secure AES 256 encryption
  • External PSU 12V/1A
  • All-metal housing

EW-Dx SKM-S

  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
  • Function buttons - control all the transmitter settings directly from handheld microphone
  • Extended runtime with lithium-ion batteries - up to 12 hours operation time
  • Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
  • Mic input trim control
  • Metal housing

EW-DX SK

  • 3,5 mm jack or 3-pin connector variants
  • 10mW RF power with up to 100m/328ft working range
  • Charging contacts for in-device charging with CHG 70N
  • Persistent eInk display - parameters visible on screen even when device is not powered on
  • Programmable mute switch - customize the device depending on your professional needs
  • Extended runtime with lithium ion batteries - up to 12 hours operation time
  • Mic input trim control
  • Metal housing

Product Specifications

System

  • Audio link frequency ranges:
    • Q1-6:  470.2 - 526 MHz
    • R1-6:  520 - 576 MHz
    • R4-9:  552 - 607.8 MHz
    • S1-7:  606.2 - 662 MHz
    • S4-7:  630 - 662 MHz
    • S7-10:  662 - 693.8 MHz
    • U1/5:  823.2 - 831.8 MHz & 863.2 - 864.8 MHz
    • V3-4:  925.2 - 937.3 MHz
    • Y1-3:  1785.2 - 1799.8 MHz
  • Bluetooth® Low Energy (BLE) frequency range:  2402 - 2480 MHz
  • Audio frequency response:
    • 20 Hz - 20 kHz (-3 dB)
    • @ 3 dBfs
  • Audio THD:
    • ≤ -60 dB for 1 kHz
    • @ -3 dBfs input level
  • Dynamic range:  134 dB
  • System latency:  1.9 ms
  • Operating temperature:  -10 °C - +55 °C (14 °F - 131 °F)
  • Relative humidity:  5 - 95 % (non-condensing)

 EW-DX EM 2 (Rack Receiver)

  • Input voltage:  11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
  • Input current:  ≤ 1 A
  • Transmit power (radiated):  BLE: max. 10 mW EIRP
  • Audio output power:  18 dBu max.
  • Headphone output:  2x 70 mW @ 32 Ω
  • Ethernet:
    • RJ-45 socket, IEEE802.3
    • 100Base-TX (half+full duplex)
    • 10Base-T (half+full duplex)
    • (CAT5e or higher)
  • Dimensions:  212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
  • Weight:  approx. 1000 g (2.2  lbs) (without antennas and power supply)

EW-DX SKM-S (Handheld Transmitter)

  • Input voltage:  2.0 - 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):
  • Audio link: 10 mW ERP
  • (Range Y1-3: 12 mW ERP)
  • BLE: max. 10 mW EIRP
  • Dimensions (ø x l)
  • (incl. MMD  835 microphone module):  50 x 268 mm (1.97" x 10.55")
  • (without microphone module):  40 x 200 mm (1.57" x 7.87")
  • Weight:
  • (without batteries) (incl. MMD  835 microphone module):  approx. 304 g (0.67 lbs)
  • (without microphone module):  approx. 195 g (7.14 lbs)

EW-DK SK (Bodypack Transmitter)

  • Input voltage:  2.0 - 4.35 V
  • Input current:  < 300 mA
  • Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
  • Occupied bandwidth:  200 kHz
  • Transmit power (radiated):
    • Audio link: 10 mW ERP
    • (Range Y1-3: 12 mW ERP)
    • LD mode: 10 mW ERP
    • BLE: max. 10 mW EIRP
  • Dimensions (without antenna):  63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
  • Weight (without batteries):   approx. 115-120 g (0.26- 0,27 - lbs)

What's in the Box?

  • EW-DX EM 2 rack receiver
  • EW-DX SKM-S handheld transmitter
  • EW-DX SK bodypack transmitter
  • EW-D Power Supply with country adapters
  • 2 BA 70 rechargeable battery packs
  • MZQ 1 microphone clamp
  • 2 rod antennas
  • GA 3 rack mount Kit
  • 4 rubber feet
