EW-DX MKE 2 / 835-S SET DUAL Lapel/Handheld Mic Syst (S1-10) CH38

Product Features

EW-DX EM 2

• 2 channel half rack (9.5’)
• Up to 88 MHz switching bandwidth
• PoE IEEE 802.3af Class 3
• Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
• Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6)
• Secure AES 256 encryption
• External PSU 12V/1A
• All-metal housing

EW-Dx SKM-S

• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
• Function buttons - control all the transmitter settings directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12 hours operation time
• Standard capsule interface - compatible with a wide range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing

EW-DX SK

• 3,5 mm jack or 3-pin connector variants
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen even when device is not powered on
• Programmable mute switch - customize the device depending on your professional needs
• Extended runtime with lithium ion batteries - up to 12 hours operation time
• Mic input trim control
• Metal housing

Product Specifications

System

• Audio link frequency ranges:
  • Q1-9:  470.2 - 550 MHz
  • R1-9:  520 - 607.8 MHz
  • S1-10:  606.2 - 693.8 MHz
  • S2-10:  614.2 - 693.8 MHz
  • S4-10:  630 - 693.8 MHz
  • U1/5:  823.2 - 831.8 MHz & 863.2 - 864.8 MHz
  • V3-4:  925.2 - 937.3 MHz
  • V5-7:  941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
  • X1-6:  1350.2 - 1398.8 MHz
  • X9-18:  1435.2 - 1524.8 MHz
  • Y1-3:  1785.2 - 1799.8 MHz
• Bluetooth® Low Energy (BLE) frequency range:  2402 - 2480 MHz
• Audio frequency response:  20 Hz - 20 kHz (-3 dB)
• Audio THD:
  • ≤ -60 dB for 1 kHz
  • @ -3 dBfs input level
• Dynamic range:  134 dB
• System latency:  1.9 ms
• Operating temperature:  -10 °C - +55 °C (14 °F - 131 °F)
• Relative humidity:  5 - 95 % (non-condensing)

 EW-DX EM 2 (Rack Receiver)

• Input voltage:  11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
• Input current:  ≤ 1 A
• Transmit power (radiated):  BLE: max. 10 mW EIRP
• Audio output power:  18 dBu max.
• Headphone output:  2x 70 mW @ 32 Ω
• Ethernet:
  • RJ-45 socket, IEEE802.3
  • 100Base-TX (half+full duplex)
  • 10Base-T (half+full duplex)
  • (CAT5e or higher)
• Dimensions:  212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
• Weight:  approx. 1000 g (2.2  lbs) (without antennas and power supply)

MMD 835 (Microphone Module)

• Transducer principle:  dynamic
• Sensitivity:  2.1 mV/Pa
• Sound pressure level:  154 dB SPL
• Pick-up pattern:  cardioid

EW-DX SKM-S (Handheld Transmitter)

• Input voltage:  2.0 - 4.35 V
• Input current:  < 300 mA
• Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth:  200 kHz
• Transmit power (radiated):
  • Audio link: 10 mW ERP
  • (Range Y1-3: 12 mW ERP)
  • LD mode: 10 mW ERP
  • BLE: max. 10 mW EIRP
• Dimensions (ø x l)
  • (incl. MMD  835 microphone module):  50 x 268 mm (1.97" x 10.55")
  • (without microphone module):  40 x 200 mm (1.57" x 7.87")
• Weight (without batteries)
  • (incl. MMD  835 microphone module):  approx. 304 g (0.67 lbs)
  • (without microphone module):  approx. 195 g (7.14 lbs)

EW-DX SK (Bodypack Transmitter)

• Input voltage:  2.0 - 4.35 V
• Input current:  < 300 mA
• Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth:  200 kHz
• Transmit power (radiated):
  • Audio link: 10 mW ERP
  • (Range Y1-3: 12 mW ERP)
  • LD mode: 10 mW ERP
  • BLE: max. 10 mW EIRP
• Dimensions (without antenna):  63.5 x 85 x 20 mm (2.5" x 3.35" x 0.79")
• Weight (without batteries):  approx. 115-120 g (0.26- 0,27 – lbs)

MKE 2

• Frequency response (Microphone): 20 - 20000 Hz +- 3 dB
• Transducer principle (Microphone): pre-polarised condenser microphone
• Connection cable: 3.5mm Jack
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa +- 3 dB
• Nominal impedance: 1000 Ω
• Min. terminating impedance: 4700 Ω
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB
• Maximum sound pressure level (passiv): 142 dB
• Current consumption: ca. 250 µA
• Operating voltage (stand alone): 7,5 V

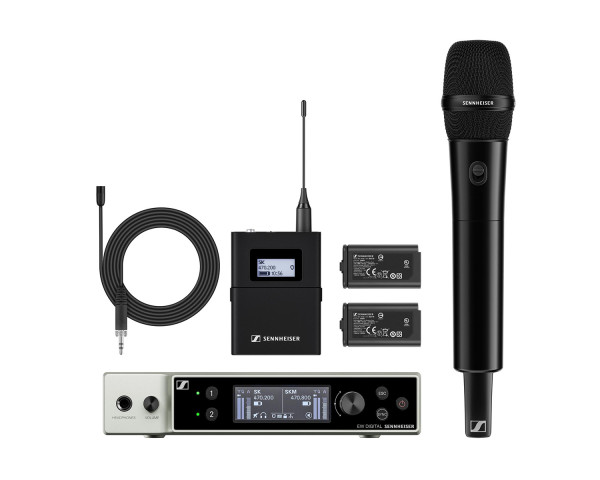

What's in the Box?

• EW-DX EM2 rack receiver
• EW-DX SK bodypack transmitter
• EW-DX SKM-S handheld transmitter
• MKE 2 lavalier microphone
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• Power supply with country adapters
• GA 3 rackmount set
• 4 rubber feet
• 2 BA 70 rechargeable battery packs
• Quick guide
• Safety guide
• Manufacturer declaration sheet
